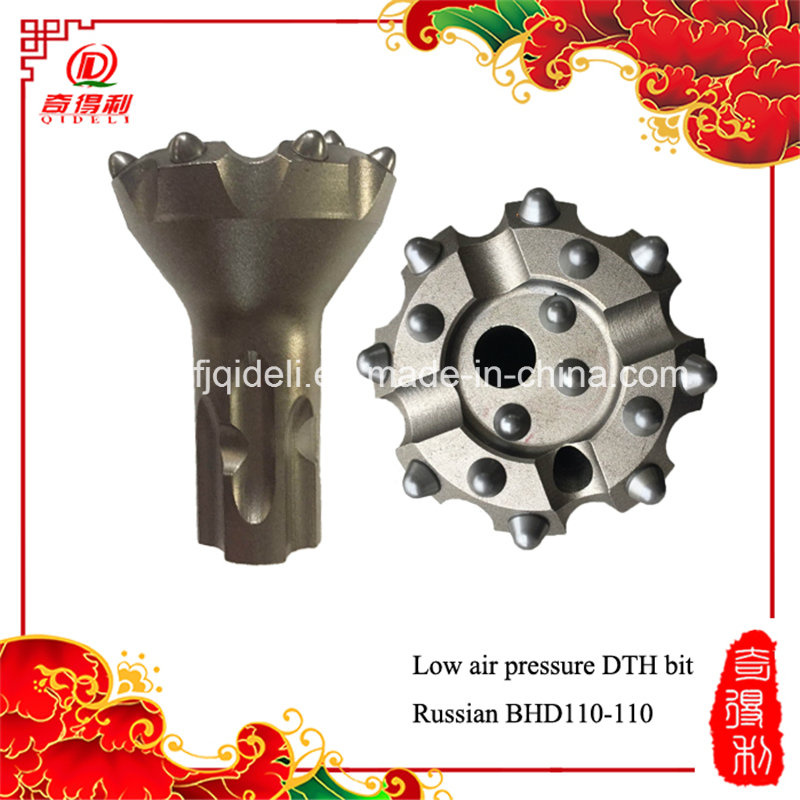

RUSSIAN TYPE DTH HAMMER 110P, 130P:
Specification | BHD110P hammer | BHD130P hammer |
Cylinder diam.mm | 98 | 112mm |
Length (less bit) | 663 | 655mm |
Top adapter nominal diam. | 72x10mm double thread | 72x10mm double thread |
DTH bit range | 110-130mm | 125-150mm |
DELIVERY
- We can deliver in 2-3 days if we have products in stock, special design and customize products need 20-30 days.
- We can delivery according to customers' requirement, by sea, by air or express. We have long cooperation with DHL, TNT, EMS, UPS, FedEx.
- Standard export packing. Wooden boxes, plastic boxes, carton packing, all with anti-collision foam.
OUR MAIN PRODUCTS

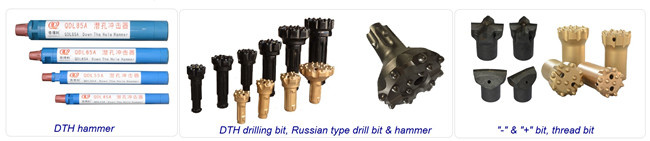

DTH hammer:
3'' DTH hammer: DHD3.5, COP34, COP32, MISSION 30, BR3, MACH303.
4" DTH (down-the-hole) hammer: DHD340/COP44, COP42, QL40, SD40, MISSION 40, XL40, MACH44.
5" DTH (down-the-hole) hammer: DHD350/COP54, COP52, QL50, SD5, MISSION50, XL5.
6" DTH (down-the-hole) hammer: DHD360/COP64, COP62, QL60, SD6, MISSIO60, XL6.
8" DTH (down-the-hole) hammer: DHD380, QL80, SD8, MISSION80
DTH hammer bits:
3" DTH hammer bits (90-105mm), shanks: DHD3.5, COP34, COP32, MISSION 30, BR3, MACH303.
4" DTH hammer bits (105-130mm), shanks: DHD340/COP44, COP42, QL40, SD40, MISSION 40, XL40, MACH44.
5" DTH hammer bits (130-152mm), shanks: DHD350/COP54, COP52, QL50, SD5, MISSION50, XL5.
6" DTH hammer bits (152-171mm), shanks: DHD360/COP64, COP62, QL60, SD6, MISSIO60, XL6.
8" DTH hammer bits (200-305mm), shanks: DHD380, QL80, SD8, MISSION80
DTH rod range:
Drill rods diameter range: 76mm, 89mm, 102mm, 114mm, 127mm
Length: 1000mm, 1500mm, 2000mm, 3000mm, 4500mm, 6000mm, 7620mm, 8100mm, 9140mm, 10670mm
Thread: API IF2 3/8", API REG2 3/8", API IF2 7/8", API REG2 7/8", API IF3 1/2", API REG3 1/2"
OEM SERVICE
As an original equipment manufacturer, drilling tools from QIDELI meet the highest engineering standards in order to be productive in the toughest working environments.
We are continuously improving our service offering to meet the market demand. Please contact us to find out which model is available on your market.

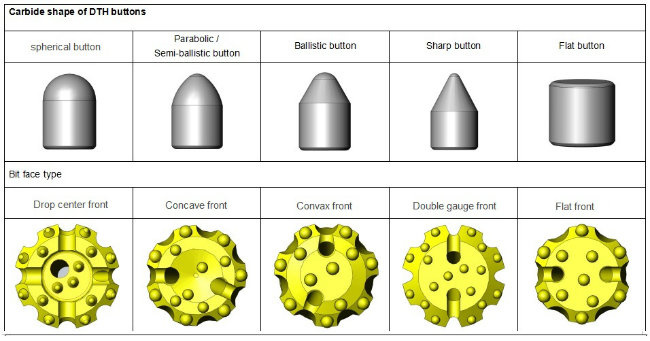

Down-the-hole bits:
Flat front:
Applications: hard and abrasive formations, all-around.
Typical formations: granite, hard limestone, basalt.
Speed bit:
Applications: medium hard to hard and abrasive formations. For higher productivity.
Design feature: ballistic buttons in front.
Convex front, ballistic
Applications: soft to medium hard rock. Non-abrasive formations. High penetration rate.
Typical formations: limestone, hard limestone, shale.
Concave front:
Applications: Medium hard to hard formations. Less abrasive, fractured formations. Excellent control over hole deviation.
Design feature: HD - larger gauge buttons. DGR - double (overlapping) gauge row. Only from 8".
Typical formations: Granite, hard limestone, basalt.
Rocket bit
Applications: Soft to medium hard formations. For exceptional productivity. Fractured rock.
Design feature: Spherical buttons for hard and abrasive formations. Ballistic buttons for soft formations.
Typical formations: Limestone, hard limestone.
