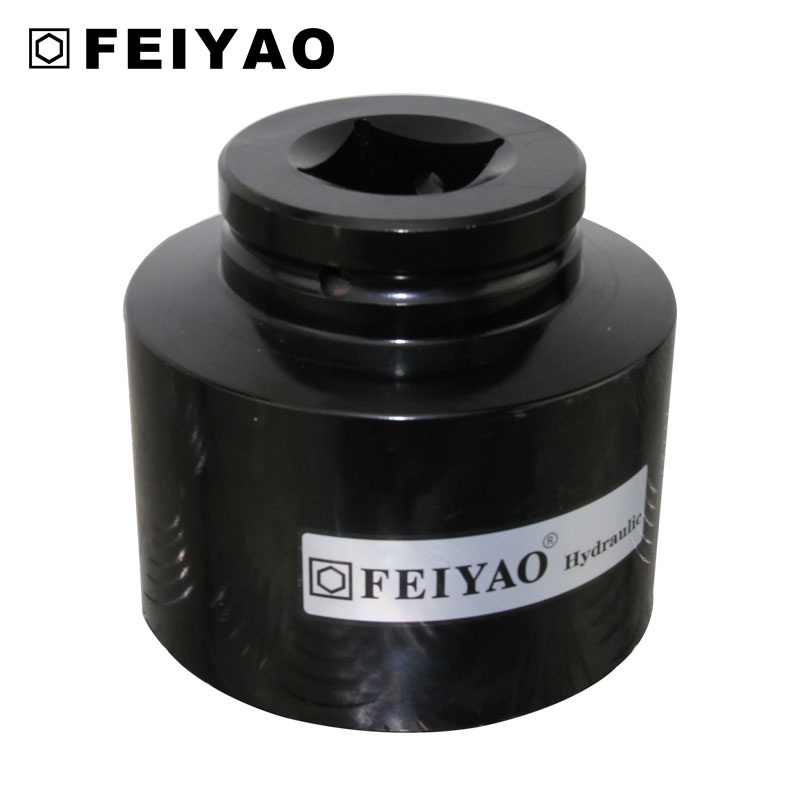

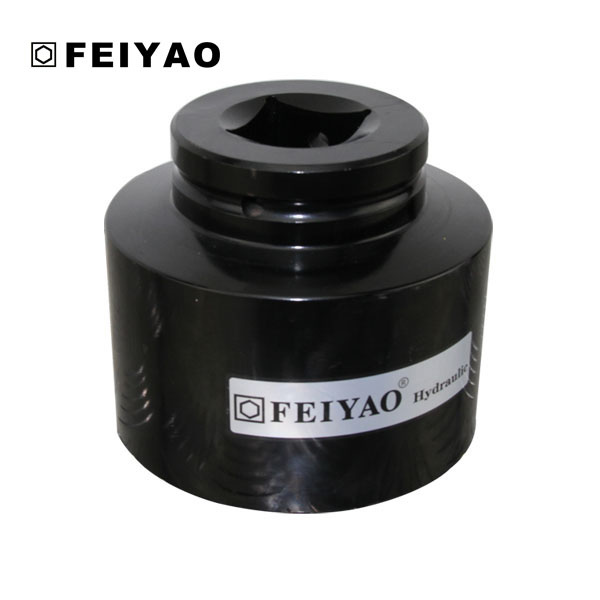

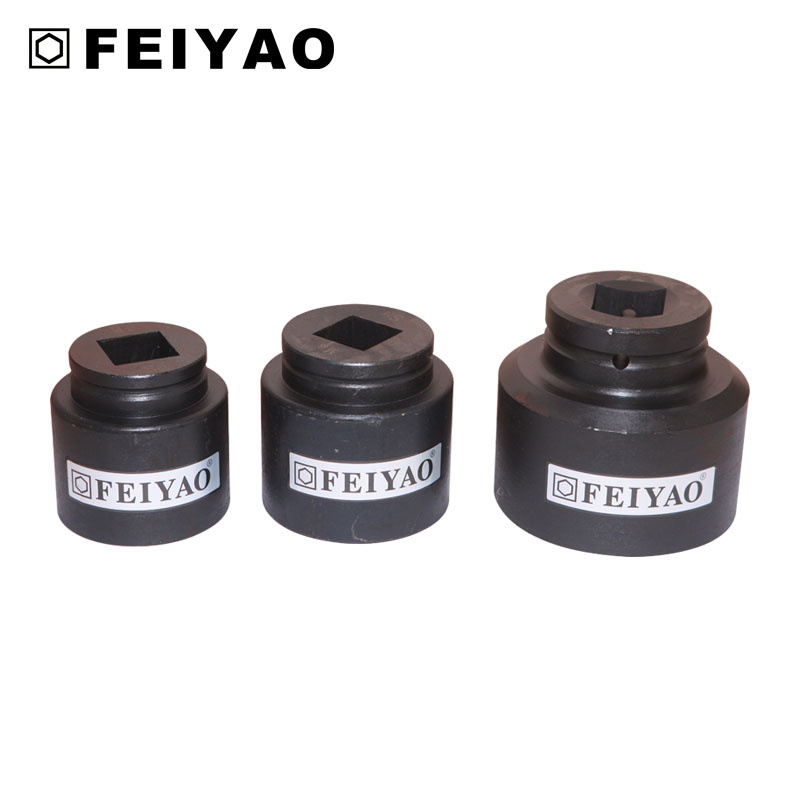

S Series Socket for Square Drifve Hydraulic Torque Wrench

Prod Model:	FY-S24
Nut Size:	24-165mm
Bolt Size(M):	16-115m
Color:	Black

Product Description

S Series Socket For Square Drifve Hydraulic Torque Wrench


Features:

1. It's raw material is Senior ChromiumMolybdenum alloy steel.

2. The sockets are made under Germany DIN standard (3121&3129).

3. It adopts standard heattreatment and ensures lifelong warranty.

4. We can customize imperial or all kinds of nonstandard sockets according to your requirement.
Company Introduction

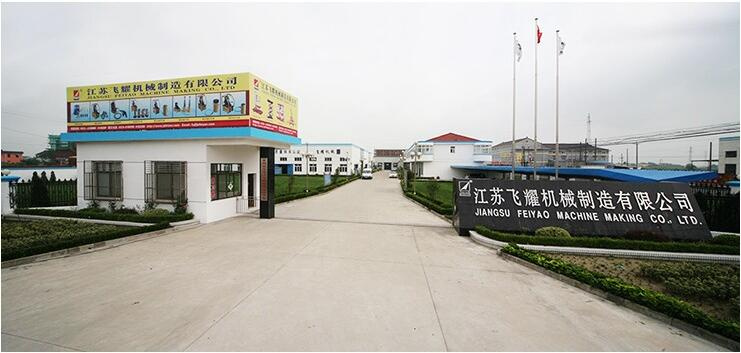

Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.
Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
PLC synchronous lifting system;
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic bolt tensioners;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE; 2. STROKE; 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.

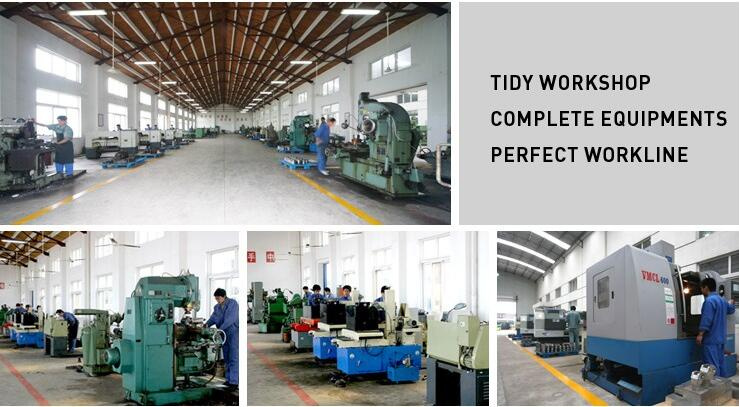

Factory Show

FAQ
Q1: How to contact sales?
A1: Please email or call: +86-1180-3679-7771 for pre-sales.
Q2: How to make payment?
A2: Once order confirmed, we will prepare proforma invoice with our banking details.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock, if stock available, only take 2-3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.
Q6: What is the warranty?
A6: 12 months against B/L date.

Contact Us
Jiangsu Feiyao Machinery Manufacturing Co., Ltd
Contact Person: Miss. Bella
Tel: +86-180-3679-7771
Web: www.fyhydraulic.com

Parameter information
3/4"Square Hole ( FY-2MXTA)

power head	bolt size M	Nut size (mm)	L1	L2	D1	D2
FY-S24-F19	M16	24	54	32	40	40
FY-S27-F19	M18	27	54	32	42	42
FY-S30-F19	M20	30	54	33	46	44
FY-S34-F19	M22	34	54	32	48	44
FY-S36-F19	M24	36	57	32	53	44
FY-S41-F19	M27	41	58	33	60	44
FY-S46-F19	M30	46	63	36	66	44
FY-S50-F19	M33	50	65	40	71	44
FY-S55-F19	M36	55	70	45	77	54

1"Square Hole ( FY-5MXTA)

power head	bolt size M	Nut size (mm)	L1	L2	D1	D2
FY-S34-F25	M22	34	59	32	58	58
FY-S36-F25	M24	36	62	32	59	59
FY-S41-F25	M27	41	65	38	67	54
FY-S46-F25	M30	46	65	38	74	54
FY-S50-F25	M33	50	70	43	79	60
FY-S55-F25	M36	55	80	52	84	60
FY-S60-F25	M39	60	85	57	89	60
FY-S65-F25	M42	65	85	58	98	70
FY-S70-F25	M45	70	90	62	104	70
FY-S75-F25	M48	7	95	65	108	70

   1 −1⁄2" Square Hole (FY−8, 10, 16, 20 MXTA)

power head	bolt size M	Nut size (mm)	L1	L2	D1	D2
FY-S27-F38	M27	41	85	44	74	74
FY-S46-F38	M30	46	85	44	74	74
FY-S50-F38	M33	50	90	45	79	79
FY-S55-F38	M36	55	90	45	84	84
FY-S60-F38	M39	60	100	45	94	94
FY-S65-F38	M42	65	100	45	98	80
FY-S70-F38	M45	70	105	50	104	80
FY-S75-F38	M48	75	110	50	118	85
FY-S80-F38	M52	80	115	55	118	90
FY-S85-F38	M56	85	125	60	128	90
FY-S90-F38	M60	90	125	60	139	90
FY-S95-F38	M64	95	130	65	139	90
FY-S100-F38	M68	100	135	70	144	90
FY-S105-F38	M72	105	135	70	149	90
FY-S110-F38	M76	110	135	70	158	90
FY-S115-F38	M80	115	135	70	159	90
FY-S120-F38	M85	120	135	70	168	95
FY-S130-F38	M90	130	155	93	189	95

   2−1⁄2" Square Hole  (FY−27, 39, 50, 60 MXTA )

power head	bolt size M	Nut size (mm)	L1	L2	D1	D2
FY-S55-F63	M33	55	100	57	86	114
FY-S60-F63	M39	60	100	52	119	119
FY-S65-F63	M42	65	100	52	119	119
FY-S70-F63	M45	70	120	67	128	128
FY-S75-F63	M48	75	120	67	128	128
FY-S80-F63	M52	80	130	71	128	128
FY-S85-F63	M56	85	130	71	128	129
FY-S90-F63	M60	90	140	73	139	139
FY-S95-F63	M64	95	140	73	139	139
FY-S100-F63	M68	100	140	81	149	130
FY-S105-F63	M72	105	150	89	149	130
FY-S110-F63	M76	110	150	90	158	130
FY-S115-F63	M80	115	150	98	168	130
FY-S120-F63	M85	120	150	98	178	130
FY-S130-F63	M90	130	170	98	188	130
FY-S135-F63	M95	135	170	114	198	130
FY-S145-F63	M100	145	170	122	210	152
FY-S150-F63	M105	150	190	140	216	152
FY-S155-F63	M110	155	190	140	229	152
FY-S165-F63	M115	165	190	140	241	152
