S Series Sockets for Square Drifve Hydraulic Torque Wrench
| Price: |
US $ 15-180/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
FY-S24 |
| Max.Head: |
>150m |
| Max.Capacity: |
>400 L/Min |
| Pressure Medium: |
Oil |
| Position Of Pump Shaft: |
Horizontal |
| Certification: |
Ce, ISO |
| Type: |
Socket Wrench |
| Material: |
Carbon Steel |
| Standard: |
European Type |
| Feature: |
Ordinary |
| Brand: |
Feiyao |
| Working Mode: |
Hydraulic Automatic |
Product Description

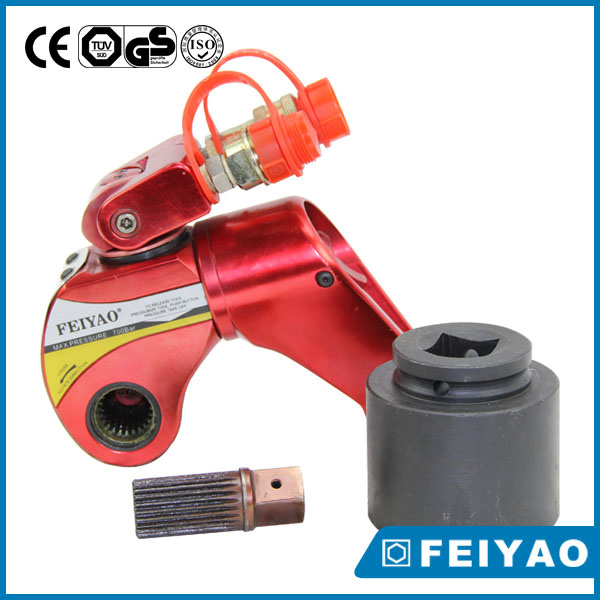

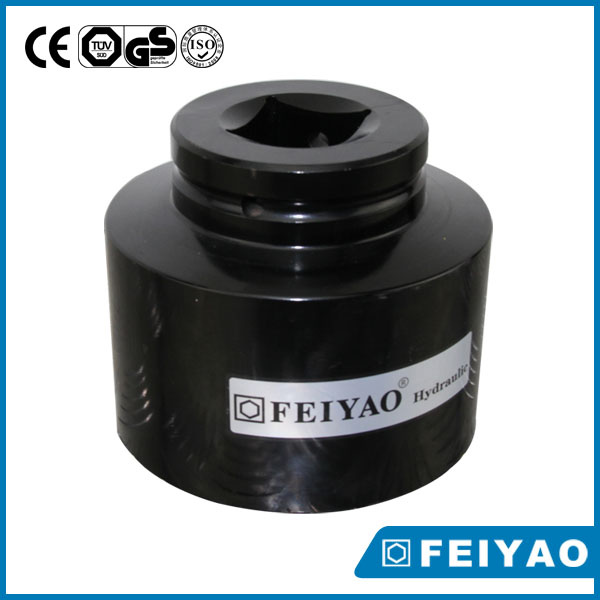

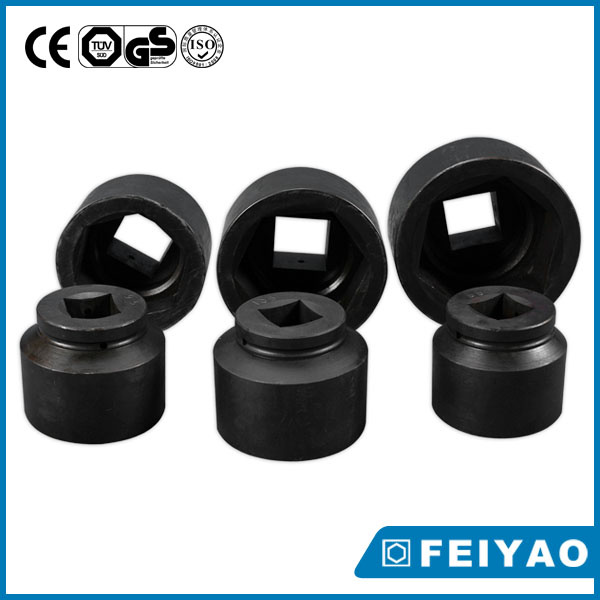

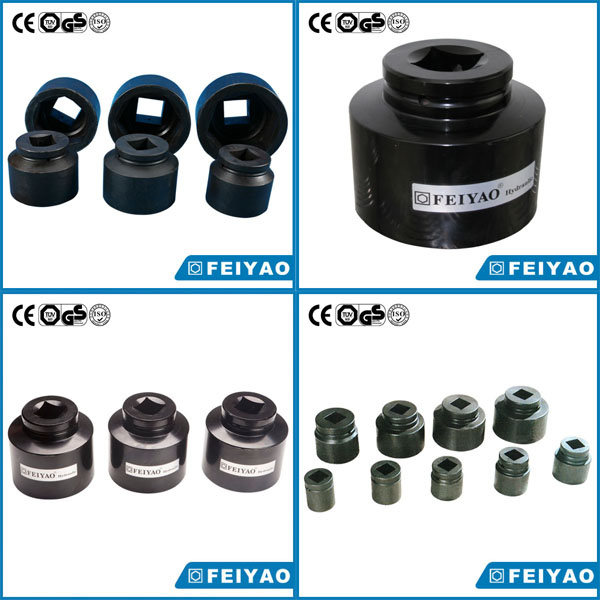

Sockets for Square Drifve Hydraulic Torque Wrench
Features:1. It's raw material is Senior Chromium-Molybdenum alloy steel.
2. The sockets are made under Germany DIN standard (3121&3129).
3. It adopts standard heat-treatment and ensures life-long warranty.
4. we can customize imperial or all kinds of nonstandard sockets according to your requirement.
The description of sockets for square drifve hydraulic torque wrench

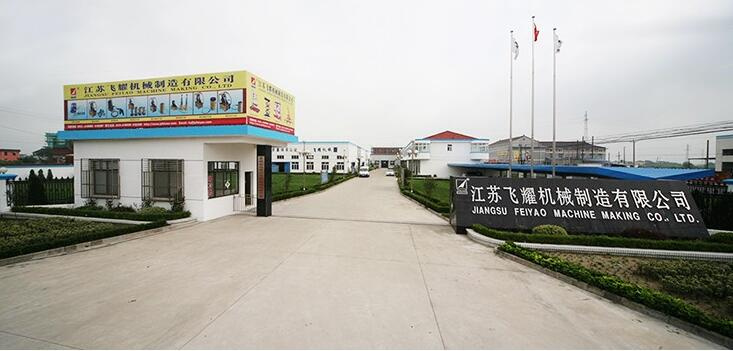

Company Description:

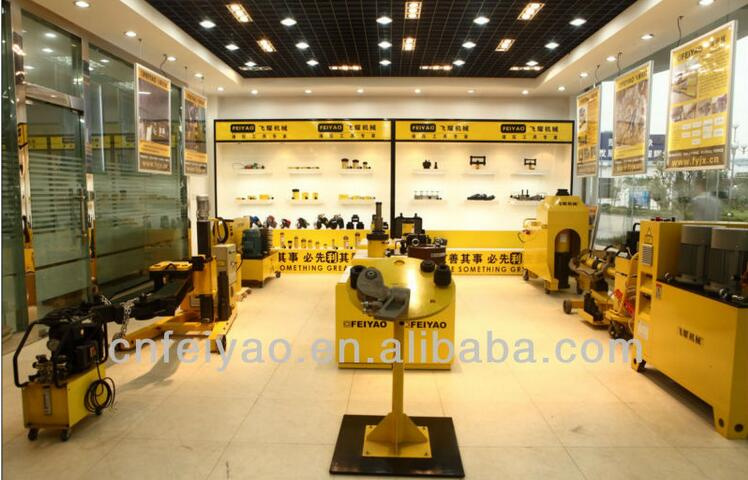

Established in 2004, Jiangsu Feiyao Machinery Manufacturing Factory is a professional leading manufacturer of hydraulic tools in China. such as hydraulic torque wrench, hydraulic cylinders, hydraulic nut splitter, hydraulic gear pullers, hydraulic pumps, etc. Our products have been widely sold to Europe, South-east Asia and South Africa, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please remember our company is always your reliable friends. Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates. We warmly welcome all overseas customers to talk with us about business or other cooperations. Any phone call, E-mail, fax from you would be a beginning of happy cooperation.If you have any questions about these products , please contact us ,we will try our best to help you ! Showroom
Certification
CONTACT US
Contact Information
Sales Manager:Angela Zhang
Tel: +86-523-86183388
Fax: +86-523-86186999
Mobile: +86 18036786358
Facebook:+86 18036786358
IMO: 0086 18036786358
Web: www.fyhydraulic.com
Parameter information3/4"Square Hole ( FY-2MXTA)
| power head | bolt size M | Nut size (mm) | L1 | L2 | D1 | D2 |
| FY-S24-F19 | M16 | 24 | 54 | 32 | 40 | 40 |
| FY-S27-F19 | M18 | 27 | 54 | 32 | 42 | 42 |
| FY-S30-F19 | M20 | 30 | 54 | 33 | 46 | 44 |
| FY-S34-F19 | M22 | 34 | 54 | 32 | 48 | 44 |
| FY-S36-F19 | M24 | 36 | 57 | 32 | 53 | 44 |
| FY-S41-F19 | M27 | 41 | 58 | 33 | 60 | 44 |
| FY-S46-F19 | M30 | 46 | 63 | 36 | 66 | 44 |
| FY-S50-F19 | M33 | 50 | 65 | 40 | 71 | 44 |
| FY-S55-F19 | M36 | 55 | 70 | 45 | 77 | 54 |
1"Square Hole ( FY-5MXTA)
| power head | bolt size M | Nut size (mm) | L1 | L2 | D1 | D2 |
| FY-S34-F25 | M22 | 34 | 59 | 32 | 58 | 58 |
| FY-S36-F25 | M24 | 36 | 62 | 32 | 59 | 59 |
| FY-S41-F25 | M27 | 41 | 65 | 38 | 67 | 54 |
| FY-S46-F25 | M30 | 46 | 65 | 38 | 74 | 54 |
| FY-S50-F25 | M33 | 50 | 70 | 43 | 79 | 60 |
| FY-S55-F25 | M36 | 55 | 80 | 52 | 84 | 60 |
| FY-S60-F25 | M39 | 60 | 85 | 57 | 89 | 60 |
| FY-S65-F25 | M42 | 65 | 85 | 58 | 98 | 70 |
| FY-S70-F25 | M45 | 70 | 90 | 62 | 104 | 70 |
| FY-S75-F25 | M48 | 7 | 95 | 65 | 108 | 70 |
1 12" Square Hole (FY8, 10, 16, 20 MXTA)
| power head | bolt size M | Nut size (mm) | L1 | L2 | D1 | D2 |
| FY-S27-F38 | M27 | 41 | 85 | 44 | 74 | 74 |
| FY-S46-F38 | M30 | 46 | 85 | 44 | 74 | 74 |
| FY-S50-F38 | M33 | 50 | 90 | 45 | 79 | 79 |
| FY-S55-F38 | M36 | 55 | 90 | 45 | 84 | 84 |
| FY-S60-F38 | M39 | 60 | 100 | 45 | 94 | 94 |
| FY-S65-F38 | M42 | 65 | 100 | 45 | 98 | 80 |
| FY-S70-F38 | M45 | 70 | 105 | 50 | 104 | 80 |
| FY-S75-F38 | M48 | 75 | 110 | 50 | 118 | 85 |
| FY-S80-F38 | M52 | 80 | 115 | 55 | 118 | 90 |
| FY-S85-F38 | M56 | 85 | 125 | 60 | 128 | 90 |
| FY-S90-F38 | M60 | 90 | 125 | 60 | 139 | 90 |
| FY-S95-F38 | M64 | 95 | 130 | 65 | 139 | 90 |
| FY-S100-F38 | M68 | 100 | 135 | 70 | 144 | 90 |
| FY-S105-F38 | M72 | 105 | 135 | 70 | 149 | 90 |
| FY-S110-F38 | M76 | 110 | 135 | 70 | 158 | 90 |
| FY-S115-F38 | M80 | 115 | 135 | 70 | 159 | 90 |
| FY-S120-F38 | M85 | 120 | 135 | 70 | 168 | 95 |
| FY-S130-F38 | M90 | 130 | 155 | 93 | 189 | 95 |
212" Square Hole (FY27, 39, 50, 60 MXTA )
| power head | bolt size M | Nut size (mm) | L1 | L2 | D1 | D2 |
| FY-S55-F63 | M33 | 55 | 100 | 57 | 86 | 114 |
| FY-S60-F63 | M39 | 60 | 100 | 52 | 119 | 119 |
| FY-S65-F63 | M42 | 65 | 100 | 52 | 119 | 119 |
| FY-S70-F63 | M45 | 70 | 120 | 67 | 128 | 128 |
| FY-S75-F63 | M48 | 75 | 120 | 67 | 128 | 128 |
| FY-S80-F63 | M52 | 80 | 130 | 71 | 128 | 128 |
| FY-S85-F63 | M56 | 85 | 130 | 71 | 128 | 129 |
| FY-S90-F63 | M60 | 90 | 140 | 73 | 139 | 139 |
| FY-S95-F63 | M64 | 95 | 140 | 73 | 139 | 139 |
| FY-S100-F63 | M68 | 100 | 140 | 81 | 149 | 130 |
| FY-S105-F63 | M72 | 105 | 150 | 89 | 149 | 130 |
| FY-S110-F63 | M76 | 110 | 150 | 90 | 158 | 130 |
| FY-S115-F63 | M80 | 115 | 150 | 98 | 168 | 130 |
| FY-S120-F63 | M85 | 120 | 150 | 98 | 178 | 130 |
| FY-S130-F63 | M90 | 130 | 170 | 98 | 188 | 130 |
| FY-S135-F63 | M95 | 135 | 170 | 114 | 198 | 130 |
| FY-S145-F63 | M100 | 145 | 170 | 122 | 210 | 152 |
| FY-S150-F63 | M105 | 150 | 190 | 140 | 216 | 152 |
| FY-S155-F63 | M110 | 155 | 190 | 140 | 229 | 152 |
| FY-S165-F63 | M115 | 165 | 190 | 140 | 241 | 152 |
