| Prod Model: |

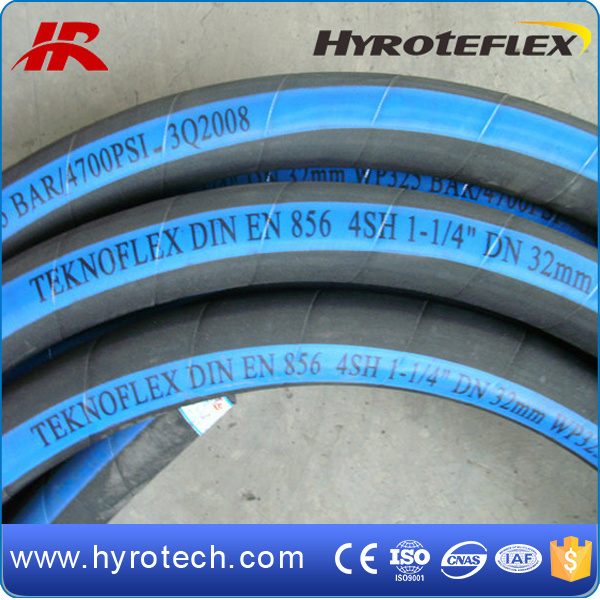

Rubber Hydraulic Hose, DIN En856 4sh |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3/16''-2'' |
| Length: |
20-100m/Roll |
| Sample: |
for Free |
| Material: |
Natural Rubber |
| Capability: |
Rubber Oil Hose |
| Color: |
Black |
Product Description
RUBBER HYDRAULIC HOSE
R1, R2, R3, R4, R5, R6, R7, R8, R13, R16, R17, 4SP, 4SH
We are Hydraulic hose, High pressure hose, Rubber hose and Hydraulic hose assembly manufacturer and exporter in China.
1. Steel wire braided Hydraulic hose(One or Two steel wire braided layer)
SAE 100R1AT/ DIN EN 853 1SN
SAE100R2AT/ DIN EN 853 2SN
DIN EN 857 1SC/ DIN EN 857 2SC
SAE J517 TYPE 100R16
2. Multi Spiral Hydraulic hose(Four or Six high tensile steel wire spiral layer)
DIN EN 856 3SP
DIN EN856 4SH
SAE J517 TYPE 100R9
SAE J517 TYPE 100R12
SAE J517 TYPE 100R13
3. Other Hydraulic hoses:
SAE J517 TYPE 100R3
SAE J517 TYPE 100R5
SAE J517 TYPE 100R6
THE SPECIFICATE OF SAE 100R12 IS AS BELOW:
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length |
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres |
| 10 | 3/8 | 9.5 | 17.2 | 20.3 | 27.5 | 4000 | 110.3 | 16000 | 125 | 0.62 | 20/40 |
| 13 | 1/2 | 12.7 | 20.7 | 23.8 | 27.5 | 4000 | 110.3 | 16000 | 180 | 0.85 | 20/40 |
| 16 | 5/8 | 15.9 | 24.6 | 27.4 | 27.5 | 4000 | 110.3 | 16000 | 200 | 1.29 | 20/40 |
| 19 | 3/4 | 19.0 | 27.7 | 30.7 | 27.5 | 4000 | 110.3 | 16000 | 240 | 1.47 | 20/40 |
| 25 | 1 | 25.4 | 34.9 | 38.0 | 27.5 | 4000 | 110.3 | 16000 | 300 | 2.0 | 20/40 |
| 32 | 11/4 | 31.8 | 43.9 | 47.0 | 20.7 | 3000 | 82.7 | 12000 | 420 | 2.86 | 20/40 |
| 38 | 11/2 | 38.1 | 50.4 | 53.5 | 17.2 | 2500 | 68.9 | 10000 | 500 | 3.24 | 20/40 |
| 51 | 2 | 50.8 | 63.7 | 66.7 | 17.2 | 2500 | 68.9 | 10000 | 630 | 4.8 | 20/40 |
Qingdao Hyrotech Rubber & Plastic Products Co., Ltd. is a leading manufacturer & exporter of rubber hoses, PVC hoses and a variety of hose accessories in China. The company covers an area of 20000 square meters workshop with a total investment up to RMB 50 million. We owe 100 sets of different equipments for production, testing and employ more than 200 staffs, including 15 technicians. Our annual output is 5 million meters for hydraulic hoses and 3 million meters for industrial hoses.
Hyrotech main products range is as follows:
Hydraulic Hose
Industrial Hose
GOST Standard Rubber Hose
Special Rubber Hose
Automotive Hose
PVC Hose
Plastic Hose Guard
Fittings, Adaptors
Since the year 2000, Hyrotech has had the Certificate of Conformity to Quality Management System according to the requirements of international standard ISO 9001. All the products are manufactured according to international standard and meet the requirements of SAE, DIN, EN, GOST. The primary aim of the company is to offer high quality products and best services for every customer.
Our products are widely used in agriculture, construction, coal mining, machinery, garden industry, automobile industry, oil & gas industry. With competitive prices, stable products quality and timely delivery, We have established long-term business relations with customers from more than 50 countries.
Hyrotech striving hard for every customer's satisfaction. Welcome customers from all over the world to contact us.
