| Price: | US $ 2.76-9.56/Piece |
|---|---|
| Min Order: | 200/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Delivery: | 10- 15 Days |
|---|---|
| Application: | Polishing Grinding Concrete |
| Technology: | Cold Pressed, Hot Pressed, Laser Welding, Silver |
| Power Tool: | Angle Grinder |
| Type: | Turb, Double Row, Single Row |

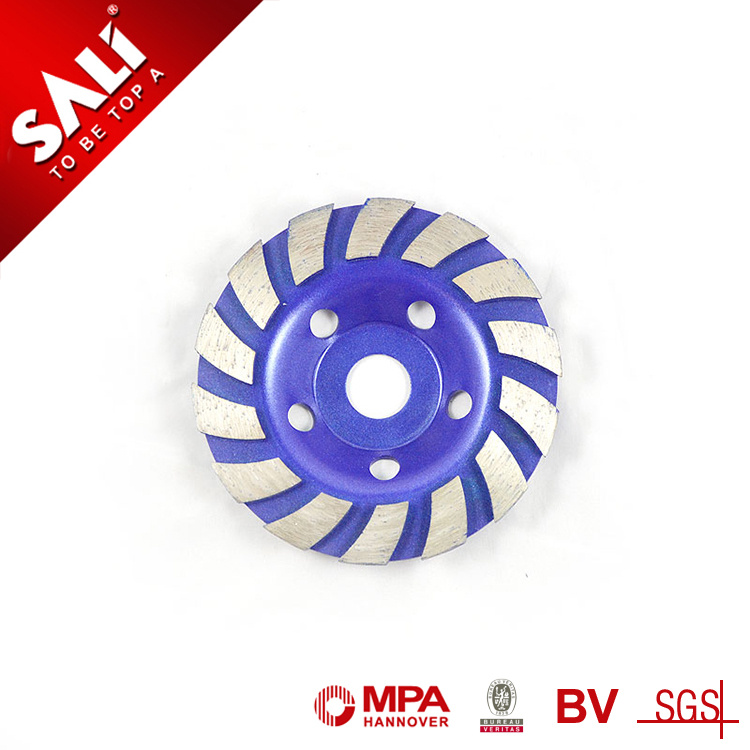

SALI Longer Life and Faster Dust Removal Diamond Grinding Wheel
1.Specification
| Shank Material | 65Mn |
| Segement | 7MM |
| Type | Turbo, Single row, double row |
| Technology | Cold pressed, hot pressed, laser welding, silver welding |
| Grit Size | 30/40,40/50, 50/60, 60/80 |
| Diamond Concentration | 20% - 30% |
| HRB | 85-105 |

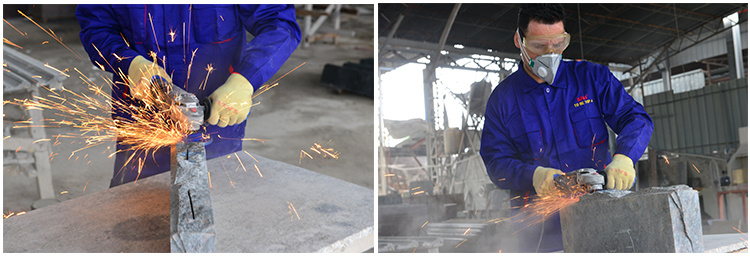

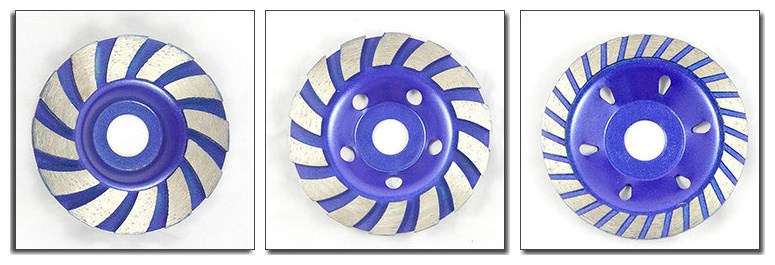

2.Pics
3.Application
Used for grinding marble, granite, stone, ceramic, concrete, asphalt, brick.

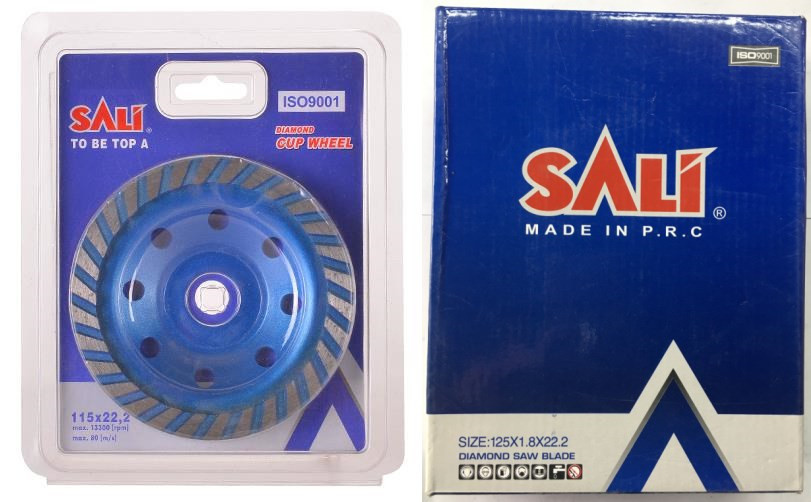

4.Packing
Blister card and color color ctn.
5.Other sizes and type are available
Application | Diameter | Segment Height | Segment Thickness(mm) | Segment No. | Arbor (mm) |
Single row | 105mm(4") | 5 | 7 | 8 | M14,5/8"-11,22.23 |
115mm(4.5") | 5 | 7 | 9 | M14,5/8"-11,22.23 | |
125mm(5") | 5 | 7 | 10 | M14,5/8"-11,22.23 | |
150mm(6") | 5 | 7 | 12 | M14,5/8"-11,22.23 | |
180mm(7") | 5 | 7 | 14 | M14,5/8"-11,22.23 |
Application | Diameter | Segment Height | Segment Thickness(mm) | Segment No. | Arbor (mm) |
Double row | 105mm(4") | 5 | 7 | 16 | M14,5/8"-11,22.23 |
115mm(4.5") | 5 | 7 | 18 | M14,5/8"-11,22.23 | |
125mm(5") | 5 | 7 | 20 | M14,5/8"-11,22.23 | |
150mm(6") | 5 | 7 | 24 | M14,5/8"-11,22.23 | |
180mm(7") | 5 | 7 | 28 | M14,5/8"-11,22.23 |
Application | Diameter | Segment Height | Segment Width(mm) | Segment No. | Arbor (mm) |
Turbo | 105mm(4") | 5 | 10/20 | Turbo | M14,5/8"-11,22.23 |
115mm(4.5") | 5 | 10/20 | Turbo | M14,5/8"-11,22.23 | |
125mm(5") | 5 | 10/20 | Turbo | M14,5/8"-11,22.23 | |
180mm(7") | 5 | 10/20 | Turbo | M14,5/8"-11,22.23 |
5.Why Choose US ?
Feedback / Guarantee
1)100% new Products and quality checking before ship
2)Your feedback lead to our better performance
3)Three years products' warranty
4)Good Communication when complains
6.FAQ:
1)How many wide of segment for diamond stone grinding wheels?
-7mm, 10mm can be made
2)Can we use our own logo design?
-Yes, you can. Please send an email to salesman and tell more details about the logo, sticker, packing etc.
3)Do you have inspection procedure for:
-Incoming -In-Process -100% self-inspection before packing? Yes, we have.
4)What certificates do your products have?
-ISO9001.
5)Do you have stock?
-Yes, we have the stock with our SALI brand.
6)Can we mix the 20ft container?
-Yes, you can mix it.
7)What is the delivery time?
-25 working days for 1 container order.
8)What is your payment?
-We can accept T/T, 30% deposit and 70% balance before shipping.
9)Can we use our own packing design?
-Yes, you can.
10)Can we use our own shipping agent?
-Yes, you can.
11)Your port of shipment?
-Ningbo or Shanghai.
