| Prod Model: |
YAQS-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 1/2"-4": |
Dn10-200 |
Product Description

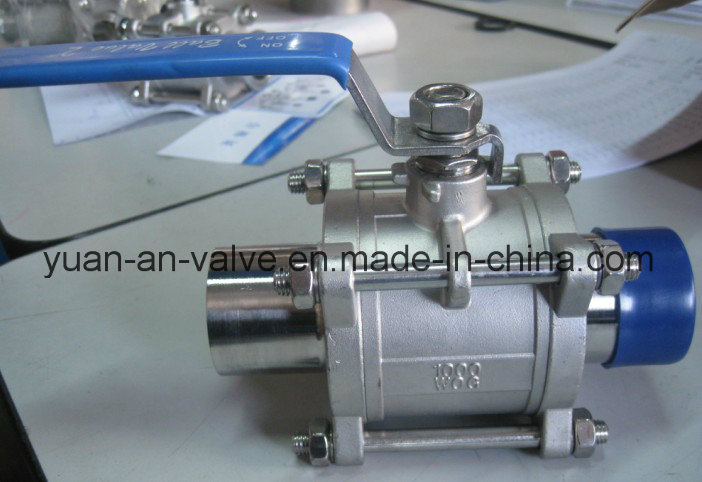

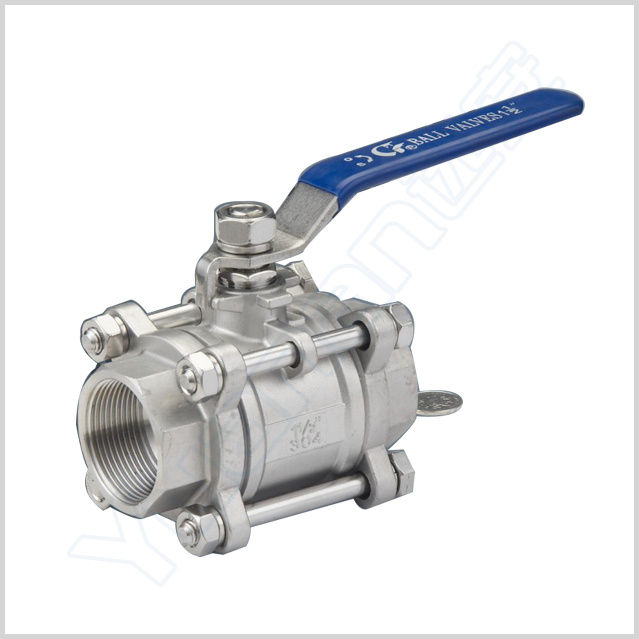

Sanitary 3PCS ball valve
Application
This series is a kind of manually operated clamped ball valve. With good capacity in dealing with viscous medium or particulate, it is widely used in food, beverage, pharmaceutical and chemical industrial piping system, especially the brewing industry, to regulate and control the medium flow.
Materials
Product wetted parts: AISI 316L / 304
Gasket: EPDM (default)
Seat: PTFE
Options
End connections: Sanitary clamp, butt-welded, threaded, flange, I-line or others upon request.
Seats and gasket can be NBR(Nitrile), VMQ(Silicon), Viton (FPM), all complying with FDA 21CFR177.2600
Handle: 3-position pull handle, multi-position handle in either pure stainless steel or with plastic cover.

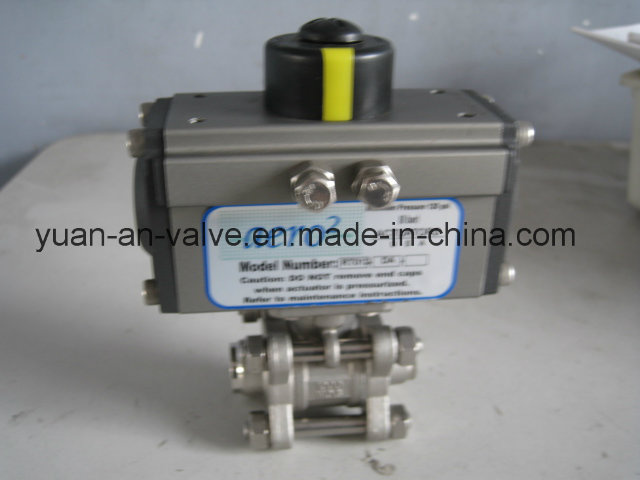

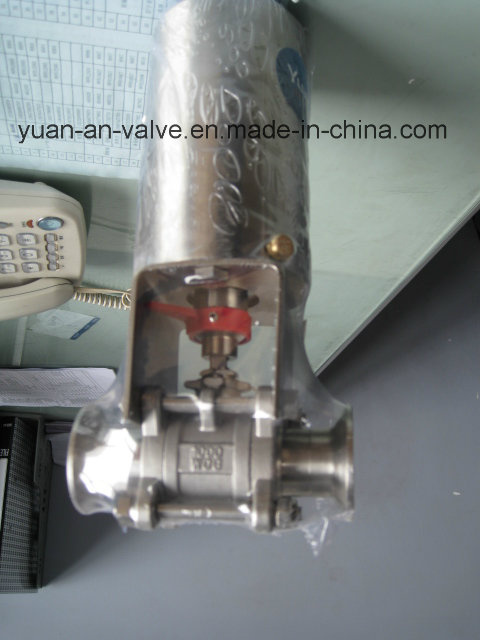

Actuator: Pneumatic stainless steel actuator, pneumatic aluminum actuator, electric actuator
Intelligent C-top control: AS-I connection, electronic connection.
Yuan'an Liquid Equipment Co., Ltd. Has been one of the professional high accuracy hydraulic-equipment manufacturers since 1999. Our name is remembered by many well-known enterprises, such as Shanghai Guangming, Uniliver, Guangzhou Daneng and Huiyuan Group. And also some yuan-an international competition companies
Yuan'an has set up two factories, including Shanghai Yuan'an and Zhejiang Yuan'an. There are five departments, including Sanitary steel tube department, Sanitary valve department, Sanitary pipe fitting department, Sanitary pump department, Sanitary steam valve department. Our products are widely used in dairy, beer, food, pharmacy, beverage, cosmetic, chemical industries and etc.
The pursuing of quality is endless in Yuan'an. We use first-class digital-controlled machines like CNC for production. Raw materials supply from Shanghai No. 5 Steel and Taiwan Walsin Lihwa Corp. All of our products are made according to industrial standards ISO, IDF, DIN and 3A. All product quality meets GMP requirements. At the beginning of 2003, Yuan'an stepped into international markets. Our automatic pneumatic butterfly valves, diaphragm valves and etc products have been exported to America, which fills the gap of sanitary hydro-equipment export in China. It also indicates that the product quality of Yuan'an has been recognized by the world market.
We provide equally outstanding after-sales services and competitive prices with our high quality products. And yuan'an is not only admitted by customers, but also attended by local & international competitors.
