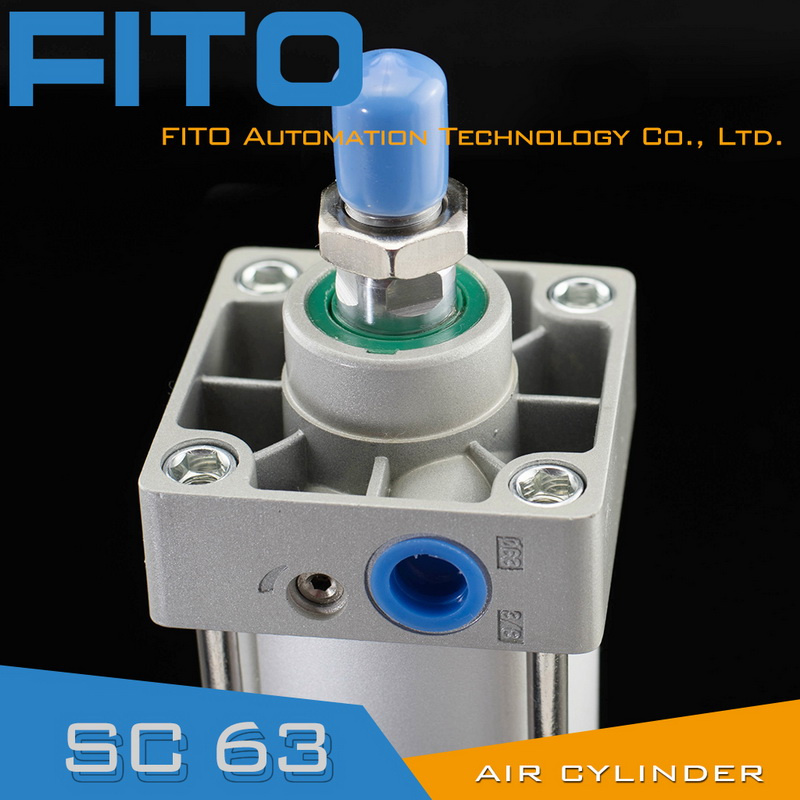

Sc63 Series Standard Air Pneumatic Cylinder Apply to ISO6430
| Price: |
US $ 10-700/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
| Prod Model: |
Sc63*200 |
| Material: |
Aluminum |
| Structure: |
Piston Cylinder |
| Power: |
Pneumatic |
| Standard: |
Standard |
| Pressure Direction: |
Double-acting Cylinder |
Product Description

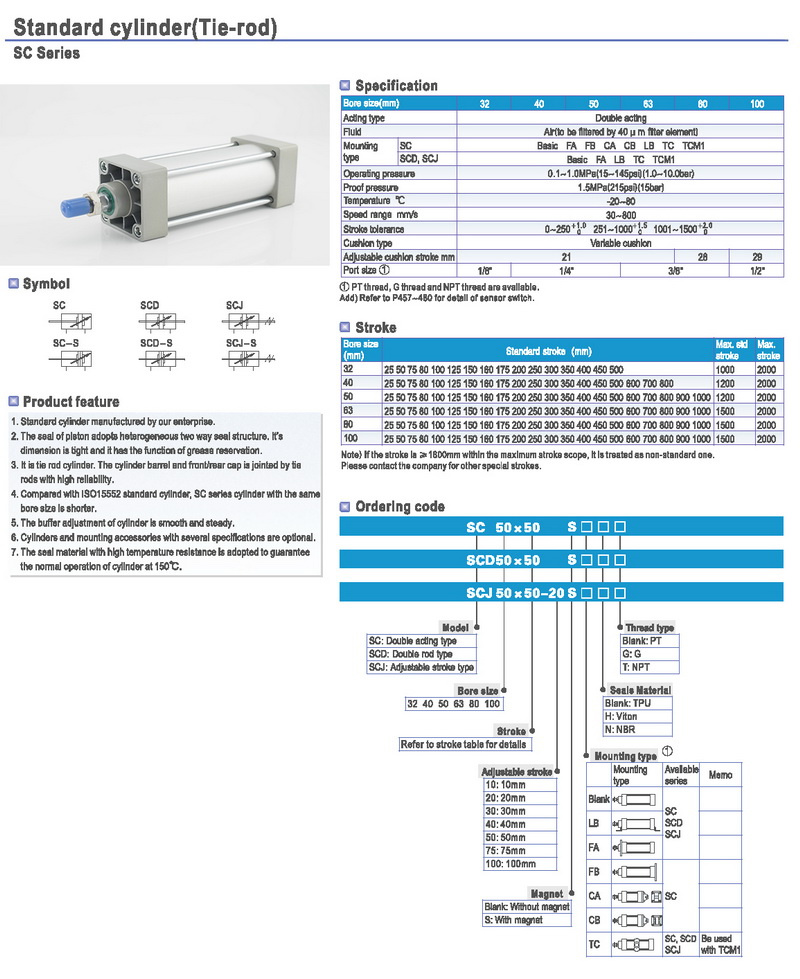

Specifications:
| Cylinder diameter | 32 | 40 | 50 | 63 | 80 | 100 |
| Working Medium | Air |
| Action type | Double acting |
| Proof pressure | 15.3kgf/cm2(1.5Mpa) |
| Max.pressure | 10.2kgf/cm2(1.0Mpa) |
| Min.pressure | 0.5kgf/cm2(0.05Mpa) |
| Environment and fluid temp | -10~+60 |
| Piston veocity | 50~1000mm/s |
| Buffering | Air buffering |
| Stroke tolerance | ~0~250+10 , 251~1000+14 , 1001~1500+18 |
| Rc(PT)Joint size | G1/8" | G1/4" | G3/8" | G1/2" |
Product DescriptionSC Series Pneumatic CylinderProduct characteristicsThin lightUnder keeping operation precision and service life, its total
Lengthis 1/2-1/3 of general cylinder it presents thin and lightCharacteristics.Easy to installFlush mounting is used, it needn't any parts, so that the space can be saved.Easy to maintainBecause of simple assembling, it is convenient to assemble,disassemble and maintain.Magnetic switchThere is space for assembling slot outside the body, so the
Magnetic switch is installed and adjusted easilyWhy US1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell servicePayment and ShipmentPayment: T/T, Western Union, LC, Shipment: Usually we send the goods by DHL, FedEx, UPS, TNT, or EMS or as your request;
After delivery, we will send you the tracking number by E-mail.
If you do not receive it within 7 business days after shipping, please contact us.
Note:2: We do our best to ship your order in 4 weeks after receive your payment.Other Products Our company also can provide other pneumatic cylinders as below,
1. ISO Standard cylinder: DNC(ISO 6431&VDMA24562),DNG(ISO 15552),SI(ISO 6431),MA(ISO 6432)
2.Standard cylinder:SC/SU,MB,CA1
3.Mini cylinder:MA,MAL,CJ2,CM2,CJP Needle cylinder
4.Double-shaft cylinder:TN,CXS
5.Free installation cylinder:CU
6.Slide bearing cylinder:STM
7.Three-shaft cylinder:MGP
8.Stopper cylinder:RSQ
9.ADVU, SDA,CQ2B compact cylinder
10.Rotary cylinder:MSQ
11.Rodless cylinder:CY1
12.Air gripper:MHC Series Pneumatic Parrallel Gripper, MHC point type Gripper Parallel Style Wide Opening Air GripperFor more details, plz feel free to ask,we will assist you to make the right things for your market!
