Screw and Barrel for Plastic Extruder Machine
| Price: |
US $ 500-700/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
TSE series |
| Place Of Origin: |
China (Mainland) |
| Material: |
38crmoala or W6mo5cr4V2 |
| Treatment: |
Heating Treatment |
| Application: |
Plastic Granulating |
| Screw Diameter: |
22mm,31mm,41mm,62.4mm.71mm.93mm |
| Application Machine: |
Extruder / Granulator |
| Screw Length: |
290mm X Segment |
| L/D: |
12:1 - 48:1 |
| Identification: |
Ce ISO9001 |
| Type: |
Parallel Twin Screw |
Product Description
Screw and Barrel for Plastic Extruder Machine/Screw Element
SPECIFICATONS
1. Extruder replace parts
2. High quality, high accuracy
3. Screw: W6Mo5Cr4V2.38CrMoAl. SKD11. SACM645 etc
DESCRIPTION

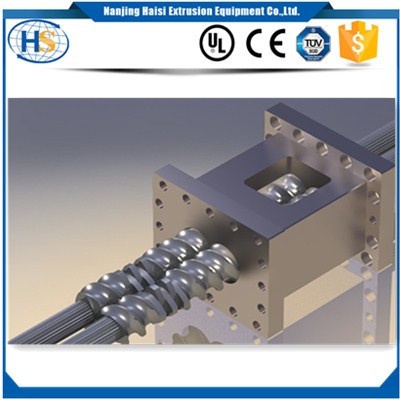

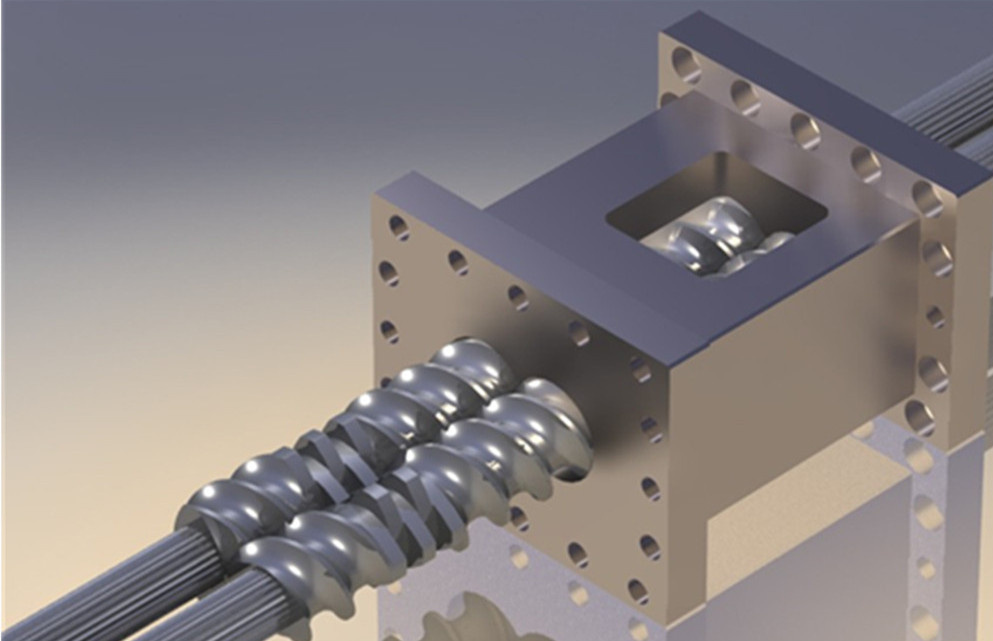

The flexible modular principle is realized with screw barrel sections from the wide
Range ofdifferent designs possible. Fast, intensive and uniform heating ofthe screw
Barrel section is ensured by electrical heaters. The barrel sections are cooled with
Water, by means ofan internal bore system, with bores arranged close to the inside
Barrel wall.
Barrel sections are available as:
Closed barrel section
Barrel section with opening for material feed or for devolatilization
The processing section is provided with stainless steel plates as a protection against
Accidental contact.

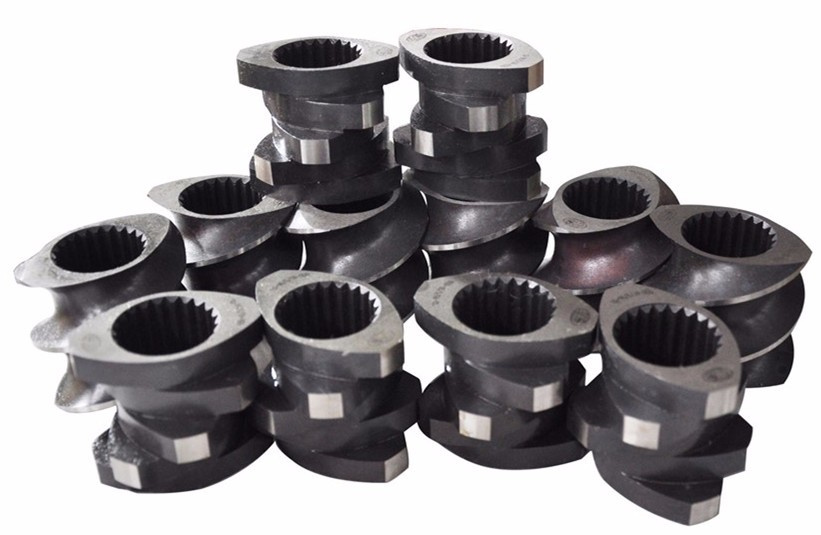

Screw Elements: High-speed steel W6Mo5Cr4V2, nitrogen treatment.
Screw Shaft: High performance alloy steels, 40CrNiMoA; With standing high load, Etc
Description
The inter meshing screws co-rotate and wipe each other with narrow clearance so that
No residues are left in the screw flight and clean effort is thus reduce.
Screw elements with various pitches and lengths
Kneading blocks with various angles ofstagger, numbers ofkneading disks and disk
Widths.
Screw tips to fix the screw set axially
Gear teeth connection to ensure power flow between the screw shaft and screw
Elements.
FEATURES
1. Screw components designed by computer aids is kneading type, has excellent self-cleaning function, the new kneading block design effectively avoid the problems of overheating and energy consumption.
2. According to process system and formula requirements, the unit can optimize its L/D ratio, barrel structure, screw array, venting number and location, feeding method, electrical control methods etc. For rational allocation.

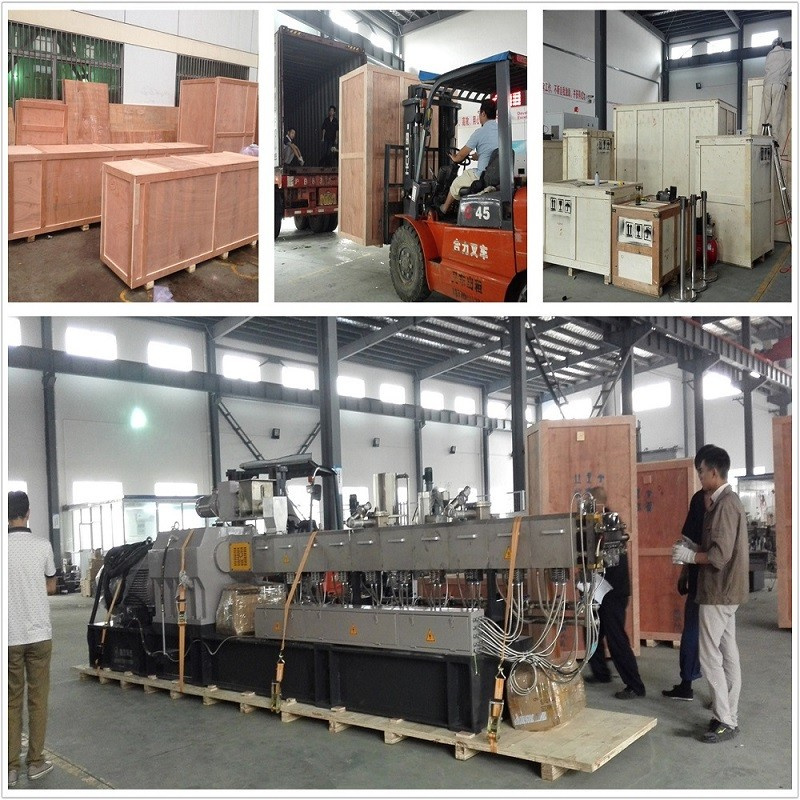

PACKAGING FOR EXPORTS
Package: Wooden case or Using Anti-rust oil processing, then use stretch film cover extruder against moisture damage.
Shipping: By sea or By express.
OUR MACHINE TYPE
1. Co-Rotating Parallel Twin Screw Pelletizing Extruders
2. Single Screw Pelletizing Extruders
3. Die Face Cut (Air Cooling) Pelletizing Extruders
4. Double Stage / Double Degassing Recycling Extruders
5. Crushers, Mixers, Storage Tanks, Vibrators, Granulators, Blowers
6. Extruder spare parts
We are manufacturer of twin screw extruder, also can supply all the spare parts.
Like screw, barrel, feeder, die head electric controller and gearbox.| Base Material | 1) 38CrMoAlA(JIS SACM645) 2)Cr12MOV(JIS SKD-11)
3) 4Cr5MoSiV1(JIS SKD-61) 4) 42CrMo(AISI 4140) |
| Bimetallic Alloy Material | 1)Fe-based alloy 2)Ni-based alloy/Deloro alloy
3)Co-based alloy 4)NiCo-based alloy
5)Tungsten carbide/Wolfram carbide |
| Surface Treatment |
| 1.Heat treatment | 2.High frequency treatment |
| 3.Nitriding treatment | Nitrided case depth: 0.50-0.80mm |
| Nitrided hardness: HV850-1020 (HRC57-65) |
| 4.Hard chrome plating treatment | Chromium-plating layer depth: 0.05-0.10mm |
| Chromium-plating layer hardness: more than 950HV |
| 5Nickel alloy plating treatment | Bimetallic barrel: centrifugal casting (Inlay alloy) |
| Bimetallic screw: plasma alloy coating spraying |
| Bimetallic layer depth: 0.8-2.0mm |
| Bimetallic layer hardness: HRC 57-72 |
| Basic Information |
| Nitride Brittleness | ≤Grade Two |
| Surface Roughness | Ra0.4um |
| Screw Straightness | 0.015mm |
| Hardness after hardening and tempering | 0.025~0.10mm |
| Material Application | 1)General plastics |
| 2)ABS,PA,PC,PE,PET,PS,PU,PVC,U-PVC |
| 3) PA+GF (Glass Fiber) |
| 4)Flame-resistant reinforced plastics |
| 5)Modified engineering plastics |
| 6)All kinds of mixed recycled materials |
| General Terms | Means of transport: Ocean, Air, Express |
| Production time: 20-25 days after order |
If you have any questions, pleasedon't hesitate to contact me or send an inquiry to me!
FAQ
1. Q: How about Haisi?
R: Nanjing Haisi Extrusion Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and service, and has specialized in extruder industry for ten years, leading screw barrel manufacturer in China.
2. Q: What's Haisi capacity?
R: Our company is in strict accordance with CE and ISO9001 quality certification system. there are over 200 models of extruders and spare parts.
3. Q: What's the delivery time?
R: For regular size, we have finished stock and semi-finished stock, 2 weeks max are enough for customized, normally 3~4 weeks.
4. Q: Where is Haisi factory and how to reach there?
R: At Lishui, Nanjing, Jiangsu Province. If you want to visit us, we can pick you up in the airpor or train station.
5. Q: How to contact with us?
R: Plz reply to me directly if you have any question.
Introduction and history:

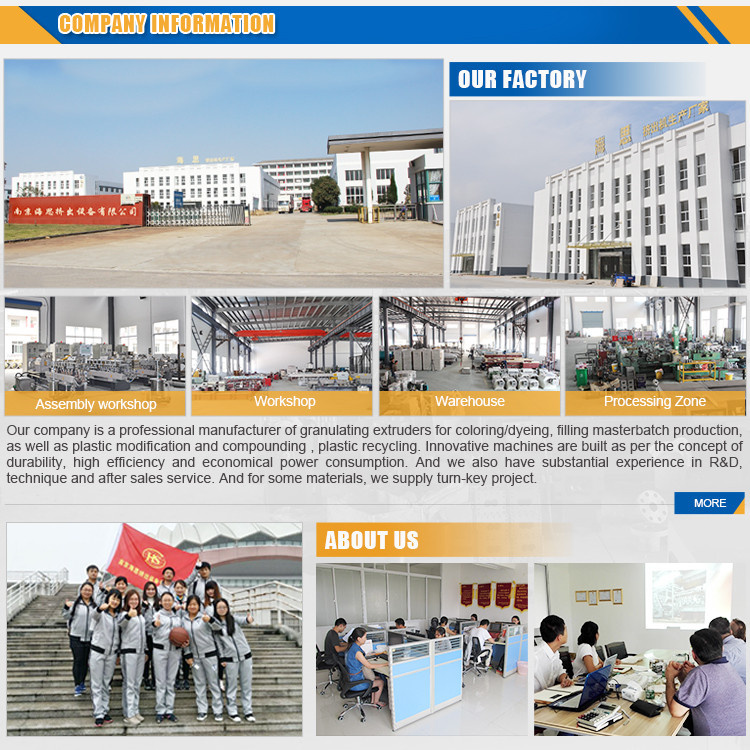

Nanjing Haisi Extrusion Equipment Co., Ltd is a high-tech manufacturing and trading company in China. "Family" is our benchmark. We work efficiently and help each other whenever anyone is in need due to the same target, that is, to make best quality of extruders in China.
Our company is a professional manufacturer of granulating extruders for coloring/dyeing, filling masterbatch production, as well as plastic modification and compounding, plastic recycling. Innovative machines are built as per the concept of durability, high efficiency and economical power consumption. And we also have substantial experience in R&D, technique and after sales service. And for some materials, we supply turn-key project.
Company is in strict accordance with CE and ISO9001 quality certification system for production management. There are over 200 models of extruders and spare parts. Factory has CNC center, grinding machines, cutter, puncher, etc. To meet customers' requirements on extruders and spare parts.
Business scope and achievements:
All kinds of plastic extruder.
Our machines are widely used in China mainland, and have been exported to 20 countries and places over the world. Our annual production capacity is 240 sets plastic extruder in domestic countries and abroad! OEM service offered in granulating plastic extruder industry in consistence with specific requirement from both national and international customers.
Prospects:
Surely you will also get professional machines and characteristic services here. Let's create more together!
Characteristics of our machine:
Euro-style rectangle barrel, reflux refrigeration channel is optimized and disposed, which makes temperature difference in D areas smaller.
Innovated design of heater tightened style insures high efficiency of heat transfer and high longevity of heater.
According to the material and special technics demands, the material of cyliner can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.
Various modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelletizing, etc.
The screw elements and kneading blocks are designed, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming, etc. The screw is made of high tool steel 38 CrMoAlA or W6Mo5Cr4V2 by special heat-treatment, which is possessed with high corrosion-resistand and high functions.
The machines are designed by using the "toy bricks" principle, the screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different material properties and requirements in consideration of the versatility in each general applications.
Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side-feeding system, etc. To meet different requirements of feeding, such as powder, pellet, pump and liquid material.
New-style gear transmission system:
New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and torque get together, which keep it compact, and the key bearings are imported.
The computer designs to potimize gear parameters and strenghthen safe overmeasure.
The selected material of drive components is dainty. Including super intention alloy cementiteing steel, cementiting and grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.
Soakage and spraying lubriation integrate smoothly.
