| Prod Model: |
screw element |
| Application Machine: |
Extruder |
| Screw Diameter: |
71mm |
| Application: |
Granules |
| Delivery: |
in 30 Days After The Contract Takes Effect |
| Voltage: |
According to Customers' Requirement |
| Standard: |
Ce&ISO |
| Feature: |
Large Bearing Capacity |
| Material: |
W6mo5cr4V2/38crmoala |
Product Description

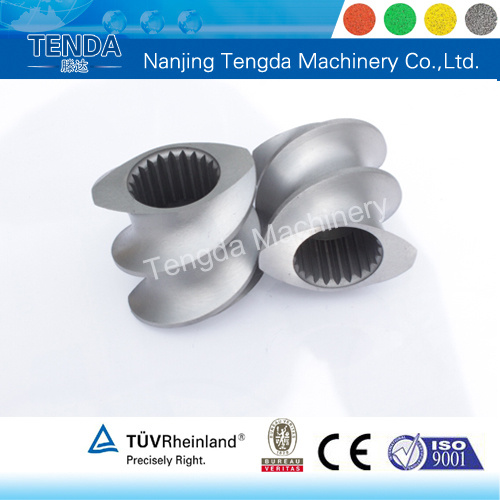

Screw for TENDA Extrusion Machine
Product show

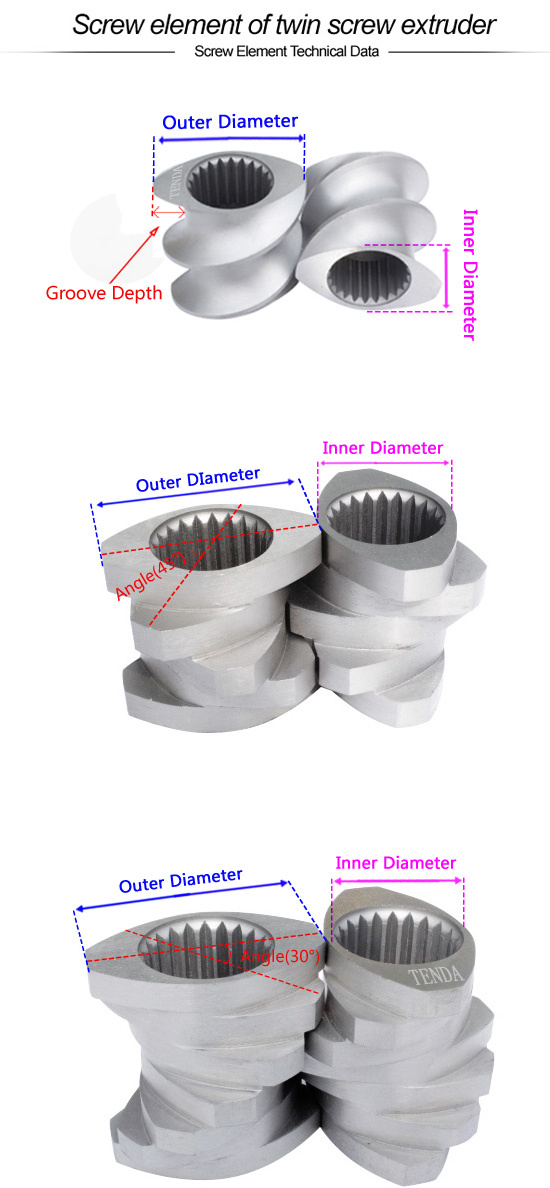

| Type | TD-20 | TD-35 | TD-40 | TD-50 | TD-52 | TD-60 | TD-65 | TD-75 | TD-85 | TD-95 |
| Do(mm) | 21.7 | 35.6 | 41.2 | 50.5 | 51.4 | 59.5 | 62.4 | 71 | 81 | 91 |
| Di(mm) | 14 | 23.6 | 27.2 | 32.5 | 34 | 43.5 | 40.4 | 47 | 52.6 | 63 |
| Groove Depth | 3.85 | 6 | 7 | 9 | 8.7 | 8 | 11 | 12 | 14.2 | 14 |
The screw elements and kneading blocks are designed accurately, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, press-forming,etc. The screw is made of high tool steel 38CrMoAlA or W6Mo5Cr4V2 by special heat-treatment, which is possessed with high corrosion-resistant and high wear-resistant functions.

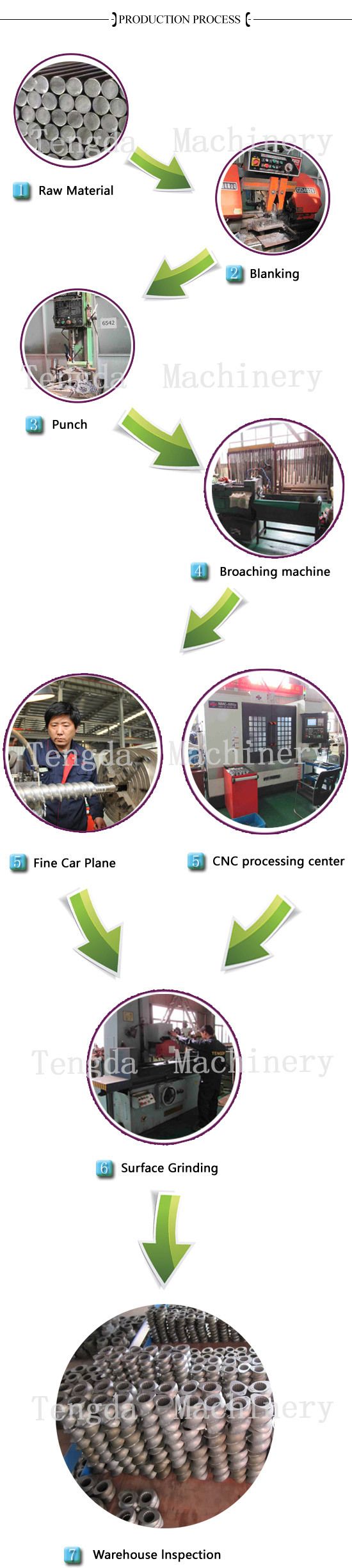

Process flow

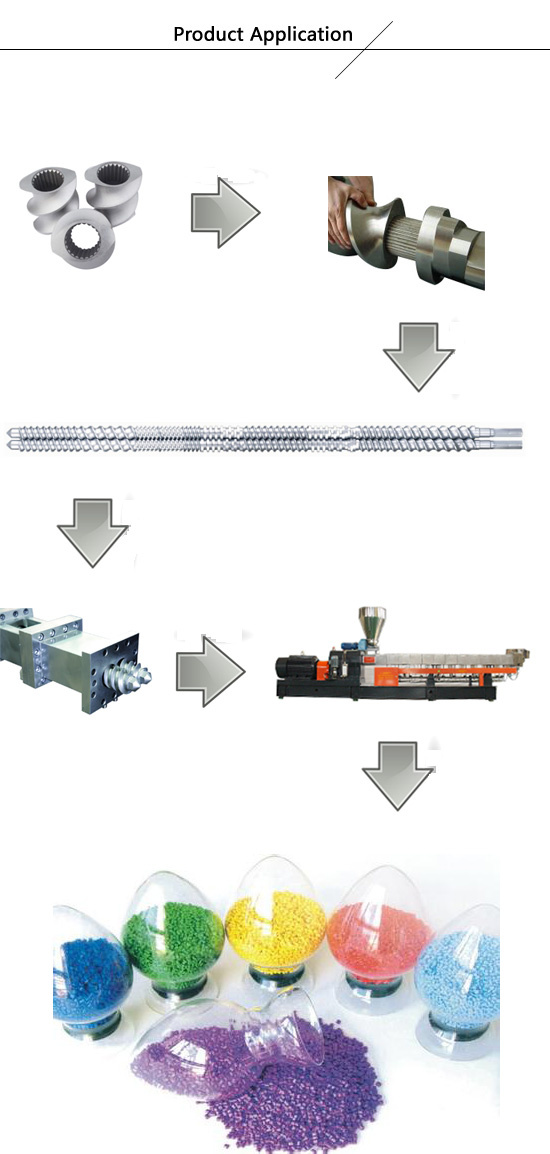

Product application
Nanjing Tengda Machinery Equipment Co., Ltd. is an enterprise specialized in the technical development of polymer compounding and modification equipment, mainly the co-rotating twin-screw extruder, and the related technology and engineering, and the R&D and manufacturing of ancillary equipment. For the R&D of Zhuoyuan twin-screw extruder, in 2013, the company signed a bilateral cooperation agreement with the Fifty-eighth Institute of China Ordnance Group and formally established the R&D division of military twin-screw technology, which is co-founded to accelerate the industrialized development of the integration of military and civilian technology, inject the cutting-edge technology into the company and maximize the advantage of the high-end twin-screw extruder of our country.
The company has senior engineers, experts and experienced on-site commissioning engineers who have engaged in the research and production of twin-screw for many years. The equipment is widely used in many fields, such as the special production materials of the compounding technology, master batch, engineering modified materials, automotive materials, wire and cable, large plastic pipe, panels, petrochemical, chemical fiber architecture, medicine, agriculture, defense, etc.
All types of technologies applied in degradable plastic, modified plastic and blending plastics modification and the matched plastic pelletizing techniques: Special pelletizing machine and compounding equipment for the modification of degradable plastic master batch, multi-compound modified plastics and blended plastics will be your best choice for the creation of benefit.
"High-end, energy-saving" is the tireless pursuit as well as the permanent characteristic of the company since its foundation, so as to meet customers' requirements and bring greater economic and social benefits.
"Tengda Machine" provides you with sincere service and works with you to create a better tomorrow.
