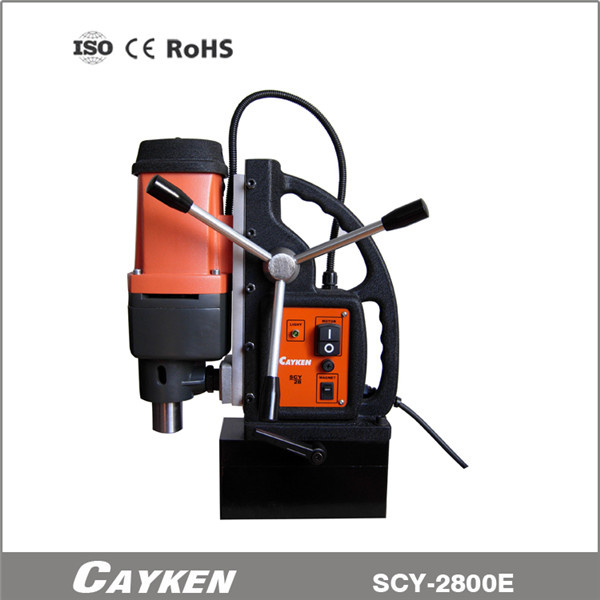

| Prod Model: |
SCY-2800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Orange |
| Type: |
Magnetic Drill |
Product Description
Chengxiang is a certified GB/T 19001-2008/ISO 9001:2008Factory of manufacturing diamond core drilling machines, magnetic drilling machines and wall cutters.
| Model | SCY-1300 | SCY-1600 | SCY-2300 | SCY-2800 |
| Max Drilling Dia | ø13mm | ø16mm | ø23mm | ø28mm |
| Rated Voltage | 220V | 220V | 220V | 220V |
| Max Attraction | 9500N | 11500 | 14000N | 14800N |
| Input Power | 1250W | 1480W | 1500W | 1780W |
| No-load Speed | 0-600RPM | 0-500RPM | 0-330RPM | 0-300RPM |
| N.W. | 13KGS | 14KGS | 24KGS | 25KGS |
| G.W. | 18KGS | 19KGS | 30KGS | 31KGS |
| Size | 34*15*37CM | 34*15*37CM | 40*17*45CM | 40*17*45CM |
1.with soft-starting,constant power.
2.with over-loading protection.
3.with high magnetic adhesion.
4.with coolant and lubricant integrated device.
Shanghai Chengxiang Electromechanical Equipment Co., Ltd. is a high-tech enterprise which boasts of scientific research, manufacture and sale. Our products include industrial drills, such as diamond drills, wall cutting machines and magnetic drills.
Our independent R&D products are very popular at home and abroad, such as multifunctional diamond drills, wall cutting machines and cutting and detaching machines, as well as multi-functional magnetic drills.
Chengxiang keeps up with what clients need, with an international and unique view. Here what we provide is not only fully-ranged, innovative and professional products, but also professional services in a highly efficient and swift way.
