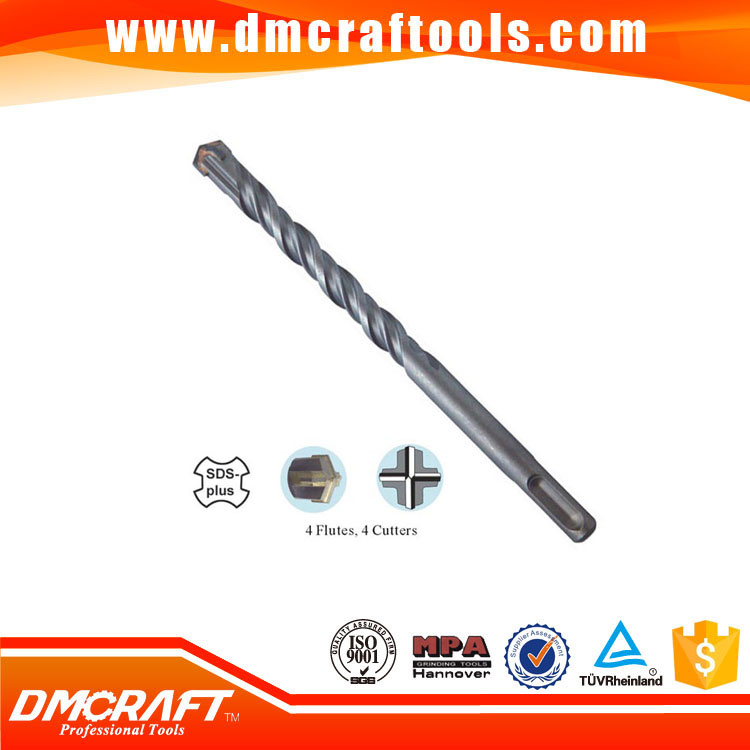

SDS Cross-Head Plus Hammer Drill Bit

Prod Model:	DM4-S005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size(mm):	4-30mm
Manufacturing Process:	Roll Forged, Milled
Shank:	Ssds-Plus,SDS-Max,Spline ,Hex,Four Square
Surface:	Sandblasted, Zinc\Nickel\ Chrome Plated
Flute:	Single or Double Fulte
Body Material:	45# Carbon Steel
Tip Feature:	Flat,Cross,W
Aplication:	Drilling Concrete, Granite, Brick, Block, Tile,Mar

Product Description

Product Description

SDS drill bits are used in a rotary hammer drills(on rotary hammer drilling mode)for boring holes into dense masonry,and have special fitment slots on their shank to allow for rapid drill bit changes.The letters SDS are now internationally accepted as meaning "Special Direct System".There are different types of SDS drill bits depending on the pover output of the drill;the two most common being SDS-Plus and SDS-Max.These bits are designed for extensive and efficient masonry drilling and will last much longer than standard masonry drill bits.

FEATURE
Crosshead "+" carbide drill bits is made of quality alloy structured steel with special grade carbide tip, and brazed under the temperature of 850 degree.
Application:concrete ,clinker,masonry,stone
Flute available :W flute,U flute,L flute
Carbide: central point style carbide,head one "-" type carbide and Crosshead (+) style carbide are available
Color:Cobalt color finish. We also can offer different finish : Galvanized finish, Nickel Plated finish, Black and white finish, black finish and Sandblasted finish etc.

For concrete and stone
Shank	Welded		Material		Flute		Tip
			Standard Quality	Industry Quality
	Manual	Auto	40Cr steel with YG8 Tip	42Crmoni steel with YG8C Tip	Single	S4             ( Double)	""	"W"	"+"
SDS Plus	√	√	√	√	√	√	√	√	√
SDS Max	√	√	√	√	√	√	√		√
Spline Shank	√	√	√	√	√	√	√		√
Hex Shank	√	√	√	√	√	√	√		√


Product Information


Diameter x Overall Length	Working Code Length	Diameter x Overall Length	Working Code Length
4.0 x 110mm	45mm	13.0 x 160mm	80mm
4.0 x 160mm	95mm	13.0 x 210mm	130mm
5.0 x 110mm	45mm	13.0 x 260mm	180mm
5.0 x 160mm	95mm	13.0 x 300mm	220mm
5.0 x 210mm	147mm	13.0 x 460mm	380mm
5.0 x 310mm	247mm	14.0 x 160mm	80mm
5.5 x 110mm	45mm	14.0 x 200mm	120mm
5.5 x 160mm	95mm	14.0 x 260mm	180mm
5.5 x 210mm	147mm	14.0 x 300mm	220mm
5.5 x 260mm	197mm	14.0 x 460mm	380mm
5.5 x 310mm	247mm	14.0 x 600mm	520mm
6.0 x 110mm	45mm	14.0 x 1000mm	920mm
6.0 x 160mm	97mm	15.0 x 160mm	80mm
6.0 x 210mm	147mm	15.0 x 200mm	120mm
6.0 x 260mm	197mm	15.0 x 260mm	180mm
6.0 x 460mm	397mm	15.0 x 460mm	380mm
6.5 x 110mm	45mm	16.0 x 160mm	80mm
6.5 x 160mm	97mm	16.0 x 200mm	120mm
6.5 x 210mm	147mm	16.0 x 250mm	180mm
6.5 x 260mm	197mm	16.0 x 300mm	230mm
7.0 x 110mm	45mm	16.0 x 460mm	380mm
7.0 x 160mm	97mm	16.0 x 600mm	520mm
7.0 x 210mm	147mm	16.0 x 800mm	720mm
8.0 x 110mm	45mm	16.0 x 1000mm	920mm
8.0 x 160mm	97mm	17.0 x 200mm	120mm
8.0 x 210mm	147mm	18.0 x 200mm	120mm
8.0 x 260mm	197mm	18.0 x 250mm	175mm
8.0 x 310mm	247mm	18.0 x 300mm	220mm
8.0 x 460mm	397mm	18.0 x 460mm	380mm
8.0 x 610mm	545mm	18.0 x 600mm	520mm
9.0 x 160mm	97mm	18.0 x 1000mm	920mm
9.0 x 210mm	147mm	19.0 x 200mm	120mm
10.0 x 110mm	45mm	19.0 x 460mm	380mm
10.0 x 160mm	97mm	20.0 x 200mm	120mm
10.0 x 210mm	147mm	20.0 x 300mm	220mm
10.0 x 260mm	197mm	20.0 x 460mm	380mm
10.0 x 310mm	247mm	20.0 x 600mm	520mm
10.0 x 360mm	297mm	20.0 x 1000mm	920mm
10.0 x 460mm	397mm	22.0 x 250mm	175mm
10.0 x 600mm	537mm	22.0 x 450mm	370mm
10.0 x 1000mm	937mm	22.0 x 600mm	520mm
11.0 x 160mm	95mm	22.0 x 1000mm	920mm
11.0 x 210mm	145mm	24.0 x 250mm	175mm
11.0 x 260mm	195mm	24.0 x 450mm	370mm
11.0 x 300mm	235mm	25.0 x 250mm	175mm
12.0 x 160mm	85mm	25.0 x 450mm	370mm
12.0 x 210mm	135mm	25.0 x 600mm	520mm
12.0 x 260mm	185mm	25.0 x 1000mm	920mm
12.0 x 310mm	235mm	26.0 x 250mm	175mm
12.0 x 460mm	385mm	26.0 x 450mm	370mm
12.0 x 600mm	525mm	28.0 x 450mm	370mm
12.0 x 1000mm	920mm	30.0 x 460mm	380mm

Packing&shipping

one pc in pvc bag or Plastic tube,Paper card With PVC Skin


Shipping
1. TNT/FedEx/DHL/UPS for samples or under 45KG weight goods , Door to Door.
2. By Air or by Sea for batch goods,from airport(seaport) to airport(seaport).
3. Customers specifying freight forwarders or not.
4. Production Time: 3- 7days for samples; 2-3.5 weeks for batch goods
