| Prod Model: |
AKM-8140 |
| Standard: |
Standard |
Product Description

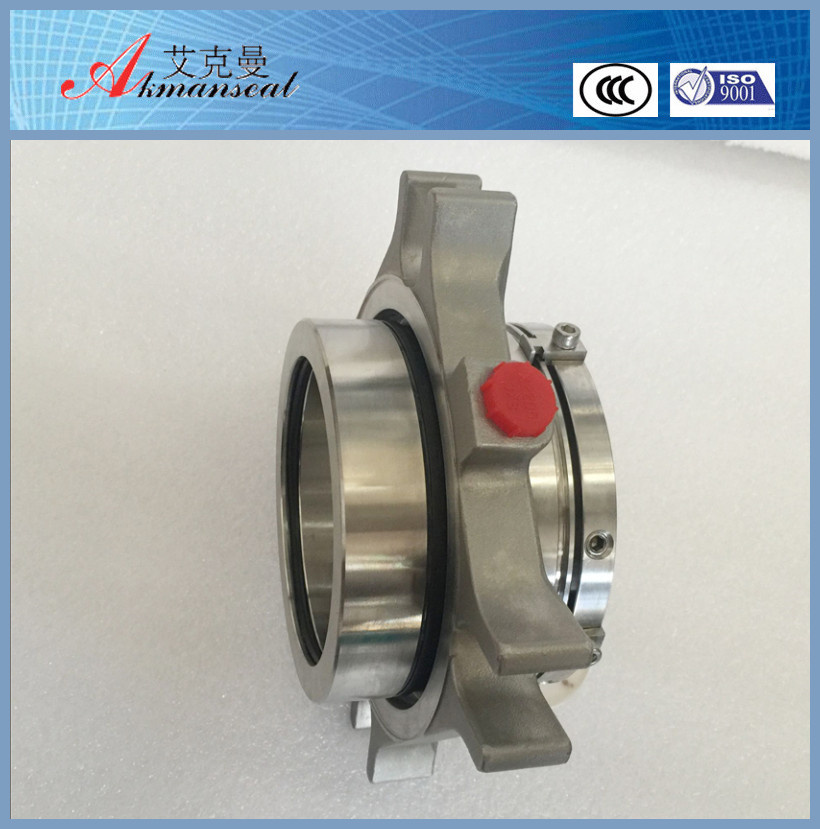

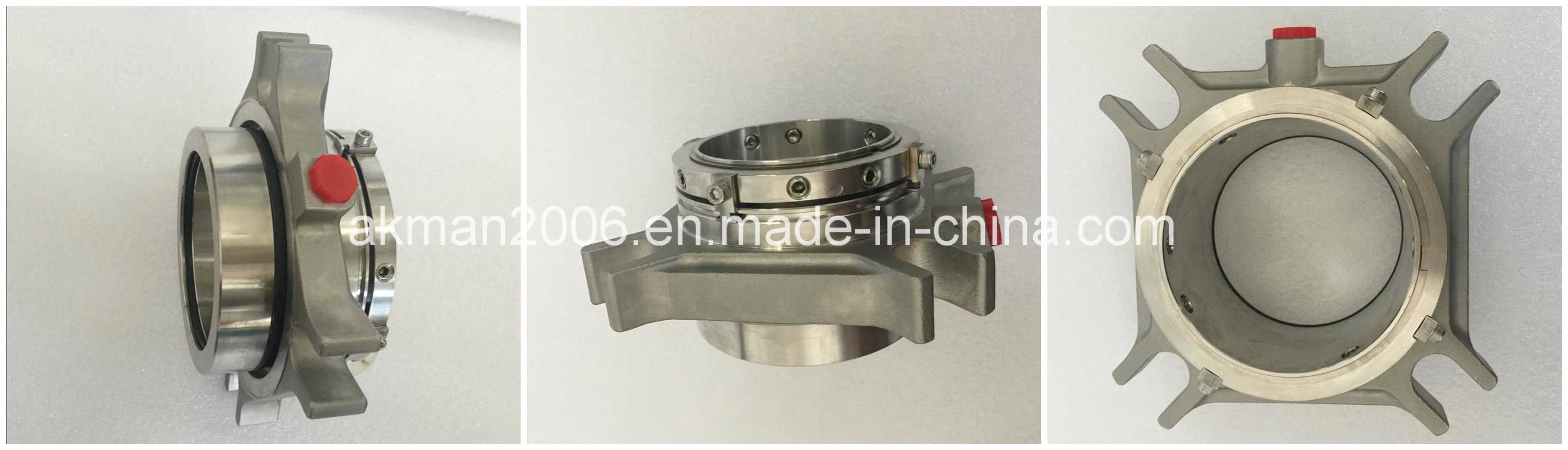

8140 Series single cartridge seal is a fully pre-assembled seal with balanced seal face.
It can be used in either direction rotation and come with all the connections you need
for the most common modes of operation.
Features/Benefits: Balanced design: Makes the seal withstanding higher operating pressure.
Quench optional: reduce the risk of clogging.
Sufficient Cavity of Flush: Significantly increased seal service life.
Springs Mounted on stationary Seat: Presents particularly advantage to handle
higher speed and the ability to deal with slight angular alignment of the shaft.
Materials: Metal Parts: 304SS, 316SS
Rotating Face: Silicon Carbide, Tungsten Carbide.
Stationary Seat: Carbon, Silicon Carbide, Tungsten Carbide.
O-Ring: EP, Fluoroelastomer, AFLAS, Perfluoroelastomer.
Springs: 316SS, Has. C
Operating Limits: Pressure: Up to 25 bar (360 psig)
Temperature: Up to 260 C (500 F) Perfluoroelastomer
Speed: Up to 25 m/s
Reton Li
Mob: +86-13913296696
Tel: +86-512-58103528
Fax: +86-512-56935782
Website: http://www.akseal.com/en
Akman Seal, a professional supplier in designing, manufacturing of mechanical seals. Commitment to customer is our core value. Customer-focused, respect are our top priority.
Akman is always emphasizing quality and service. We make our best effort to improve our management and technology, and trying to become a first rate quality as well. Fast responding and best service with high quality pruducts is one of our system features. Making progress everyday is what we did and doing.
Upon more than 10 years accumulated experience, we can offer a wide range of mechanical seals for pumps, reactors, agitators and all other rotating equipments. After our team hard working, Akman products are widely used in power plant, petrochemical, textile & dyeing, food and brewery, pharmacy, water treatment, shipyard.
Akman's final aim is to be recognized as the best partner by our clients in providing customized programs, hands-on service and technical support. Our high performance products will help customers improve business performance and competitiveness, while helping them become more reliable, efficient and compliant.
