| Price: | US $ 10-100/Piece |
|---|---|
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | HKL219 |
|---|---|
| Model Number: | Diamond Squaring Wheel |
| Abrasive: | Diamond |
| Hardness: | High |
| Segment Shape: | Fan-Shaped |
| Size: | 150~300mm |
| Squaring Wheel: | Diamond Squaring Wheel for Ceramic |
| Outer Diameter (mm): | 150~300 |
| Inner Diameter (mm): | 60~200 |
| Segment Size(mm): | 8X12, 10X14, 12X14 |

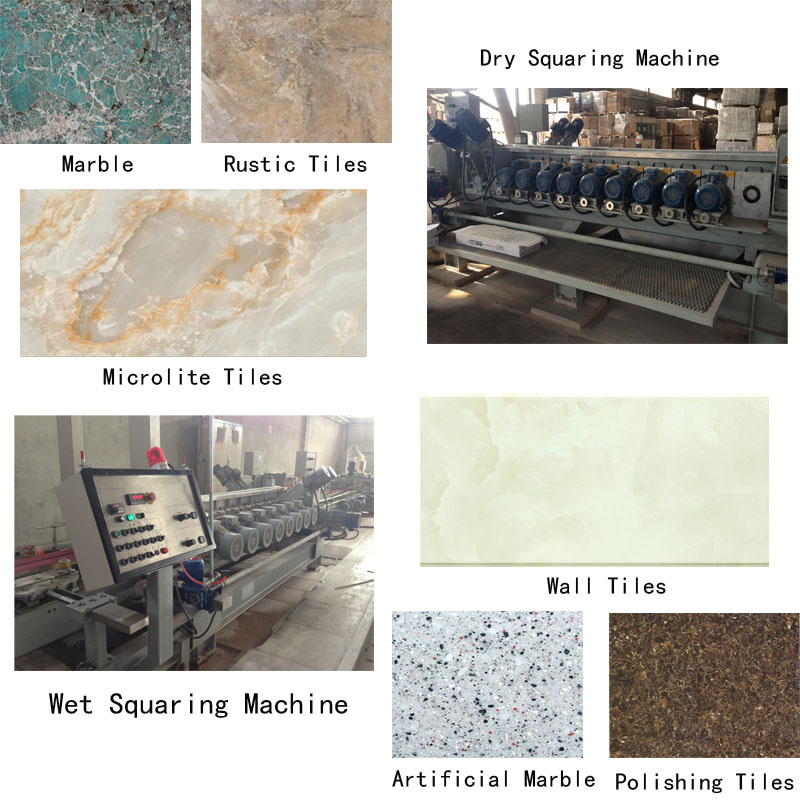

| Usage: | Squaring Ceramic Tile Edge |
Diamond squaring wheels are used to make modifying the uprightness of ceramic tiles four edges in order to achieve scheduled size. It is a necessary squaring tool for big size glaze ceramic tiles, porcelain tiles and polished porcelain tiles. The advantages of our diamond squaring wheels can be summarized as following:
Good sharpness, long working lifetime and low working noise.
Good uprightness and precise size of processed tiles edges without break and chipping.
Strict production process control and stable quality.
Individual formulation and grit match are available for different ceramic tiles quality.
Diamond squaring wheel is classified into diamond squaring peripheral wheel and diamond squaring disk wheel according to different grinding and cutting modes, and it is classified into metal-bond diamond squaring wheel and resin-bond diamond squaring wheel according to different bond used.
We can produce any required specs of diamond squaring wheels used on different ceramic squaring machines.
Why Choose Our HENKOOLEE?
1. A leading factory of diamond tools industry in China
2. Approved the best quality with very competitive price
3. Good sharpness, stable performance, high cutting efficiency and long lifespan
4. Strict quality control system, accept inspection by 3rd party, as ISO9001, ISO14001 and OHSAS18001 systems.
5. We have very experienced R&D engineers and we have strong ability to do ODM projects.
6. Custom design can be meet upon request, small trial order is available in any time, We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
7. Easy communication,HENKOOLEE professional sales team will always answer you in time, besides, friendly and helpful after sales service is always there for you.
| OuterDiameter (mm) | Inner Diameter Of Metal Body (mm) | Assemble Hole Screw Size (mm) | Assemble Hole Screw Distance (mm) | Segement Size (mm) |
| Φ310 | Φ150 | 4M12/6Φ13 | Φ180 | 9*10 |
| Φ150 | 6Φ13 | φΦ175 | 9*10 |
| Description | Outer Diameter (mm) | Segment Size (mm) |

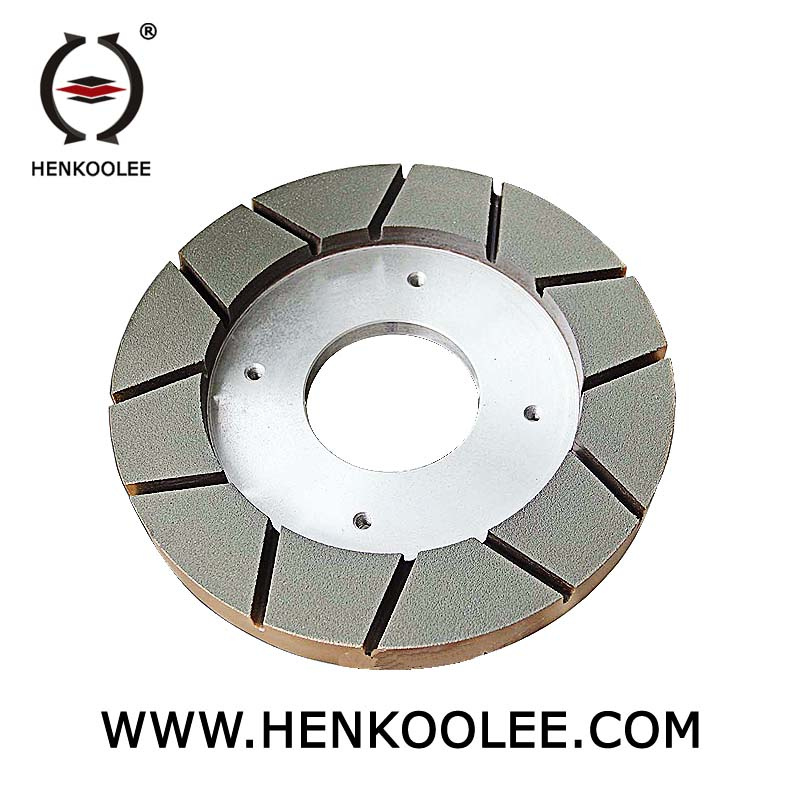

| Segmented Squaring Wheel | Φ150, Φ200, Φ250, Φ300, | 8x12, ,9x14 10x14 |

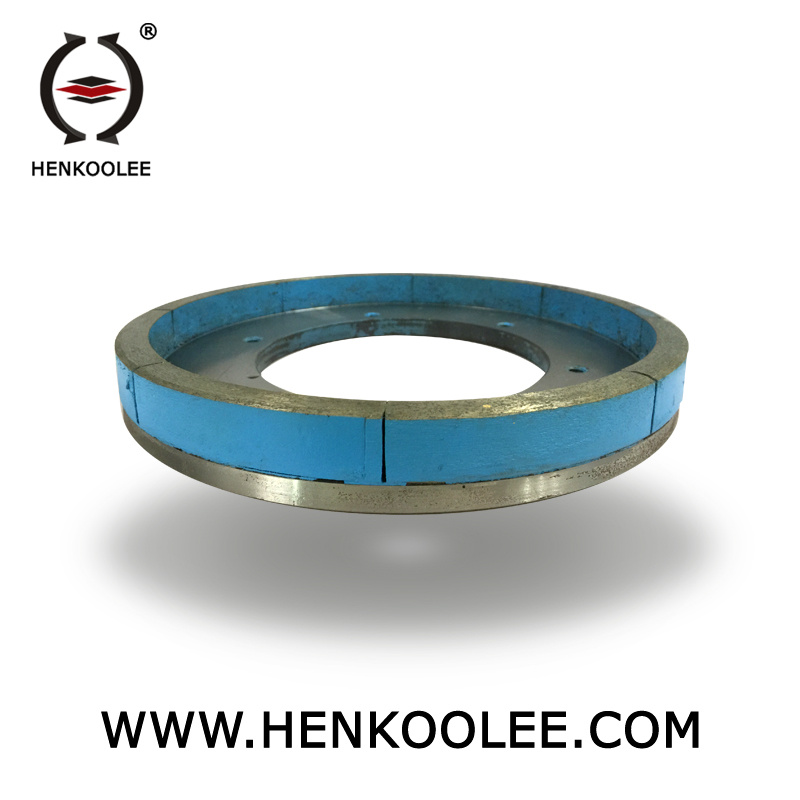

| Segment Continuous-Rim Squaring Wheel | Φ150, Φ200, Φ250, Φ300, | 11x12, 10x10, 8x12, 10x14 , 12x20 |

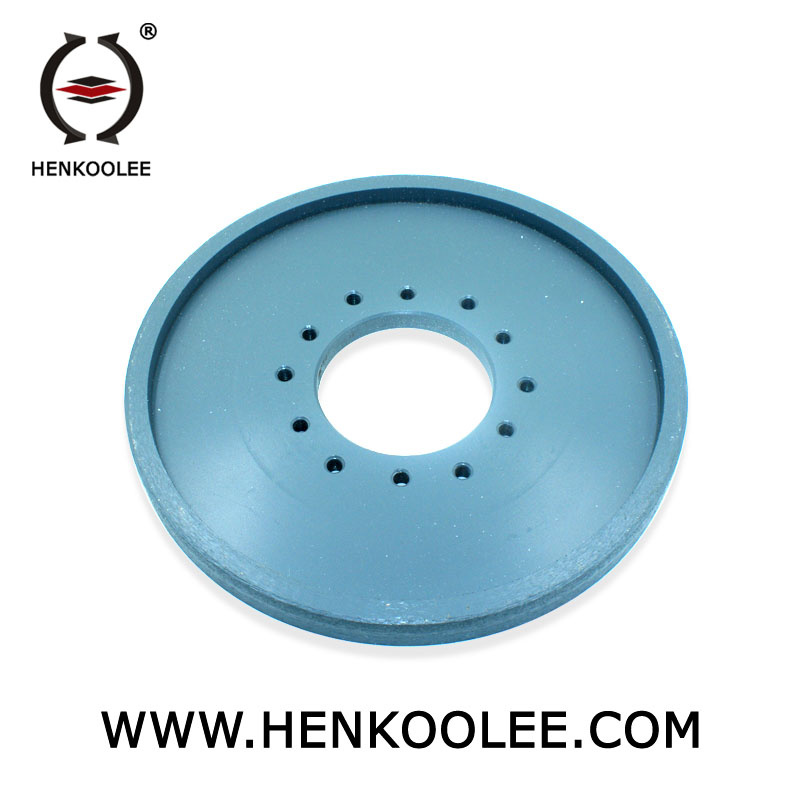

| Continuous Rim Squaring Wheel | Φ150, Φ200, Φ250,Φ300, | 8x12, 10x14, 12x14, 12x20 |
| Description | Spec (Outer Diameter-Working Width*Thickness) | Grit | Used For |

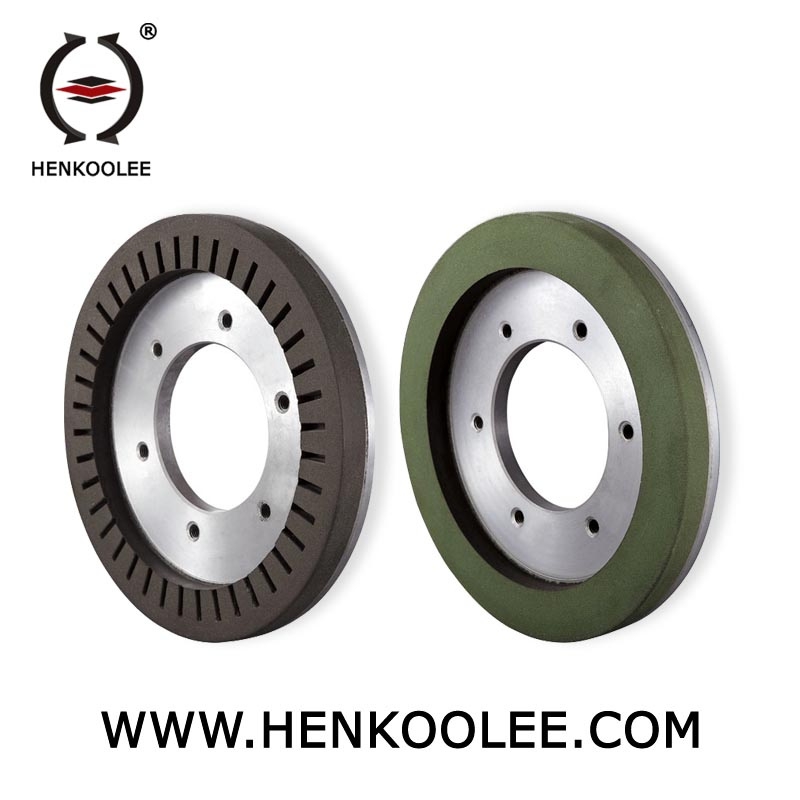

| Resin-Bond Diamond Squaring Wheel (Continuous Rim) | Φ200-25X15 Φ200-40X15 Φ250-25X15 Φ250-40X15 Φ300-40X15 | 80#,100# 120#,140# 170#,200#, 230#,270# | Fine Squaring |
| Resin-Bond Diamond Squaring Wheel (Working Layer With Flume) | Φ200-40X15 Φ250-25X15 Φ200-40X15 | 100#,120# 140#,170# | Fine Squaring |
