| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Drilling |
| Manufacturing Arts: |
Welding |
| Connector: |
Shank, M14, M16, 5/8"-11, Gas1/2"for CNC Machine |
Product Description
Application: Drilling granite and marble.
Segment: Crown ring (dia14-dia50) and segmented (dia60-dia152).
Wet use, center water feed.
Total length: 50mm, 80mm, 100mm, 120mm, 360mm.
Connection: Shank, M14, M16, 5/8"-11, GAS1/2"for CNC machine.
Advantage: Fast and smooth cutting, long lifetime.

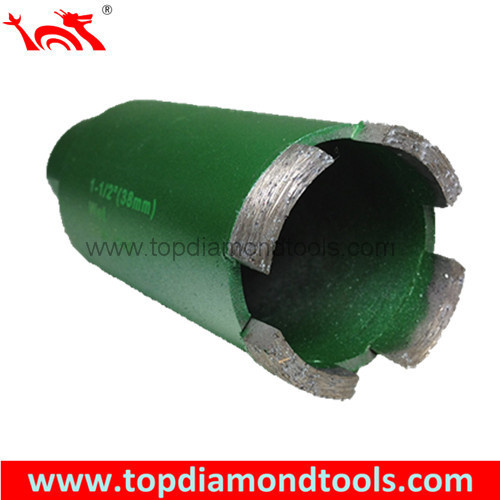

Diamond Core Drill Bit is a cylinder used for plunge cutting out materials. It is composed up of a heat treated steel core and at its top consists of a powder metal. Diamond dusts mesh in its segments. This allows the core bit to drill clean and fast while extracting the material.
ADVANTAGES:
Less loss of material
Minimum material deformation
Less heat generation
Faster drilling speed
Less chipping
Better finish quality
| Product name | Dimension(mm) | Usable Length(mm) | Suggested
R. P. M |
| Plane Bits | 6.0-6.5 | 40 | 4500 |
| Plane Bits | 8.0-9.0 | 40 | 4300 |
| Plane Bits | 10 | 40 | 4100 |
| Plane Bits | 12-16 | 40 | 3500-4000 |
| Segment Bits | 18 | 40-100 | 3500-4000 |
| Segment Bits | 19-32 | 40-100 | 3000-3500 |
| Segment Bits | 35-50 | 40-100 | 2500-2800 |
| Segment Bits | 51-100 | 40-100 | 1500-2500 |
| Segment Bits | 100-150 | 40-100 | 1500 |
| Crown Bits | 10-20 | 47 | 3500-4300 |
| Crown Bits | 20-35 | 47-100 | 3000-3500 |
| Crown Bits | 35-50 | 47-100 | 2500-2800 |
| Crown Bits | 50-60 | 47-100 | 2000-2500 |
Quanzhou TOP Diamond Tools Co., Ltd is one of the most professional manufacturers of top quality diamond tools in China with the management system certificate of ISO9001. All of our production and inspection are rigidly controlled according to the International Standard which guarantee our steady quality and reasonable cost of diamond tools, such as diamond saw blades, diamond segments, diamond wire saw, diamond / PCD cup wheels, diamond polishing pads, diamond grinding plate / pucks / plugs, diamond fickert / frankfurt, diamond core bits, router bits, brushes etc. They are widely used for cutting and grinding granite, marble, concrete, asphalt, ceramics, etc. With over 15 years of production and problem solving experience, we have been developing diamond tools in different applications featured with reliable quality and reasonable price as follows: 1. Diamond Tools for Concrete Flooring (from surface preparation up to final polishing) 2. Diamond Tools for Stone (from its extraction in the quarry, through slabbing, sawing, drilling, milling and surfacing, up to final polishing)3. Diamond Tools for Construction. Our goal is to guarantee our tools work efficiently for every customers always and increase the competition for theirs. We would like to thank all of our existing customers for their loyalty and support over the years. We would also like to welcome new customers and look forward to a long and prosperous future together.
Quanzhou TOP Diamond Tools Co., Ltd is one of the most professional manufacturers of top quality diamond tools in China with the management system certificate of ISO9001. All of our production and inspection are rigidly controlled according to the International Standard which guarantee our steady quality and reasonable cost of diamond tools, such as diamond saw blades, diamond segments, diamond wire saw, diamond / PCD cup wheels, diamond polishing pads, diamond grinding plate / pucks / plugs, diamond fickert / frankfurt, diamond core bits, router bits, brushes etc.
They are widely used for cutting and grinding granite, marble, concrete, asphalt, ceramics, etc.
With over 15 years of production and problem solving experience, we have been developing diamond tools in different applications featured with reliable quality and reasonable price as follows:
1. Diamond Tools for Concrete Flooring (from surface preparation up to final polishing)
2. Diamond Tools for Stone (from its extraction in the quarry, through slabbing, sawing, drilling, milling and surfacing, up to final polishing)
3. Diamond Tools for Construction.
Our goal is to guarantee our tools work efficiently for every customers always and increase the competition for theirs.
We would like to thank all of our existing customers for their loyalty and support over the years. We would also like to welcome new customers and look forward to a long and prosperous future together.
