| Prod Model: |
CH-0001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Blade Material: |
Diamond |
| Use Condition: |
Wet and Dry |
| Use: |
Cutting Granite, Marble |
| Kind: |
Diamond Wheel |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Cutting |
| Saw Blade External Diameter: |
105-35mm |
Product Description

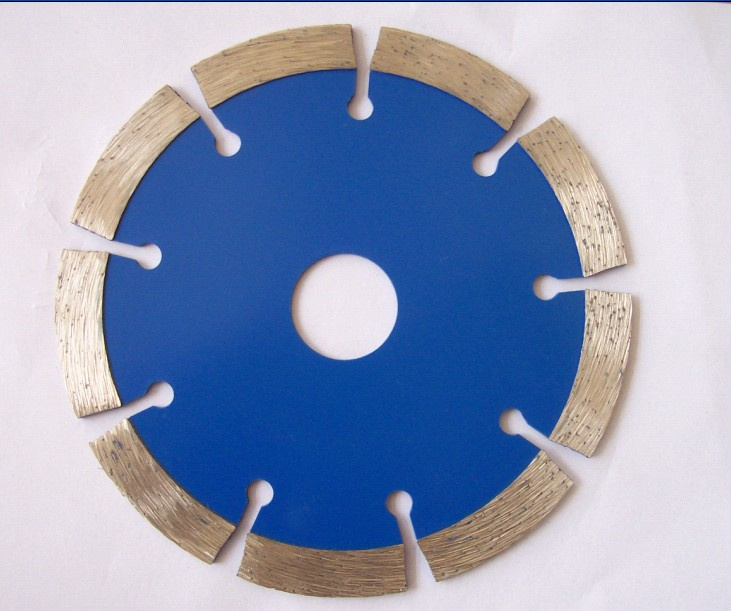

Segmented Diamond Saw Blade for Granite/Marble (CH-0001)Usage:
1. It is widely used for cutting the stones, porcelain, conctete, pavement bricks and asphalt.
2. Diamond powders are sintered to form the blade with extended life and better cutting results.
3. It is used with most types of angle grinders and marble cutting machines
Advantage:
1. Cutting shape: Fast and flat.
2. Fast crumbs without chipping
3. Remarkable performance
4. Long service life
| OUTER DIAMETER | HOLE DIAMETER | TEETH THICKNESS | TEETH WIDTH |
|
| INCH | MM | MM | MM | MM |
| 4.125 | 105 | 22.23/20/16 | 1.7 | 7 |
| 4.375 | 110 | 22.23/20/16 | 1.8 | 7 |
| 4.375 | 110 | 22.23/20/16 | 1.8 | 12 |
| 4.375 | 110 | 22.23/20/16 | 1.8 | 8 |
| 4.375 | 110 | 22.23/20/16 | 1.8 | 9 |
| 4.375 | 110 | 22.23/20/16 | 1.8 | 10 |
| 4.5 | 115 | 22.23/20/16 | 1.8 | 7 |
| 4.5 | 115 | 22.23/20/16 | 1.8 | 8 |
| 5 | 125 | 22.23/20/16 | 1.8 | 7 |
| 6 | 150 | 22.23/20/16 | 2 | 7 |
| 7 | 180 | 25.4/22.23/20 | 2.2 | 7 |
| 7 | 180 | 25.4/22.23/20 | 2.2 | 8 |
| 8 | 200 | 25.4/22.23 | 2.2 | 7 |
| 9 | 230 | 25.4/22.23 | 2.2 | 7 |
| 9 | 230 | 25.4/22.23 | 2.2 | 8 |
| 10 | 250 | 25.4/22.23 | 2.5 | 8 |
| 12 | 300 | 25.4/22.23 | 2.5 | 8 |
| 12 | 300 | 25.4/22.23 | 2.5 | 12 |
| 14 | 350 | 25.4/22.23 | 3.2 | 8 |
Zhejiang changheng tools co. Ltd is seated in hardware city -yongkang, it' S profession saw blade manufacturer. The product is involved with Tungsten carbide tipper circular saw blades, Diamond saw blade, mower saw blades etc, we can offer hundreds type of specification based on different saw blade. So far, the company covers an area over 30, 000 square meters and an annual production over 20, 000, 000 saw blades. The product will be exported many countries such as MID-east, Asia, Europe, America etc.
To ensure the good quality, the company adopts the most advanced technology and device from Japan and Germany. And make our work shop form one set completely speciialized production line. What' S more we also improve our management strategies on time and our company passed ISO2000 quality system Authentication in 2003, our product passed TUV certification.
The company will do its utmost to cultivate our famous brand and sincerely welcome merchants from home and abroad to cooperate with us!
