| Prod Model: |
PFT0456 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Diamond Saw Blade |
| Body Material: |
65mn Steel |
| Cutting For: |
Granite, Hard Concrete and Bricks |
| Processing: |
Cold Pressed/ Hot Pressed |
| Surface Treatment: |
Spray Paint |
Product Description
Usage:
1. It is widely used for cutting the stones ,porcelain ,concrete ,pavement bricks and asphalt.
2. Diamond powders are sintered to form the blade with extended life and better cutting results.
3. It is used with most types of angle grinders and marble cutting machines
Specification
| Sintered Segmented Diamond Blade |
| Application:Used for cutting granite, marble, bricks, concrete and other stones. |
| Diameter (D) | Bore(H) | Thickness | Segment Size | Segment No. |
| Inch | MM | (T) | (H) | (L) |
| 4" | 105 | 16/20/22.23 | 1.2 | 1.8 | 7 | 35 | 8 |
| 4.3" | 110 | 16/20/22.23 | 1.4 | 1.9 | 7 | 32.3 | 9 |
| 4.5" | 115 | 20/22.23 | 1.4 | 1.9 | 7 | 38.3 | 8 |
| 5" | 125 | 20/22.23 | 1.4 | 1.9 | 7 | 37.5 | 9 |
| 6" | 150 | 20/22.23 | 1.4 | 1.9 | 7 | 33.5 | 12 |
| 7" | 180 | 22.23/25.4/30 | 1.6 | 2.2 | 7 | 35 | 14 |
| 8" | 200 | 22.23/25.4/30/50 | 1.8 | 2.4 | 7 | 39.2 | 14 |
| 9" | 230 | 22.23/25.4/30/50 | 1.8 | 2.4 | 7.2 | 34.4 | 16/18 |
| 10" | 250 | 22.23/25.4/30/50 | 2.2 | 3 | 7.5 | 37 | 16/18 |
| 12" | 300 | 22.23/25.4/30/50 | 2.2 | 3.2 | 7.5 | 35 | 22 |
| 14" | 350 | 22.23/25.4/30/50 | 2.2/2.4 | 3.2 | 7.5 | 40 | 24 |
| Continuous Rim Diamond Blade |
| Application:Used for cutting granite, marble,Porcelain and other stones, with WET cutting. |
|
|
|
|
|
|
| Diameter (D) | Bore | Segment Height | Segment Thickness |
| Inch | MM | Inch | MM |
| 4" | 105 | 5/8" 7/8" | 16/20/22.23 | 7/10 | 1.8 |
| 4.3" | 110 | 5/8" 7/8" | 16/20/22.23 | 7/10 | 1.8 |
| 4.5" | 115 | 7/8" | 22.23 | 7/10 | 1.9 |
| 5" | 125 | 7/8" | 22.23 | 7/10 | 1.9 |
| 6" | 150 | 7/8" | 22.23 | 7/10 | 2 |
| 7" | 180 | 7/8"/1 | 22.23/25.4 | 7/10 | 2.2 |
| 8" | 200 | 7/8"/1 | 22.23/25.4 | 7/10 | 2.4 |
| 9" | 230 | 7/8"/1 | 22.23/25.4 | 7/10 | 2.4 |
| 10" | 250 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3 |
| 12" | 300 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3.2 |
| 14" | 350 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3.2 |
| 16" | 400 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3.4 |

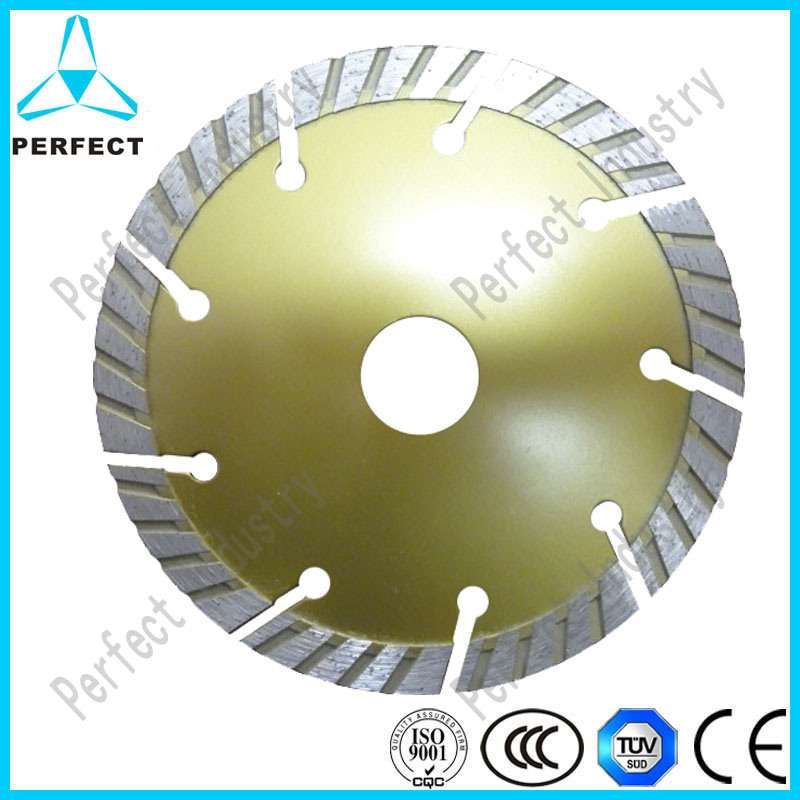

| Strength Turbo Diamond Blade |
| Application:Used for cutting granite, marble,Porcelain and other stones, with WET cutting. |
| Diameter (D) | Bore | Segment Height | Segment Thickness |
| Inch | MM | Inch | MM |
| 4" | 105 | 5/8" 7/8" | 16/20/22.23 | 7/10/12 | 2 |
| 4.3" | 110 | 5/8" 7/8" | 16/20/22.23 | 7/10/12 | 2 |
| 4.5" | 115 | 7/8" | 22.23 | 7/10/12 | 2.2 |
| 5" | 125 | 7/8" | 22.23 | 7/10/12 | 2.3 |
| 6" | 150 | 7/8" | 22.23 | 7/10/12 | 2.2 |
| 7" | 180 | 7/8"/1 | 22.23/25.4 | 7/10/12 | 2.4 |
| 8" | 200 | 7/8"/1 | 22.23/25.4 | 39367 | 2.6 |
| 9" | 230 | 7/8"/1 | 22.23/25.4 | 7.5/10/12 | 2.8 |
| 10" | 250 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7.5/10/12 | 3 |
| 12" | 300 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 8/10/12 | 3.2 |
| 14" | 350 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 8/10/12 | 3.4 |
| 16" | 400 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 8/10/12 | 3.6×8.0 |
Other specification is also available according to your requirements. (OEM, ODM )
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!
Shipping
1. FedEx/DHL/UPS/TNT for samples
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
