Product Description

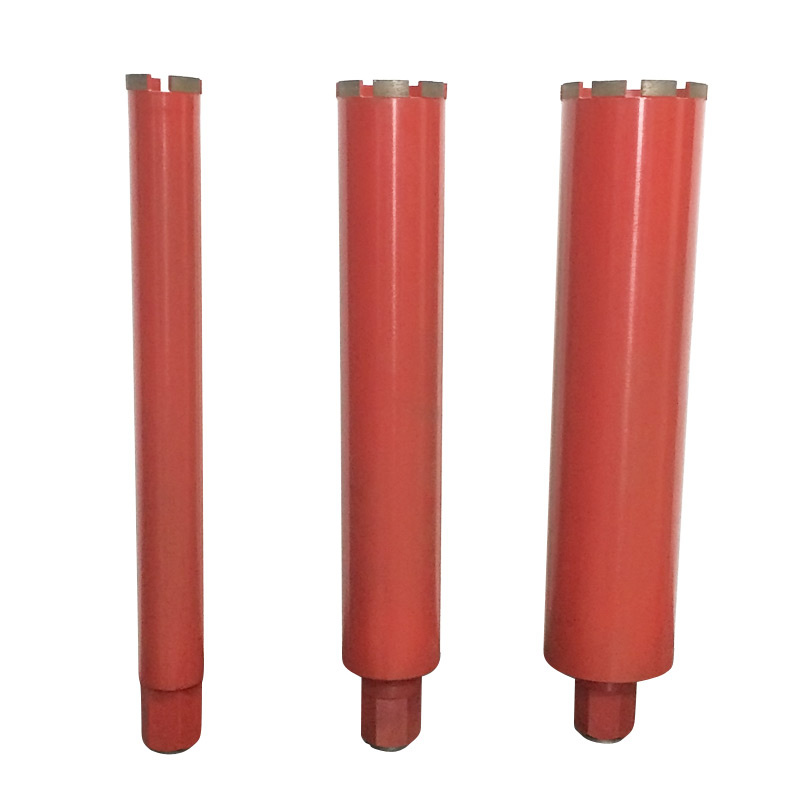

Professional Performance Diamond Wet Core Drills for Reinforced Concrete1. Thinner diamond segment and thinner tube wall can easily reduce the resistance and increase the drilling speed (compare with the assembly type)
2. Provide 20% higher cutting performance, particularly in difficult operating conditions.
3. Very fast cutting speed and low cutting pressure.
4. Different connection end for different drilling machine.
5. Especially effective in drilling through reinforced concrete.

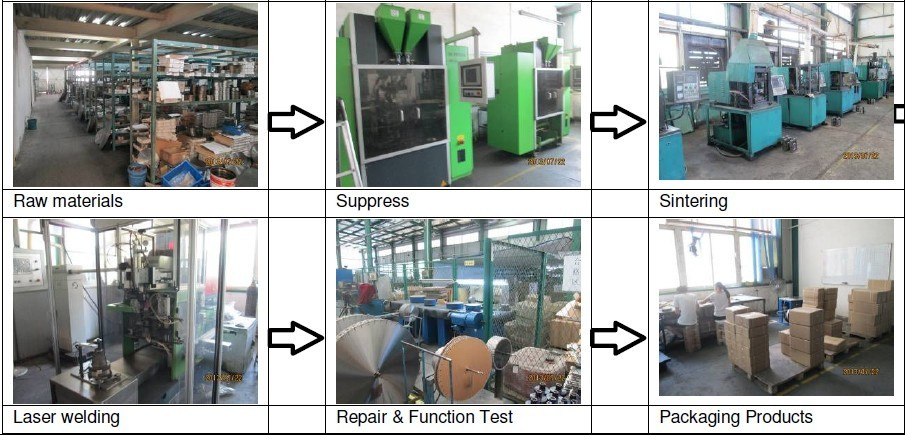

WUHAN WAN BANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999.
As a leading manufacturer in professional diamond tools, Wan bang specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
| Diameter | Segment | Grade | Cutting materials |
| inch | MM | Size(MM) | No. |
| 1" | Φ 25.4 | ring*10 | | professional | Concrete |
| 1.5" | Φ 38 | ring*10 | | professional | Concrete |
| 2" | Φ 50.8 | 22*3*10 | 5 | professional | Concrete |
| 2.5" | Φ 64 | 24*3*10 | 6 | professional | Concrete |
| 3" | Φ 76 | 24*3.5*10 | 7 | professional | Concrete |
| 3.5" | Φ 89 | 24*3.5*10 | 8 | professional | Concrete |
| 4" | Φ 101 | 24*3.5*10 | 9 | professional | Concrete |
| 4.5" | Φ 115 | 24*3.5*10 | 10 | professional | Concrete |
| 5" | Φ 125 | 24*3.5*10 | 11 | professional | Concrete |
| 5.5" | Φ 140 | 24*3.5*10 | 11 | professional | Concrete |
| 6" | Φ 152.4 | 24*4.0*10 | 12 | professional | Concrete |
| 6.5" | Φ165 | 24*4.0*10 | 14 | professional | Concrete |
| 7" | Φ178 | 24*4.0*10 | 13 | professional | Concrete |
| 8" | Φ203 | 24*4.0*10 | 15 | professional | Concrete |
| 9" | Φ228 | 24*4.5*10 | 16 | professional | Concrete |
| 10" | Φ254 | 24*4.5*10 | 17 | professional | Concrete |
| 12" | Φ305 | 24*5*10 | 21 | professional | Concrete |
| 14" | Φ355 | 24*5*10 | 23 | professional | Concrete |
Wuhan Wanbang Laser Diamond Tools Co., Ltd. A young and dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999.
As a leading company in professional diamond tools. Wanbang specialized in producing and developing all kinds of laser welded diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wanbang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Our product including:
Laser welded diamond saw blades for general purpose, concrete, wall, asphalt, brick, Laser welded diamond core bit for wall, concrete and engineering construction.
Diamond saw blades for granite, marble, sandstone, concrete., Diamond hot-pressed (sintered) blades, Diamond electroplated blades, Ring saw, Wire saw, Tuck point blades, Diamond cup wheel and all size of segments for circular saw, gangsaw, wire saw and so on...
We hope our product will bring pleasure in your cutting works.
If you have any interest in our product, please let us know all details (dimension and application) without hesitate. We will try our best to meet your request. If you have time to visit China, you are welcome to visit our company. It is very convenient to get to.
