| Hardness: |
92.5hra |
| Size: |
Acceptable to Be Customized |
| Type: |
Straight Hand Type |
| Cutter Head Material: |
Carbide Alloy |
| Handle Material: |
Iron |
| Cutting Thickness: |
8~12mm |
| Color: |
White |
| Customized: |
Non-Customized |
| Usage: |
Ceramic ,Granite |
| Certification: |
SGS |
Product Description
Product features:1. Best price and excellent customer service.
2. High strength ,high hardness and high stability and long life cycle.
3. We have the most advanced automatic production line with precision machine.
4.Our materials are independent research and development, our blades are competitived, and has a lot of advantage with other counterparts.
5. Fast delivery.
6. Low noise and environment friendly.
7. Can be customized by client.
Types for choosing:
| Ceramic tile knife Type and Grade | |
| |
| Type | Basic size(mm) | Grade | |

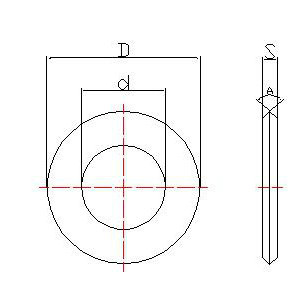

Outside diameter
(D) | Inside diameter (d) | Thickness
(S) | Angle
(A) | ZC01 | ZC02 | ZC03 | ZC04 | |
| The shortest service life(≥m) | |
| Φ22×Φ14×2 | 22 | 14 | 2 | 90°
100° 110° 120° | ≥100 | ≥400 | ≥1000 | ≥1800 | |
| Φ22×Φ6×1.8 | 22 | 6 | 1.8 | |
| Φ22×Φ6×4.9 | 22 | 6 | 4.9 | |
| Φ22×Φ6×2 | 22 | 6 | 2 | |
| Φ22×Φ10.5×2 | 22 | 10.5 | 2 | |
| Φ18×Φ6×3 | 18 | 6 | 3 | |
| Φ16×Φ6×2 | 16 | 6 | 2 | |
| Φ16×Φ6×3 | 16 | 6 | 3 | |
| Φ14×Φ4×3 | 14 | 4 | 3 | |
| Φ12×Φ3×2.5 | 12 | 3 | 2.5 | |
| Φ12×Φ3×3 | 12 | 3 | 3 | |
| Φ10×Φ4×2.8 | 10 | 4 | 2.8 | |
| Many other sizes you can contact us | |
Tolerance of OD:(0±0.1)mm;
Tolerance of ID:(0+0.05)mm;
Tolerance of Thickness :(0-0.05)mm;
Can be produced according to customer requirements, | |
About Transportation:
FAQ:1.About price: I would quote the most favorable price for you and we may consider discounts for bulk orders of individual products.
2.About our minimum order requirement :we will indicate the MOQ for each item in the quotation sheet. We accept the sample and trial order. If the quantity of single item can't reach the MOQ, the price should be sample price.
About delivery: for the stock items, we can arrange the shipment within 3days after received your payment. For the customized items, we will indicate the delivery time in the quotation sheet.
4.About our quality: yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
Company info:We are professional Tungsten carbide manufacturer in China. Main products are glass cutting wheels , Ceramic tile cutting blades ,CNC blades ,Tungsten Carbide strips and plates .Our products sell well in more than 20 countries around the world.
And Our glass cutting wheel and the tile cutting wheels are "Super Star "products with highly evaluated by the customers.Some SAMPLES can be sent if you need for testing. Contact with me, let's talk details!How to Contact us?Alen Liao
Oversea sales manager
Tellphone Number: 86-13054121667
Add: No.209, South of Huanghe Road, Tianyuan District , Zhuzhou, Hunan, China.
Postal:412000
Zhuzhou Zhongcheng new Master Technology Ltd founded in 2013 Zhuhou Jingu Industrial Park, is specializing in mental carbide research, production and sale. Our inserts are widely used in the fields of mechanical manufacturing, aerospace, metallurgical and chemical industry, and construction.
We are specialized in tungsten carbide glass cutter wheel, carbide fiber cutter, CNC blades, tungsten carbide brazed tips, tungsten carbide indexable inserts, tungsten carbide molds, tungsten carbidewear parts. Meanwhile, customized products are available due to your drawings or samples. Our products have spread not in domestic but in the whole world, Including South-east Asia, Europe and America with a good reputation.
Our Policy_Quality and Customer Fist, Technology-advanced, Management Honestly.
Our Principle_Profession leads to excellence. The Quality is first.
Our products are spoken highly of products quality and considerate service by a lot of clients.
Sincerely welcome to visit our company for cooperation.
