| Prod Model: |
MTW-16/24/32/36/48/64ect |
| Name: |

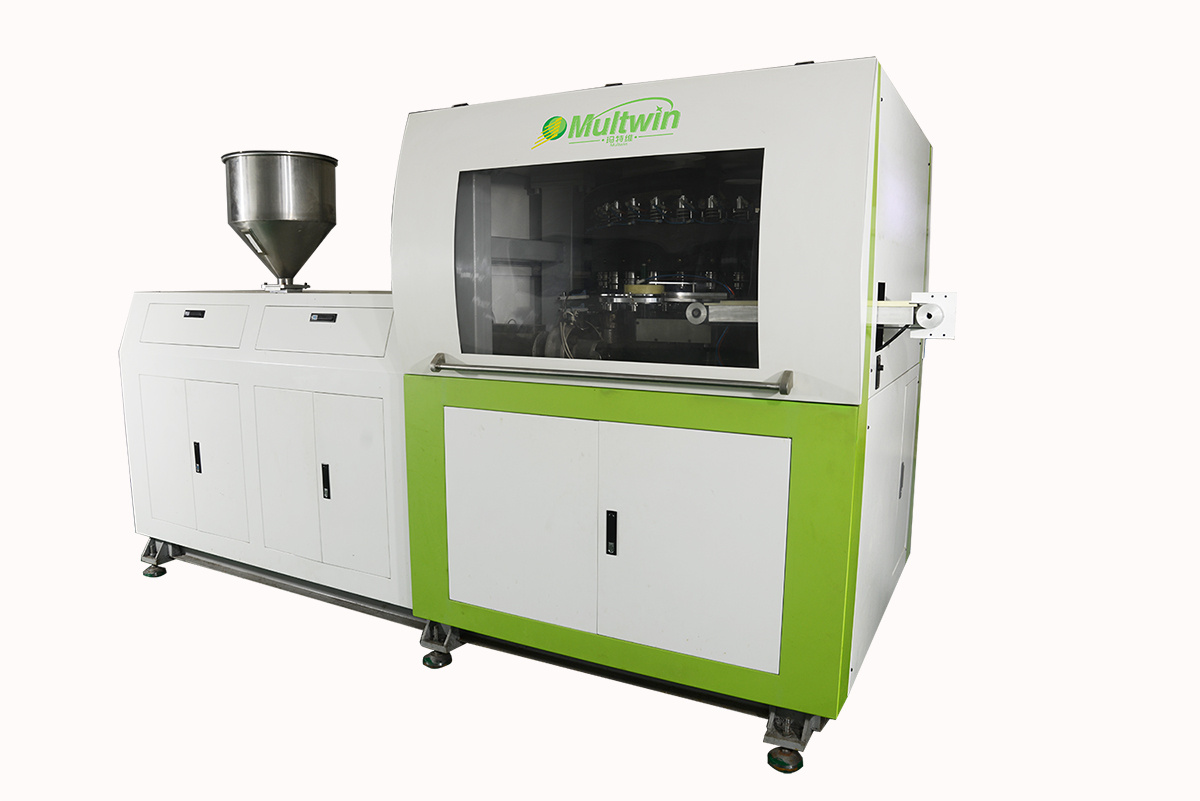

Automatic Plastic Bottle Cap Molding Machtine |
| Company Name: |
Shenzhen Multwin Technology Co,.Ltd. |
| Material: |
Plastic |
| Logo Printing: |
With Logo Printing |
| Recycled: |
Unrecycled |
| Flexibility: |
Soft |
| Technics: |
Bottle Blowing |
| Type: |
Plastric Madeing Machine |
| Application: |
Plastic Bottle Caps |
Product Description
Shenzhen Jiarun Precision Science&Technology Co,.Ltd located in Songgang town,Bao' an district ,shenzhen City,Chain.Founded in 1997.which is a modern high-tech enterprise with integration of scientific research and development and manufacturing.
Jiarun Science&Technology Co.,Ltd is the first Company that passed ISO9001 qualiy managment system certification in Automatic plastic bottle cap molding machine Industry;We are a factory specializd production Mould and Full-Automatic compression plastic bottle cap machine.
We research and development major production MTW-16,MTW-24,MTW-32,MTW-36,MTW-48

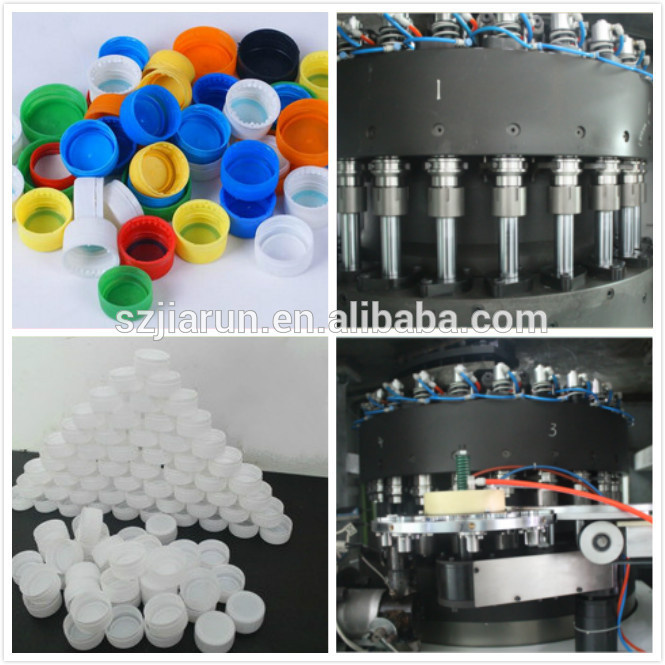

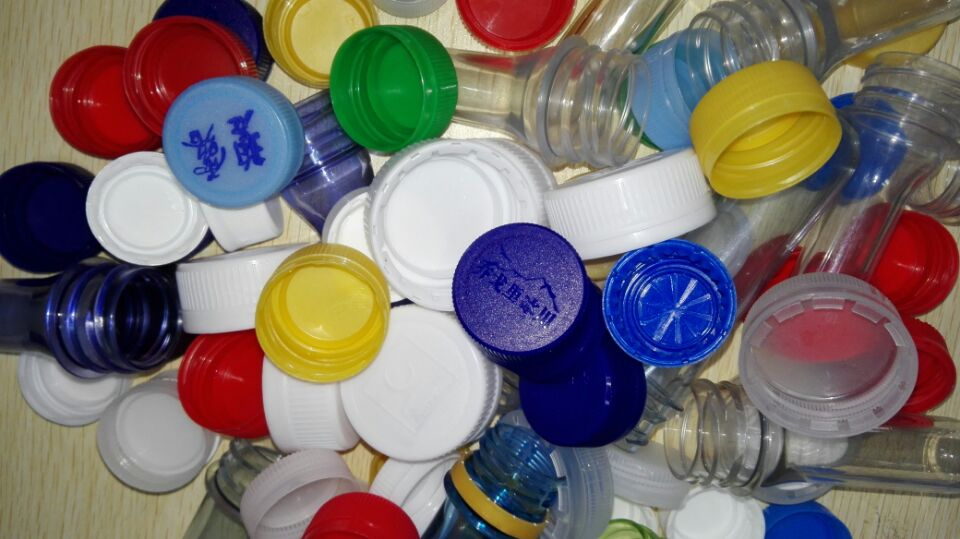

etc high quality compression plastic bottle cap machine.,and a variety of Matching mould for Mineral water,beverage,medical treatment bottle cap,like 1881,2925,3025,38and so on.
We have a hard work and positive research and development,manufacturing and sales team,having our own core technology and have 20 years rich experience in high processing and manufacturing.Our company taking the customers as the center,Quality as the fundamental, Continuous improvement is our purpose,at the same time,provide good pre-market and after-sales services, Based on Domestic customers and developmenrt of Southeat-Asia and other countries in the would.
| Type | Raw material | Number of
mold cavity | Maximum prodution
capacity | Cap Height |
| MTW-16 | PP/PE | 16 | 12000-14000(Φ30MM) | 10-25mm |
| Cap Diameter | Actual power | Voltage | Compressed air
(self-provide) | weight | Dimensions(LWH) |
| Φ26-Φ38 | 45Kw | 220V 60Hz/380V 50Hz | 0.8Mpa 1.50m³ | 3.5T | 3000*1500*2100mm |
| Type | Raw material | Number of
mold cavity | Maximum prodution
capacity | Cap Height |
| MTW-24 | PP/PE | 24 | 17000-21000(Φ30MM) | 10-25mm |
| Cap Diameter | Actual power | Voltage | Compressed air
(self-provide) | weight | Dimensions(LWH) |
| Φ26-Φ38 | 35Kw | 220V 60Hz/380V 50Hz | 0.8Mpa 1.50m³ | 4.5T | 3500*1700*2100mm |
| Type | Raw material | Number of
mold cavity | Maximum prodution
capacity | Cap Diameter |
| MTW-32 | PP/PE | 32 | 23000-28000(Φ30MM) | Φ26-Φ38 |
| Actual power | Voltage | Compressed air
(self-provide) | weight | Dimensions(LWH) |
| 45Kw | 220V 60Hz/380V 50Hz | 0.8Mpa 2.0m³ | 6T |
4500*1900*2200mm
|
| Type | Raw material | Number of
mold cavity | Maximum prodution
capacity | Cap Diameter |
| MTW-36 | PP/PE | 36 | 26000-30000(Φ30MM) | Φ26-Φ38 |
| Actual power | Voltage | Compressed air
(self-provide) | weight | Dimensions(LWH) |
| 85Kw | 220V 60Hz/380V 50Hz | 0.8Mpa 2.0m³ | 11T |
5500*2000*2200mm
|

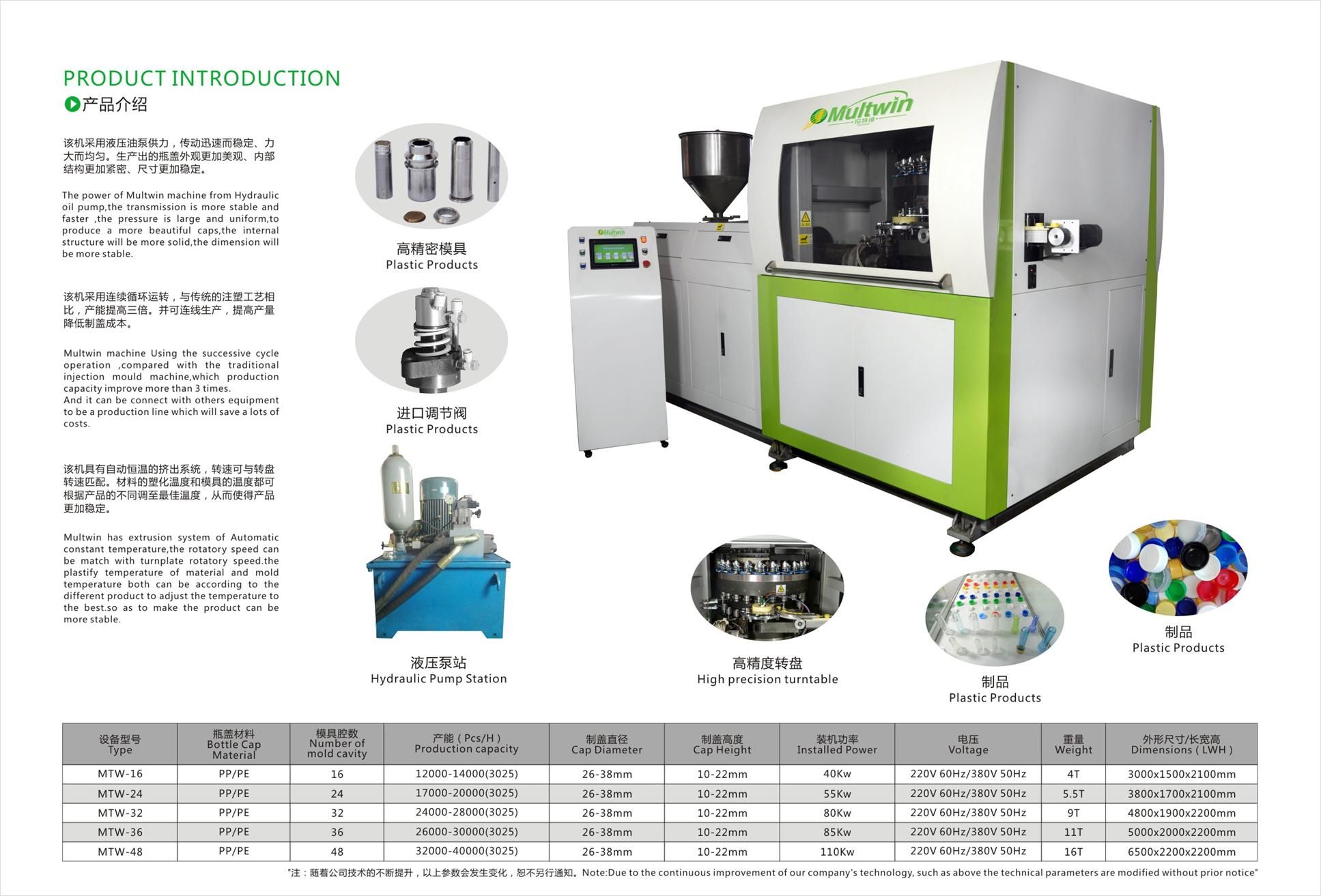

| Type | Raw material | Number of mold cavity | maximum production capacity | Cap Diameter | Cap Height |
| MTW-48 | PP/PE | 48 | 31000-40000(ø30mm) | ø26-ø38 | 10-25mm |
| Actual power | Voltage | compressed air (self-provide) | weight | Dimendions(LWH) |
| 55KW | 220V 60Hz/380V 50Hz | 1.0Mpa 3.0m³ | 6.5T | 5500x1900x2200mm |
| Type | Raw material | Number of mold cavity | maximum production capacity | Cap Diameter | Cap Height |
| MTW-64 | PP/PE | 64 | 42000-60000(ø30mm) | ø26-ø38 | 10-25mm |
| Actual power | Voltage | compressed air (self-provide) | weight | Dimendions(LWH) |
| 70KW | 220V 60Hz/380V 50Hz | 1.0Mpa 3.0m³ | 7T | 6500x2000x2200mm |
Advantages:
1.high Efficiency.
Using the successive cyclic operation,compared with the traditional injection molding machine ,the same power output increases more than 3 times.
2.Energy conservation.the main energy of plastic material is from the extrusion screw and mechanical friction material ,not the electric heating unit from a plasticizing screw ,to reduce electricity so as to achieve the effect of saving energy.
3.Quality stability.The use of hydraulic
pump for power transmission,rapid and stable,force large and uniform,to produce a more stable product size.
4.Low loss.No injection molding ,
Compression molding produce feed point there is no hot runner waste,to improve the utilization ration of raw materials by 98%.
5.Flexible manpower line:simple
Operation,and bottle cap check in line,Cap Compression Molding Machine connect with others equipment to be a production line,can save labor cost.
