| Prod Model: |
OCL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Insulation Class: |
H |
| Starting System: |
Electric Start |
| Color: |
Green, Yellow, Blue, Ect |
| Rated Current: |
10A/2000A |
| Control System: |
Intelligent Control |
| Rated Frequency: |
50Hz/60Hz |
| Protection: |
IP22 |
| Rated Voltage: |
220/400V |
| Guarranty: |
1 Year or 1000 Running Hours |
| Rated Speed: |
1500rpm/1800rpm |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
| Excitation Mode: |
Brushless Self-Excited |
Product Description

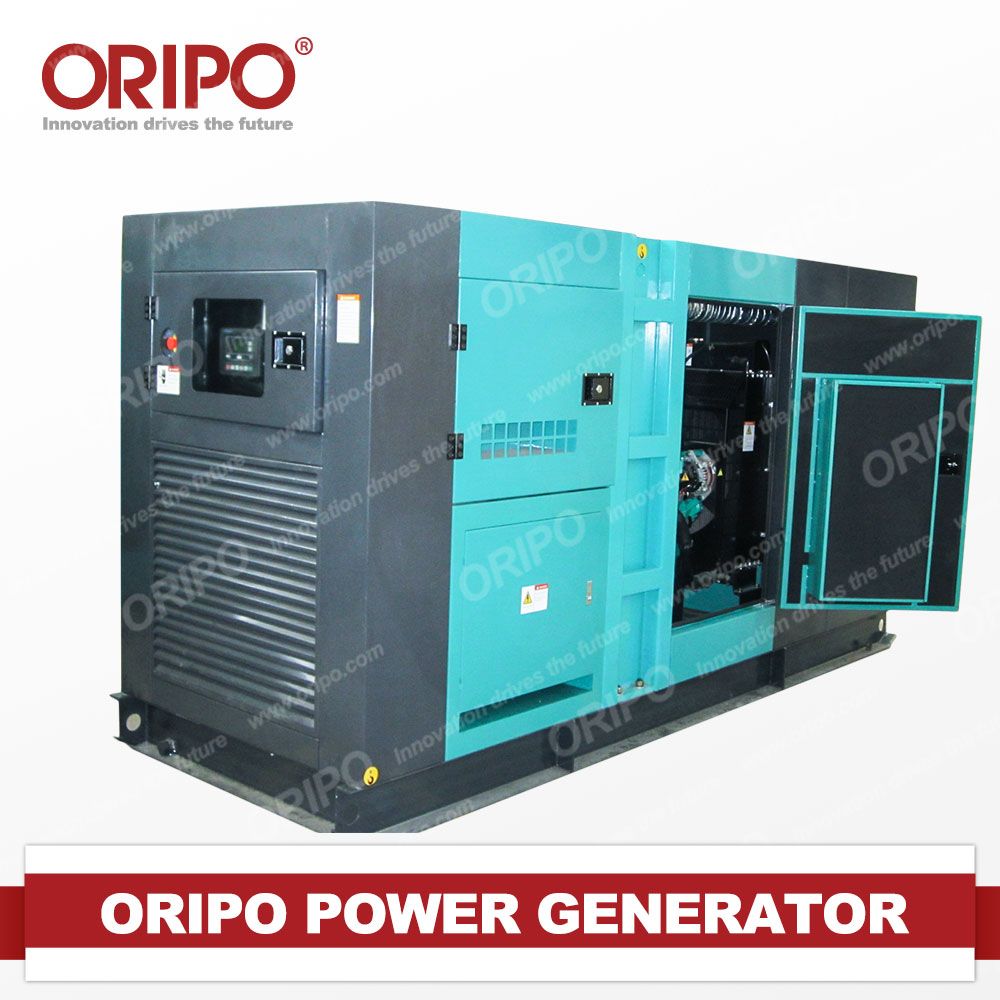

Silent Diesel Generator Set 3-Phase Power Tools:
Product Features:
1.With famous New Engine.
2.100% Copper Alternator Generator.
3.Good Quality and Rapid Service.
4.Lasted 8 Hours Running Fuel Tank.
5.Fuel Less Generator.
6.If With ATS, Can Be Automatic Started When Out Of Electric Supply.
Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER |
| kVA | KW | kVA | KW |
| OCL-1650 | 1650 | 1320 | 1500 | 1200 | KTA50-GS8 | LTG454A1 | 6110 |
220/380V, AC, 50Hz, 0.8PF (lag), Three phase four wire
Generator set specifications
| Governor Class | ISO8528 G3 |
| Potential Drop | 1% |
| Steady Voltage Regulation | 1% |
| Frequency Drop | Synchronous(0%) |
| Steady-state Frequency | 0.25% |
| R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
| Fuel Consumption Rate ,g/kw.H(L/hr) | 205 (293.67) |
| Starting Battery Capacity ,A/hrhhr | 200*4 |
| Total Coolant Capacity ,L | 330 |
| Fuel Capacity (base tank),L | N/A |
Engine Data
| Model | KTA50-GS8 |
| Type | "V" Type 16 Cylinder,4 Cycle |
| Displacement ,L | 50.3 |
| Compression Ration | 14.9:1 |
| Aspiration | Turbo, Water / Air Cooling |
| Fuel System | PT type Fuel Pump,EFC Electronic Governor |
| Bore*Stroke(mm) | 159*159 |
| Rated Speed ,rpm | 1500 |
| Governor Type | Electronic |
| Starting Voltage | 24V ,Negative ground |
| Battery Charging System | 24V 35A |
| Lubricant Capacity ,L | 204 |
| Coolant Capacity, L | 33 |
Alternator Data
| Protection Class | IP21 |
| Insulation Class | Class H |
| Temperature Rise in Standard | 125 ºC(When Ambient Temp.Is 40 ºC) |
| Excitation Type | Brushless & Self-excited |
| Waveform Distortion | No load<1.5% Non-Distorting balanced linear load<5% |
| Telephone Interference(TIF) | <50 |
| Telephone Interference(THF) | <2% |
Exhaust System
| Exhaust air flow | 4350 L/S |
| Exhaust Temperature | 510ºC |
| Max Back Pressure | 10kPa |
Air Intake System
| Max Intake Restriction | 6.35 kPa |
| Burning Capacity | 1655 L/S |
| Air Flow | 36000 L/S |
Lubricant System
| Total Lubricant Capacity | 204L |
| Lubricant Consumption | ≤4G/kwh |
| Engine Oil Tank Capacity | 178L |
| Oil Pressure at Rated Speed | 345-483 kPa |
Cooling System
| Total Coolant Capacity | 330L |
| Thermostat | 82-93ºC |
| Max Water Temperature | 104ºC |
Company profile:
Established in 1998,Foshan Oripo Power Engineering Co.,Ltd is one of the leading worldwide manufactories of diesel generator set,with over 20,000 square meters factory and nearly 400 staffs.Headquarter is located in Foshan city,adjacent to Guangzhou which is the rede c enter of Guangdong province,other 17 branches all over domestic and oversea market.
We are mainly deals in the famous brand deisel generator sets,such as Cummins,Lovol,Yuchai,Jichai and so on.All generator set can match with different brand alternators,such as,LEADTECH,Stamford,Marathon,Leroy-Somer,etc.
1.What's the power range of diesel generator? Answer:Power range from 18-2000kw,23-2500kva. 2.What's the delivery time? Answer:in 10 days after get the deposit. 3.What's the payment term? Answer:1.we accept T/T,and 30% T/T as the deposit,the balance should be paid before delivery. 2.irrevocable L/C at sight. 4.What's your warranty? Answer:1000 working hours or 1 year whichever comes first. 5.What's your MOQ? Answer:1 set 6.What's the frequency of diesel generator set? Answer:50/60Hz 7.What's the voltage of your diesel generator set? Answer:the voltage is 220/380V,230/400V,240/415V or as your request.
