| Prod Model: |
R10P |
| Frequency Response: |
55 Hz ~ 18kHz (+3 dB ) 50 Hz ~ 20kHz (-10dB ) |
| Nominal Cverage: |
80°× 50° |
| Sensitivity: |
118dB Spl,124 dB Spl Peak |
| Power Rating: |
400W |
| Nominal Impedance: |
8 Ohm |
| Maximum Spl: |
118dB Spl,124 dB Spl Peak |
| Power Requirement: |
100V-120V ~/ 200V-240V~50-60Hz |
| Net Weight: |
24kg |
| Cooling System: |
Fan From Back From Front, Forced Cooling |
| Output Electric Circuit: |
D Type Circuit |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
SGS |
| THD: |
<0.005% |
| Monitor: |
None |
Product Description

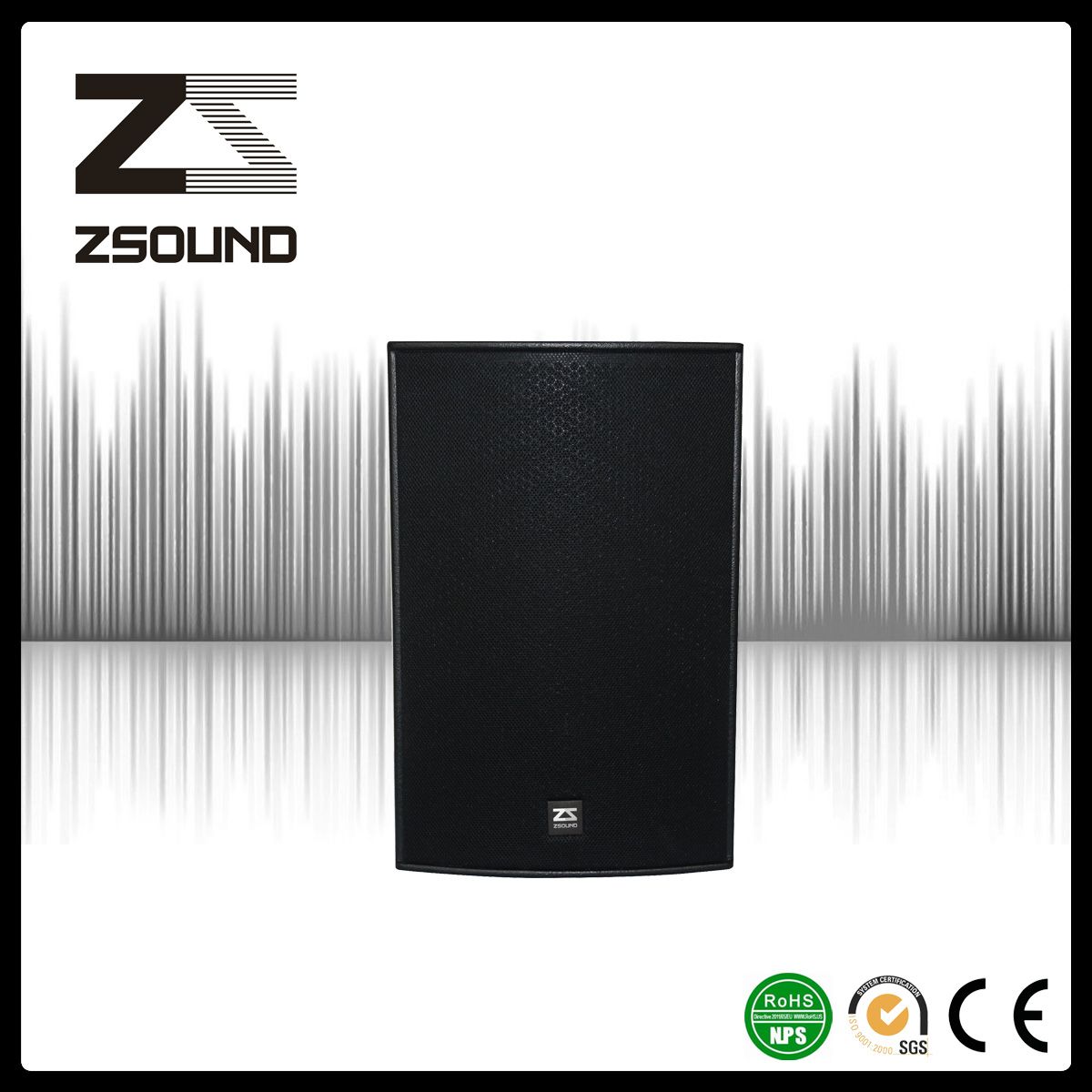

Single 10" Active Two-Way Loudspeaker Professional SpeakerR Series is two full range selfpower speaker, mainly designed as FOH and monitor. The coverage of HF horn is 80°×50°. And it Built-in voltage toggle switch for voltage requirements in different countries. It supports a variety of signal input. Such as MIC and LINE. It has a volume control and with attenuation value. And it is suitable for Auto Show, multi-function hall and small hall show.
Feature:
Two way selfpower full range speaker
Elastic bass
Long throw rubber edge LF driver
Rotatable 80° × 50 °directivity horn
Applications:Small FOH
Stage monitor
Near-field sound

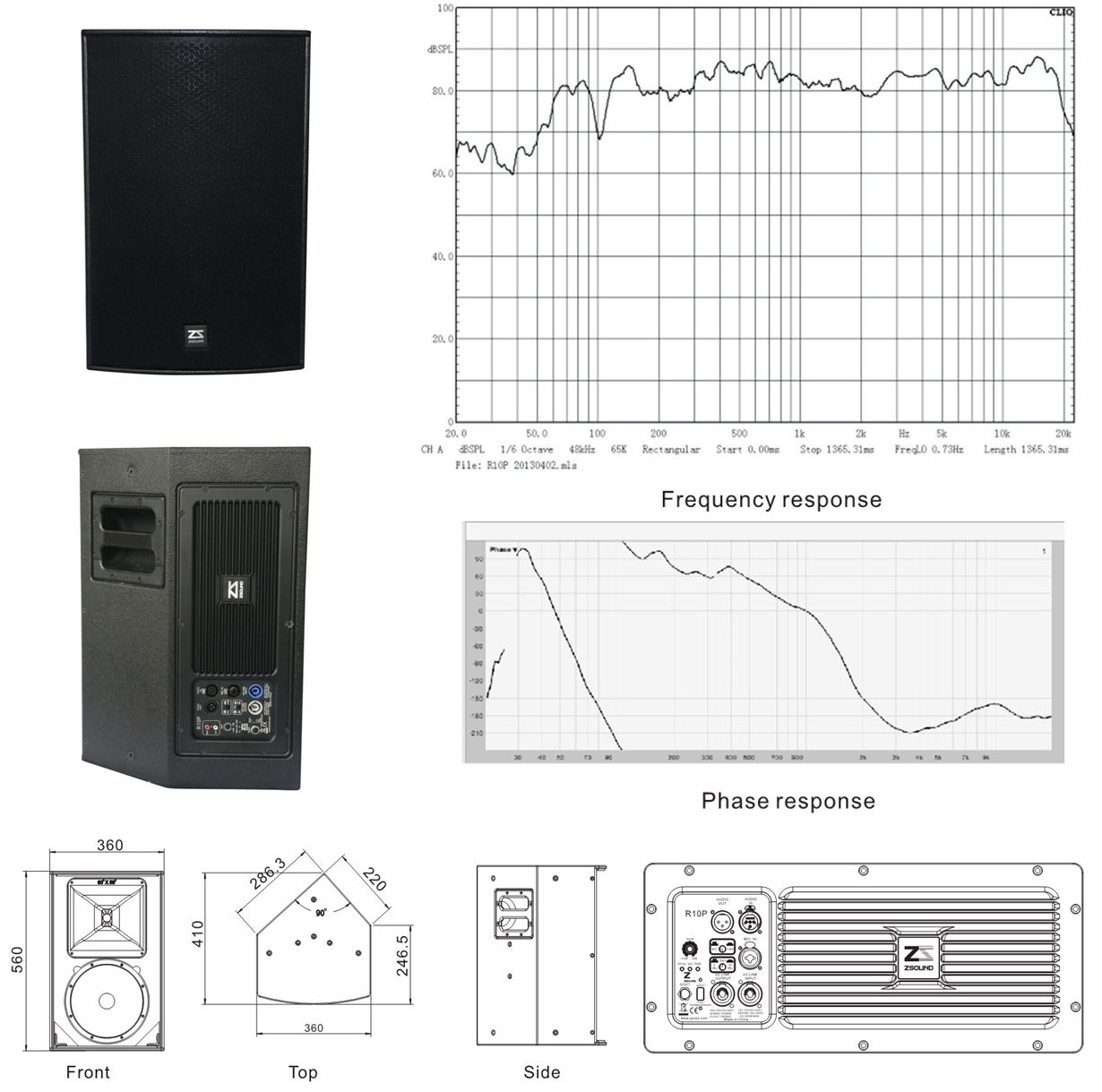

| TECHNICAL SPECIFICATION |
| Frequency range(include powered module) | 55 Hz ~ 18KHz (+3 dB ) 50 Hz ~ 20KHz (-10dB ) |
| Normal power (AES) | 400W |
| Driver | LF 1×10" (75mm voice coil) woofer
HF 1×1.75" (1"throat) exist compression drive(44mm voice coil) |
| Nominal Coverage | 80°× 50° |
| MAXIMUM SPL | 118dB SPL,124 dB SPL peak |
| Voltage requirement | 100V-120V/200-240V~ 50-60Hz |
| Amplifier module | Double channels 700W |
| Total harmonic distortion (1KHz, full frequency 4Ω) | ≤1% |
| SNR | 102.5 dB( |
| Audio in gain (1KHz 8Ω) | 23 dB |
| Mic in gain (1KHz 8Ω) | 56 dB |
| Input connectors (per.ch) | male XLR & female XLR (Neutrik) |
| Input impedance | 20KΩbalanced/10KΩunbalanced |
| Output circuit style | D class |
| Cooling system | Fan from back from front, Forced cooling |
| PHYSICAL DATA |
| Dimension(H×W×D) | 560×360×410(mm) |
| Weight (include powered module) | 24(kg) |
| Rigging | 17×M8 top +35mm bottom×1 |
| Material of enclosure | 15mm,18mm plywood |
| Surface | Black water paint |
| Grille | Black epoxy mesh grille with acousticall |
