| Prod Model: |
R12P |
| Frequency Response: |
55 Hz ~ 18kHz (+3 dB ) 50 Hz ~ 20kHz (-10dB ) |
| Nominal Cverage: |
80°× 50° |
| Sensitivity: |
122dB Spl, 128 dB Spl Peak |
| Power Rating: |
450W |
| Power Requirement: |
110V, 220V |
| Amplifier Module: |
Double Channels 700W |
| Snr: |
102.5dB |
| Output Circuit Style: |
D Class |
| Cooling System: |
Fan From Back From Front, Forced Cooling |
| Weight: |
27kg |
| Noise: |
<102dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
SGS |
| THD: |
<0.03% |
| Monitor: |
None |
Product Description

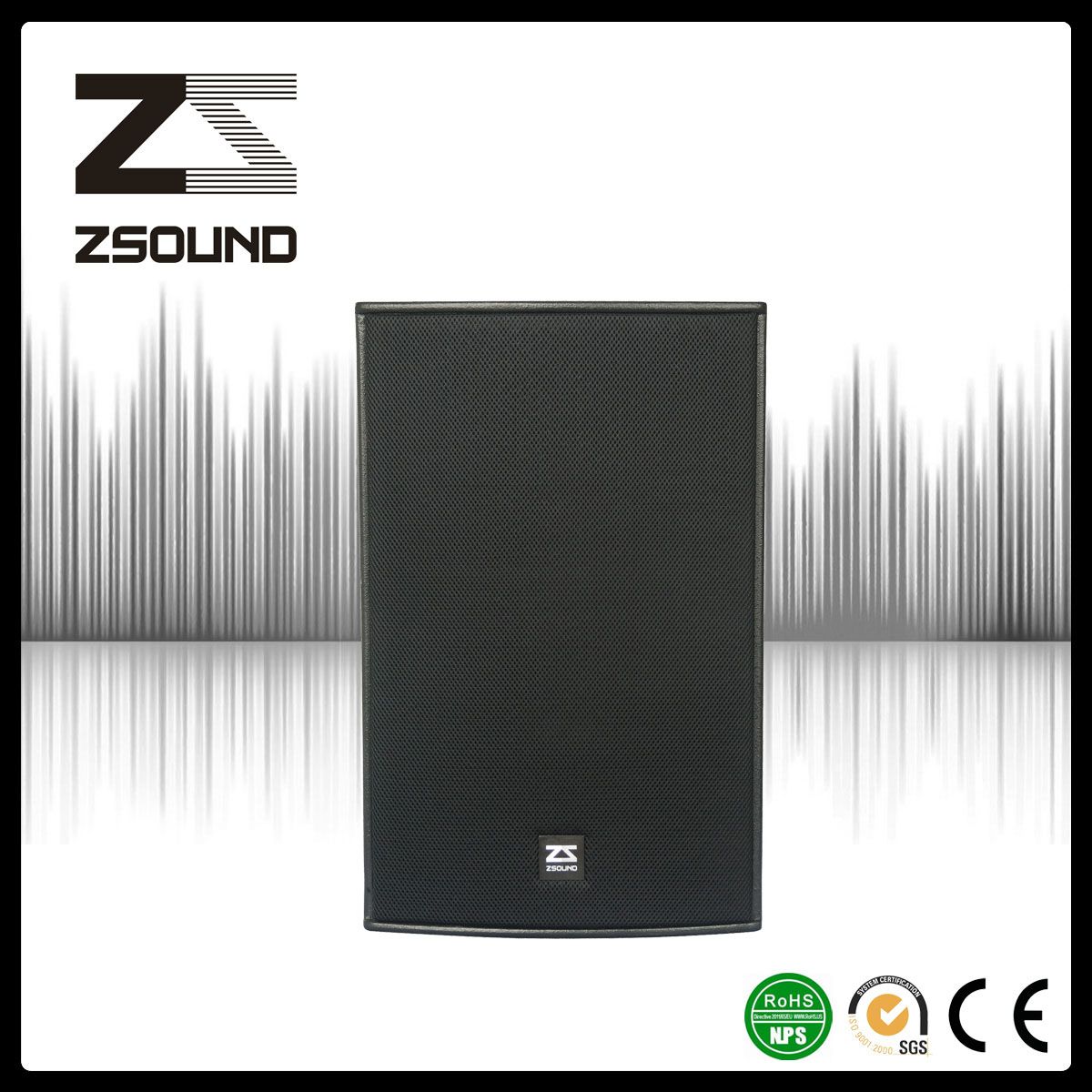

PA powered 12" active full range two way monitor speakerR Series is two full range selfpower speaker, mainly designed as FOH and monitor. The coverage of HF horn is 80°×50°.
And it Built-in voltage toggle switch for voltage requirements in different countries. It supports a variety of signal input.
Such as MIC and LINE. It has a volume control and with attenuation value. And it is suitable for Auto Show, multi-function hall and small hall show.
Feature:
Two way selfpower full range speaker
Elastic bass
Long throw rubber edge LF driver
Rotatable 80° × 50 °directivity horn
Applications:
Small FOH
Stage monitor
Near-field sound

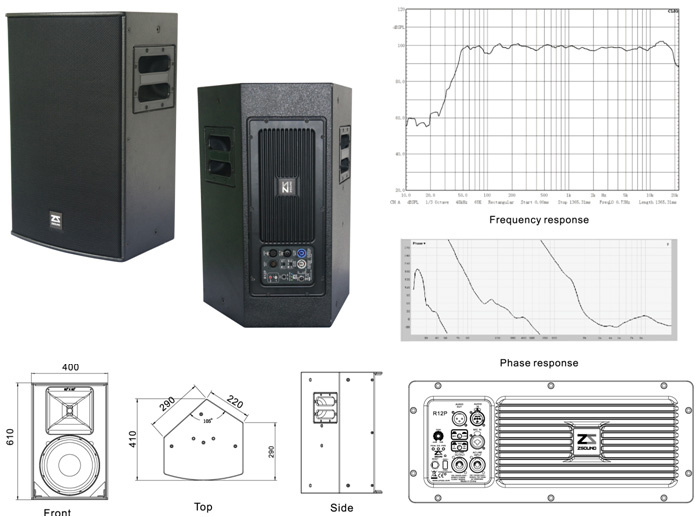

| Technical Specification |
| Frequency range(include powered module) | 55 Hz ~ 18KHz (+3 dB ) 50 Hz ~ 20KHz (-10dB ) |
| Normal power (AES) | 450W |
| Driver | LF 1×12" (75mm voice coil) woofer
HF 1×1.75" (1"throat) exist compression drive(44mm voice coil) |
| Nominal Coverage | 80°× 50° |
| MAXIMUM SPL | 122dB SPL,128 dB SPL peak |
| Voltage requirement | 100V-120V/200-240V~ 50-60Hz |
| Amplifier module | Double channels 700W |
| Total harmonic distortion (1KHz, full frequency 4Ω) | ≤1% |
| SNR | 102.5 dB |
| Audio in gain (1KHz 8Ω) | 23 dB |
| Mic in gain (1KHz 8Ω) | 56 dB |
| Input connectors (per.ch) | male XLR & female XLR (Neutrik) |
| Input impedance | 20KΩbalanced/10KΩunbalanced |
| Output circuit style | D class |
| Cooling system | Fan from back from front, Forced cooling |
| PHYSICAL DATA |
| Dimension(H×W×D) | 610×400×410(mm) |
| Weight (include powered module) | 27(kg) |
| Rigging | 17×M8 top +35mm bottom×1 |
| Material of enclosure | 15mm,18mm plywood |
| Surface | Black water paint |
| Grille | Black epoxy mesh grille with acoustically |
FAQ:Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock.
10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accpeted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.Our advantages:1) global leading professional manufacturer of professional speaker and amplifier
2) product quality: superior speaker and amplifier, top technology and quality
3) certificate: CE, RoHS, GS,SGS,ISO9001
4) monthly production capacity: 2000 pieces
5) fast delivery: get your order when you need it
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) convenient transportation: 1 hour to Baiyun airport, 30 minutes to Guangzhou South Railway Station, 20 minutes to Panyu Square Metro station
8) 24-hours online service
