Single Digit Numeric LED Display with 7 Segments
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
LD2811, LD3011, LD3211. |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Character Height: |
0.28-20 Inches |
| Emitting Color: |
Single Color, Dual Color, RGB... |
| Dp Number: |
1-2PCS |
| Digit Number: |
1 Digit |
| Chip Matrial: |
3/4 Element |
| Tube Chip Color: |
Single Color |
| Scanning Mode: |
Static Scan |
| Display Type: |
Segment LED Display |
| Application: |
Meters and Instruments |
| Certification: |
Reach |
| Display Function: |
Numbers and Some Alphabets |
Product Description

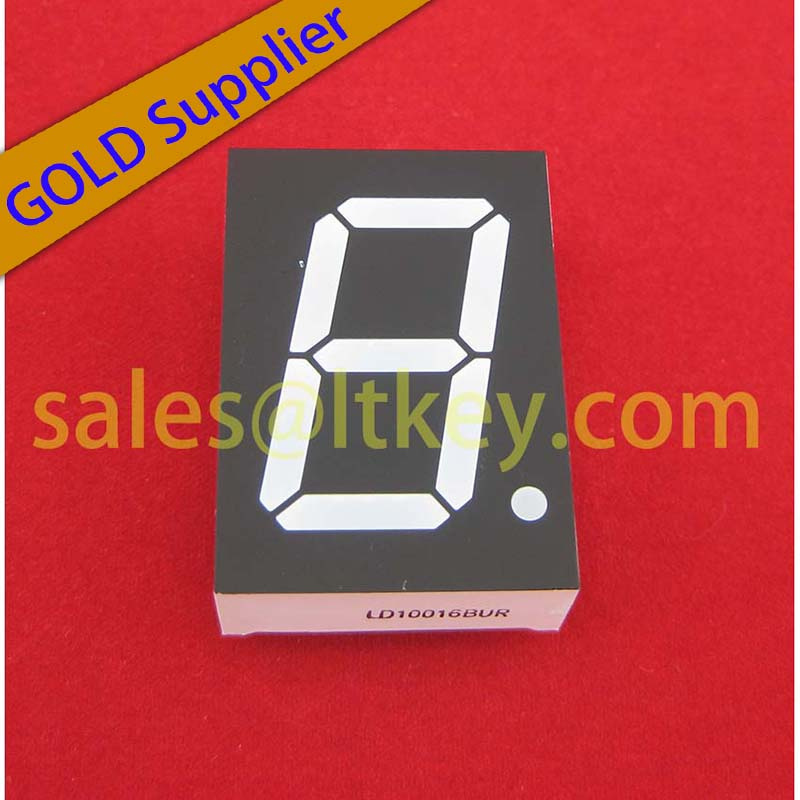

Single Digit 7 Segment LED Display| Available Digit Height: | 0.28 inch, 0.3 inch, 0.32 inch, 0.36 inch, 0.39 inch, 0.4 inch, 0.42 inch 0.5 inch, 0.56 inch, 0.6 inch, 1 inch, 1.2 inch, 1.5 inch, 1.8 inch, 2.3 inch, 3 inch, 4 inch, 5 inch, 6 inch, 7 inch, 8 inch, 10 inch, 12 inch, 16 inch, and 20 inch. |
| Available Emitting color: | Red, yellow-green, orange, amber, yellow, pure green, blue, white, dual color and RGB. |
| Available Face color: | Red, white, grey, and black. |
| Available Segment Color: | Red, white (milky),water clear, and yellow. |
| Available Electrode: | Common anode or common cathode |
We can customize according to our customer's requirements on the special matrix height, dot size, and internal circuit and outline dimension.
Electrical Characteristics & Absolute Maximum Ratings of different emitting color 8x8 LED dot matrix.
| Color | Electrical Characteristics[1] | Absolute Maximum Ratings[1] |
| Forward Voltage@ IF=20mA | Reverse
Current
VR=5V | Power Dissipation | DC Forward Current | Peak Forward Current[2] |
| Typ. | Max. |
| Super Red | Per Seg. | 1.8 | 2.2 | 30 | 60 | 25 | 100 |
| Per DP | 1.8 | 2.2 | 30 | 60 | 25 | 100 |
| Hi-Red | Per Seg. | 1.8 | 2.2 | 30 | 60 | 25 | 100 |
| Per DP | 1.8 | 2.2 | 30 | 60 | 25 | 100 |
| Orange | Per Seg. | 2.1 | 2.5 | 30 | 80 | 30 | 100 |
| Per DP | 2.1 | 2.5 | 30 | 80 | 30 | 100 |
| Yellow | Per Seg. | 2.1 | 2.5 | 30 | 80 | 30 | 100 |
| Per DP | 2.1 | 2.5 | 30 | 80 | 30 | 100 |
| Green | Per Seg. | 2.2 | 2.5 | 30 | 80 | 30 | 100 |
| Per DP | 2.2 | 2.5 | 30 | 80 | 30 | 100 |
| Ultra Red | Per Seg. | 1.9 | 2.6 | 30 | 60 | 30 | 100 |
| Per DP | 1.9 | 2.6 | 30 | 60 | 30 | 100 |
| Ultra Orange | Per Seg. | 2 | 2.6 | 30 | 65 | 30 | 100 |
| Per DP | 2 | 2.6 | 30 | 65 | 30 | 100 |
| Ultra Amber | Per Seg. | 2 | 2.6 | 30 | 65 | 30 | 100 |
| Per DP | 2 | 2.6 | 30 | 65 | 30 | 100 |
| Ultra Yellow | Per Seg. | 2 | 2.6 | 30 | 65 | 30 | 100 |
| Per DP | 2 | 2.6 | 30 | 65 | 30 | 100 |
| Ultra Green | Per Seg. | 2.1 | 2.6 | 30 | 75 | 30 | 100 |
| Per DP | 2.1 | 2.6 | 30 | 75 | 30 | 100 |
| Pure Green | Per Seg. | 3.5 | 4 | 30 | 110 | 30 | 100 |
| Per DP | 3.5 | 4 | 30 | 110 | 30 | 100 |
| Ultra Blue | Per Seg. | 3.5 | 4 | 30 | 120 | 30 | 100 |
| Per DP | 3.5 | 4 | 30 | 120 | 30 | 100 |
| Ultra White | Per Seg. | 3.5 | 4 | 30 | 120 | 30 | 100 |
| Per DP | 3.5 | 4 | 30 | 120 | 30 | 100 |
| Unit: | \ | V | V | uA | mW | mA | mA |
Notes:
1. At Ta = 25 °C.
2. Peak forward current at 1/10 Duty Cycle, 0.1ms Pulse.
How we produce our single digit 7 Segment LED display?

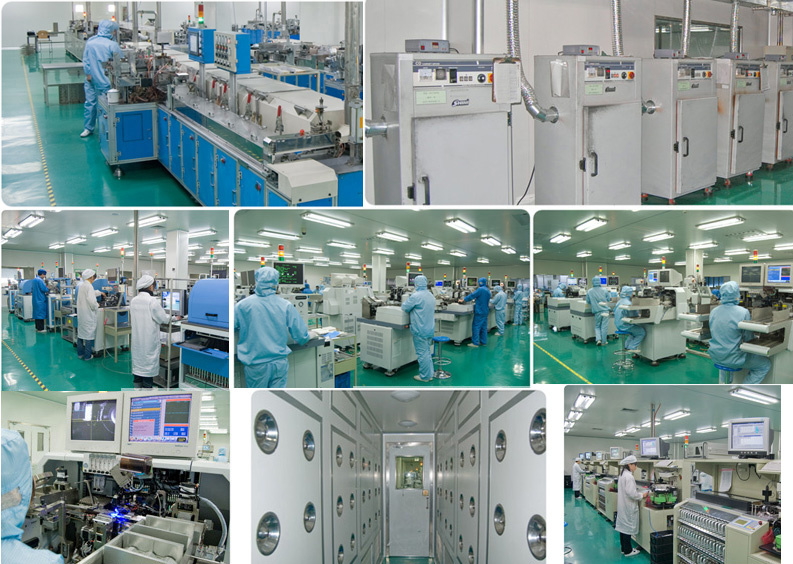

Factory view:
Ningbo Lightkey Electronic Technology Co., Ltd. is a big LED manufacturer, which covers an area of 40, 000 square meters, with approximately 390 production workers, and more than 50 R&D people. It has more than 10 advanced automatic production lines including die attaching, wire bonding, taping and casting. LightKey is also equipped with advanced sorting, testing, and analyzing instruments as well as other technical R&D equipments. We focus on the quality since our estabilishment. Is a manufacturer specialized in LED products especially LED components. Our main products are LED displays: 7 segment LED display, 14 and 16 segment LED display, LED DOT matrix, LED bargraph, &LED lightbar and so on: Lamp type LEDs: White LED, signboard oval LED, standard LED, high-brightness LED, traffic LED, IR LED, photodiode silicon, high power LED, super flux LED, & SMD LED and LED applications. Our company is managed according to ISO9001: 2008. Our LED products have RoHS and REACH compliance.
LightKey has many Famous business partners in the world.
"Keep Improving" is our our tenet.
