| Prod Model: |
XQL-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: Xql-80: |
Certification: ISO |
| Cutting Width: 660mm: |
Rated Cutting Force: 80kn |
| Cutting Stroke: 680mm: |
Piston Diameter(mm): 150 |
| Motor Power: 5.5kw: |
Overall Dimension(L*W*H)(mm): 1900*720*2580 |
| Weight: 1500kg: |
Export Markets: Global |
| Type Of General Rubber Machinery: |
Rubber Cutter |
| Certification: |
CE, ISO |
Product Description

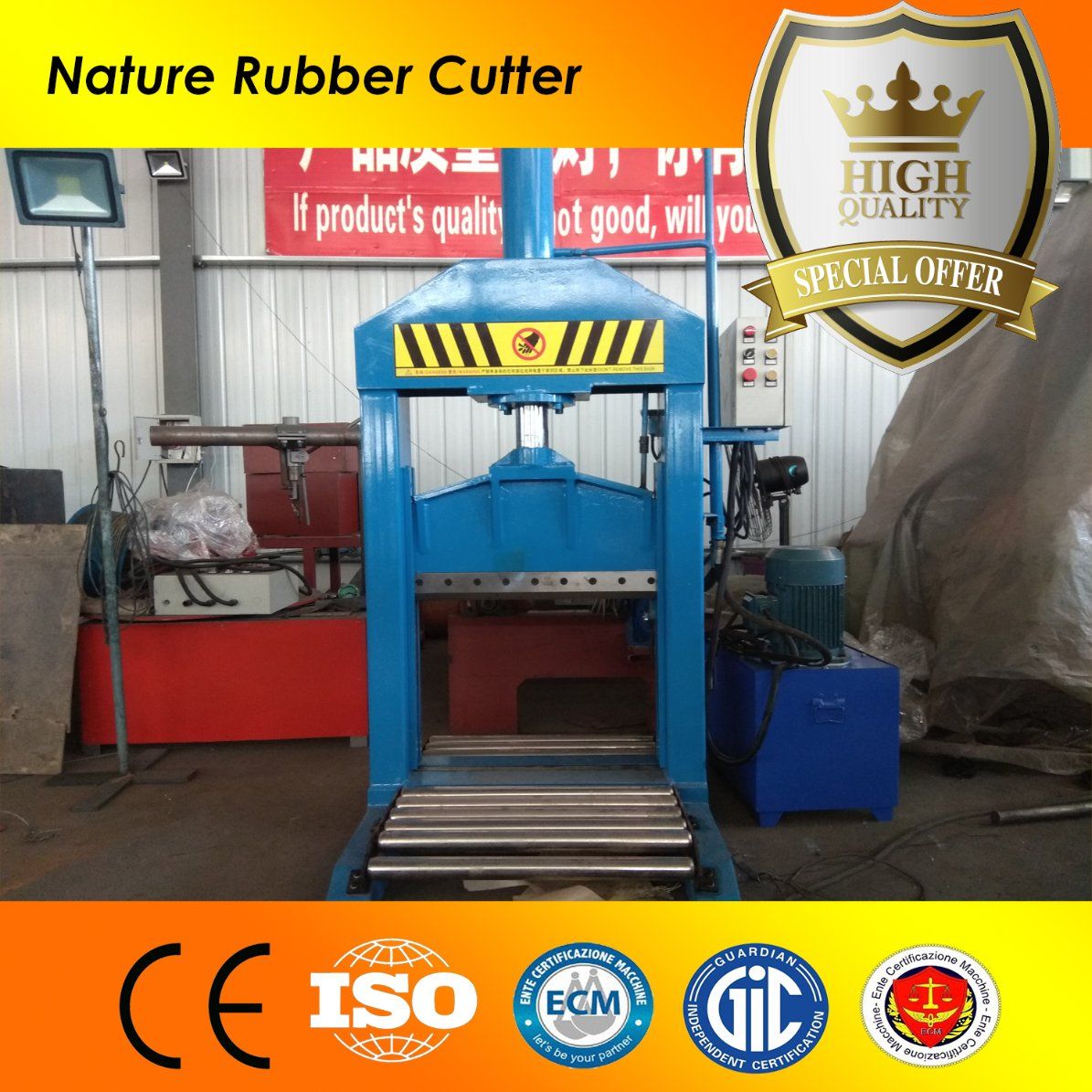

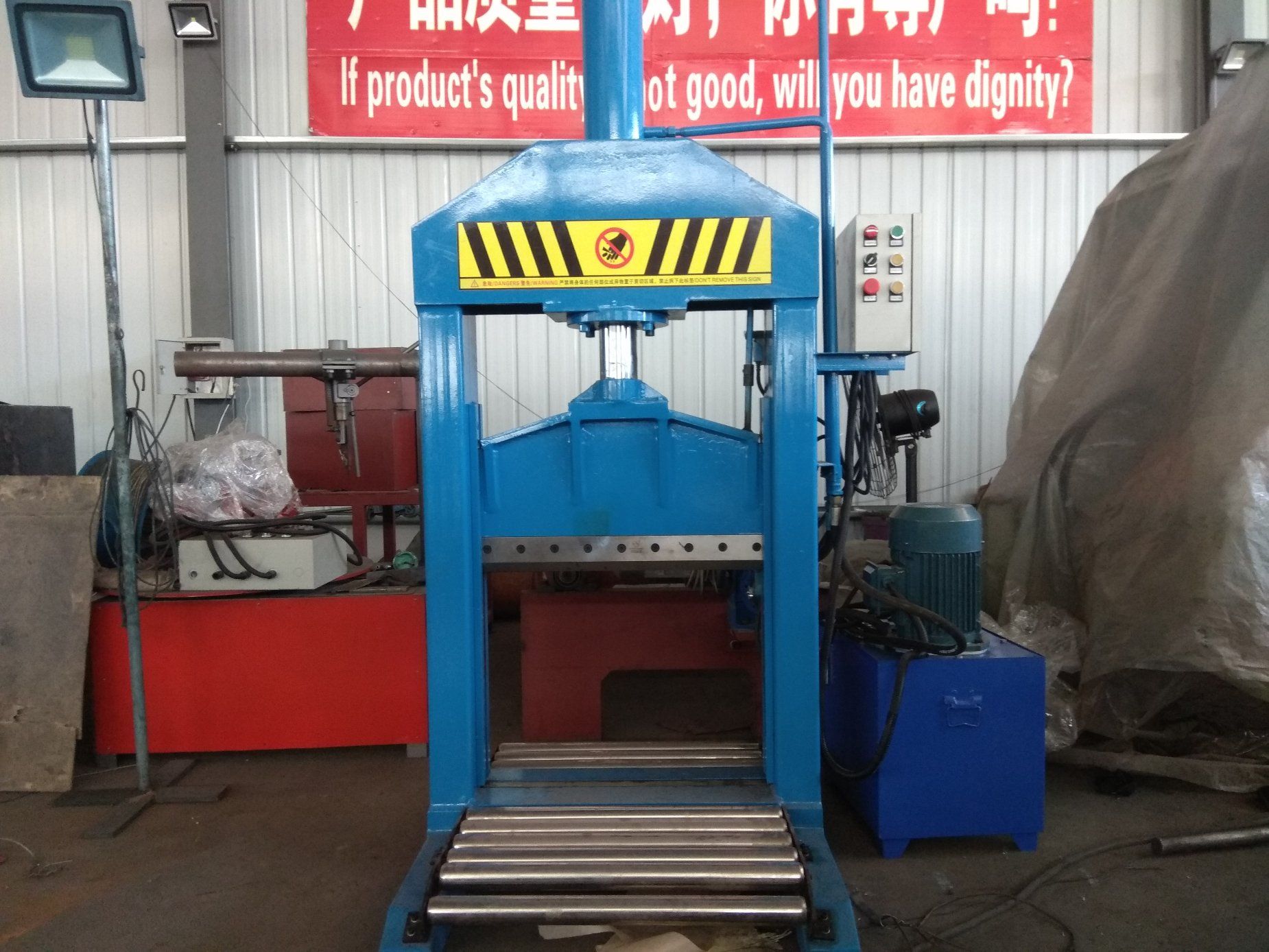

Single Knife Hydraulic Rubber Cutting Machine(XQ-80)
Technical Parameter of Rubber Bale Cutter| type | XQL-80 | XQL-120 | XQL-125 |
| Width(mm) | 660 | 760 | 760 |
| Stroke(mm) | 680 | 680 | 780 |
| Total Pressure of Oil Cylinder(KN) | 80(about) | 120(about) | 125(about) |
| Time Taken by the Stroke | 14-16 | 13-16 | 14-16 |
| Power(KW) | 5.5 | 5.5 | 5.5 |
| Overall Diameter (LxWxH) (mm) | 1800x600x2450 | 2300x1500x2530 | 2400x1500x2530 |
Application:Rubber bale cutter is one of the raw material processing machines of rubber factory. It's mainly used in cutting the natural rubber or synthetic rubber into easy mixing small blocks to conform the requirements.

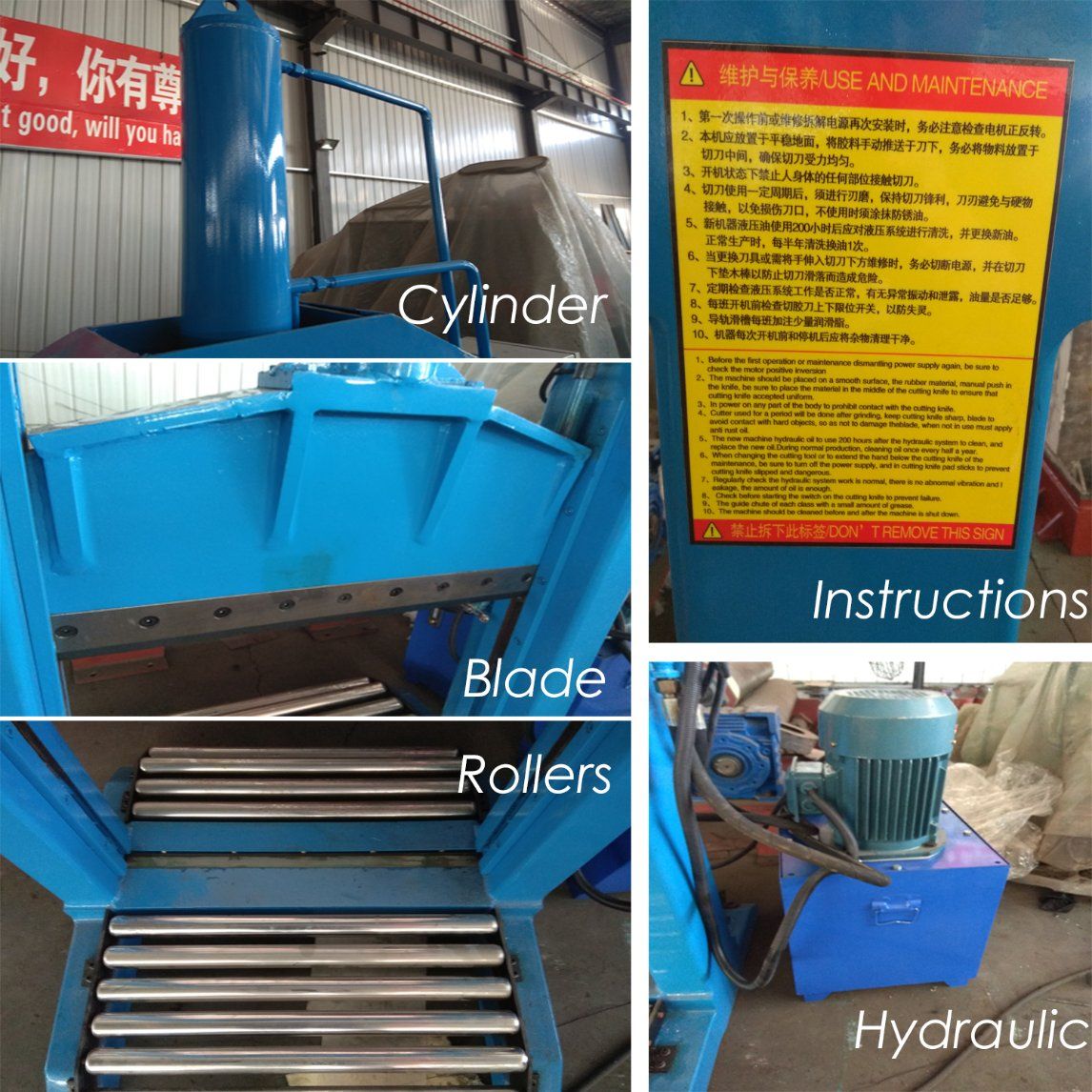

XQL-80 single knife rubber bale cutter has compact structure, easy operating, less wearing parts and easy maintenance. It is the essential machine for raw material possessing.
Safety Regulation for Operation
To use this machine correctly and assure the safety of the cutting rubber, the operators must strictly enforce the following safety operating regulation, forbidding against the rule.
(1) Safety education for operators and teach them the instructions content according this machine, really understand the significance of safe operation.
(2) Before working the operators should carefully check the machine and know whether the machine is in good condition or not, then empty the machine and run a check.
(3) Check whether the hydro-cylinder is in good condition, whether have the leakage of oil in pipe connections.
(4) Hand-hold is strictly prohibited without limit switch contacts and checks the circuit and the insulation condition of electrical components.
(5) When working the operators should special attention to if sound and operation of this machine is normal.
(6) When operating, you should first put the rubber blocks below the cutting knife then press the button.
Press the button and start cutting rubber. When finished, rubber cutting tool touch the piece on the lower touches for switch, and rubber cutting knife return to its original position automatically.
PackagingEquipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.Our Services
♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost. ♦ In the process of production, we will take photos and send to customers for their track the progress. ♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery. ♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing. ♦ We supply overseas engineer service and help to train your workers to operate the machine.FAQ 1. What does your factory do regarding quality control?We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment. 2. What's the machine quality guarantee?Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition. 3. Are you able to give installation and commissioning overseas?How long time will it take?Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days. 4. How can I trust you to deliver the right machine as I ordered?We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show the user around us. 5. How can we go to your side?We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.
How to contact us?
Click "Send" now for the best price!

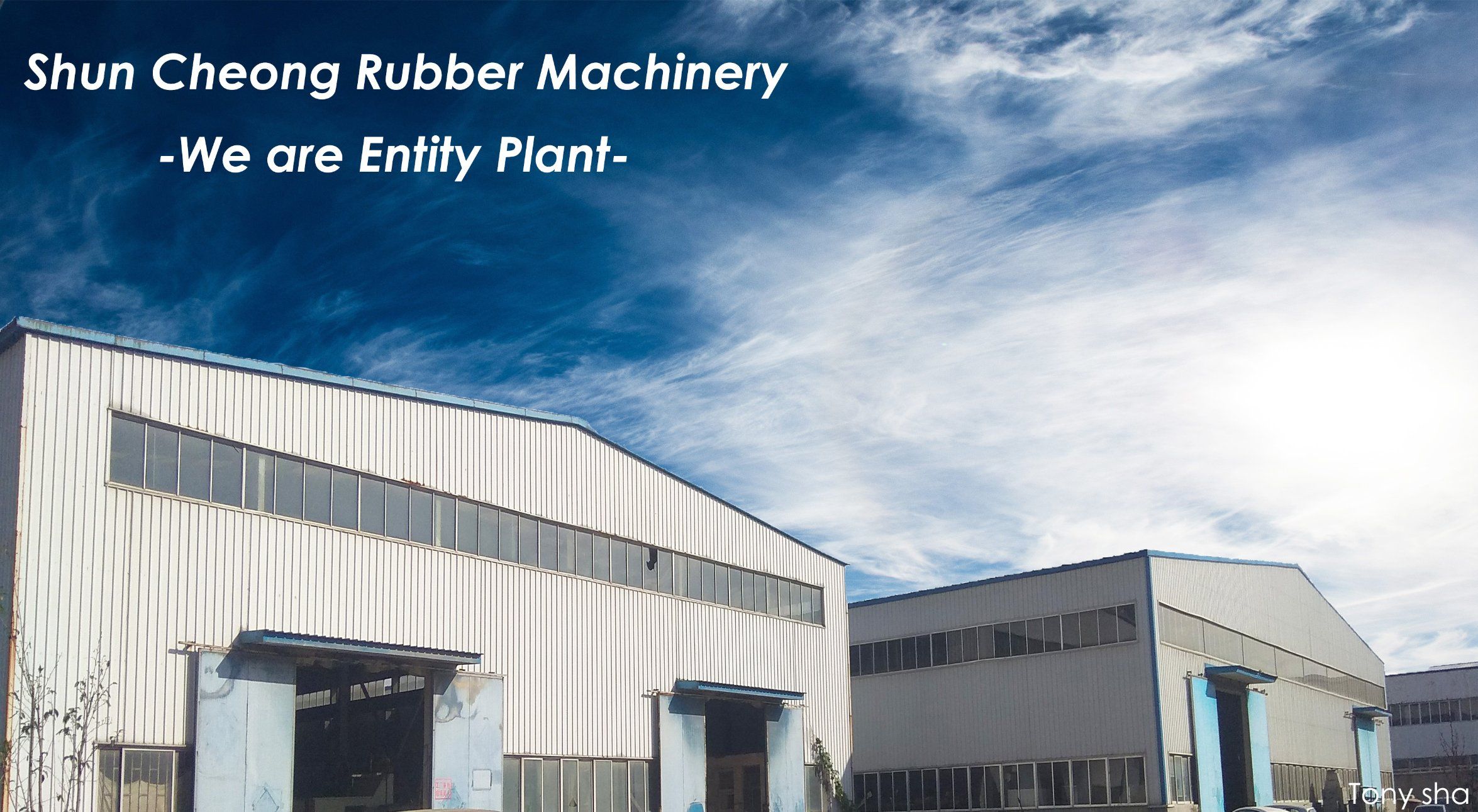

Qingdao Shun Cheong Machinery Co., Ltd. (Original China Qingdao first Rubber Machinery Factory) was founded in 1968, which is a professional manufacturer in rubber machine field of China with high-tech technology. We have ISO9001: 2008, CE1282 and SGS certification. Our customers spread all over the world, such as the United States, Germany, Brazil, Singapore, Malaysia, India, Russia etc. Our company's major customers including: Michelin, Bridgestone Americas Tire Operations, LLC, Kumho, Cheng Shin Rubber Industry, United States Goodyear Tire & Rubber Company etc.
Reduce the production cost and supply high efficiency rubber machines are the target aim of our service. Our company is near from Qingdao steel factory and Qianwan port, which is largely lowering the logistics cost; Germany and United States' core talents and experienced engineers and outstanding technical teams have been introduced, constantly improving the R&D capability, with the advanced fabricating equipment to develop the world excellent rubber machine, satisfying the clients high requirements.
In order to supply better service for our customers, we also provide the conveyor belt production line, waste tire processing line, tire and other rubber products' producing on- site for customers to visit and consult.
1. Our company machines must pass inspection of 3-7 hours of load test operating before they leave the factory, thus saving customers' time and expense of equipment commissioning.
2. We provide one year's guarantee and once the equipment damage during this time we supply free of charge. In order to save maintenance time and reduce the production cost of the guests, you can contact our DCRC by email, MSN or Skype etc., and we will send professional technical personnel with English translation to you to solve equipment problems.
3. Our company establishes "CUSTOMER FILE" for sold equipment in the form of return visits regularly; Including equipment's maintenance, troubleshooting and customer feedback.
4. Complete after-sales service
