| Prod Model: |
GB-999 |
| AC: |
220V/650W/50Hz |
| Capacity: |
0-60MPa/2.81/Min |
| Weight: |
8kgs |
| Material: |
Alloy Steel |
| Maximum Output: |
13500psi |
| Safe Range Of High-Pressure Hose: |
15000psi |
| Safe Range Of Switch Valve: |
18000psi |
| Restart Pressure: |
10000psi |
Product Description

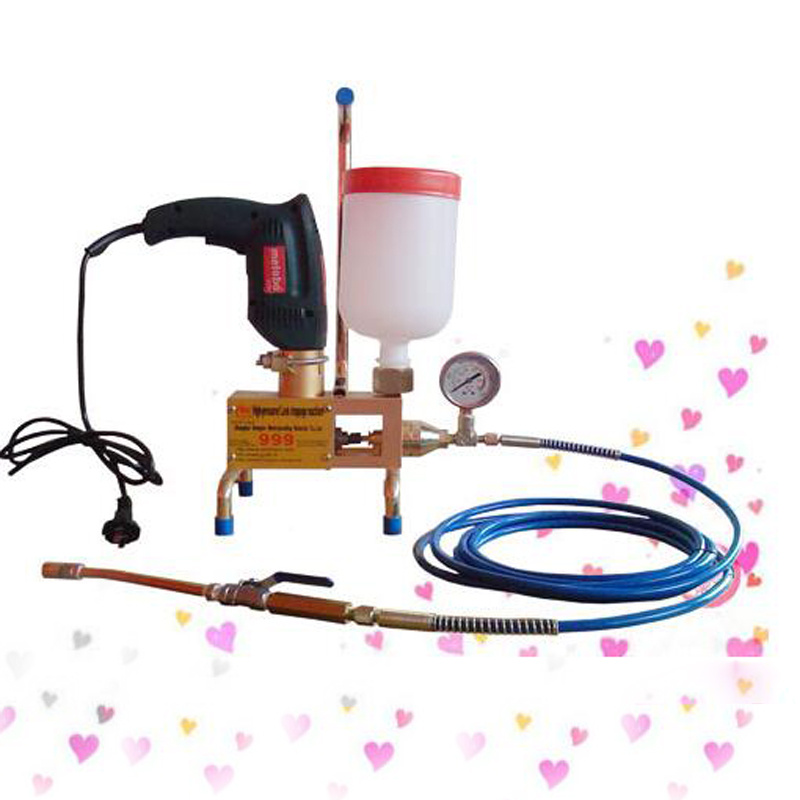

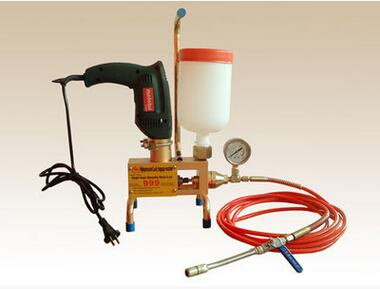

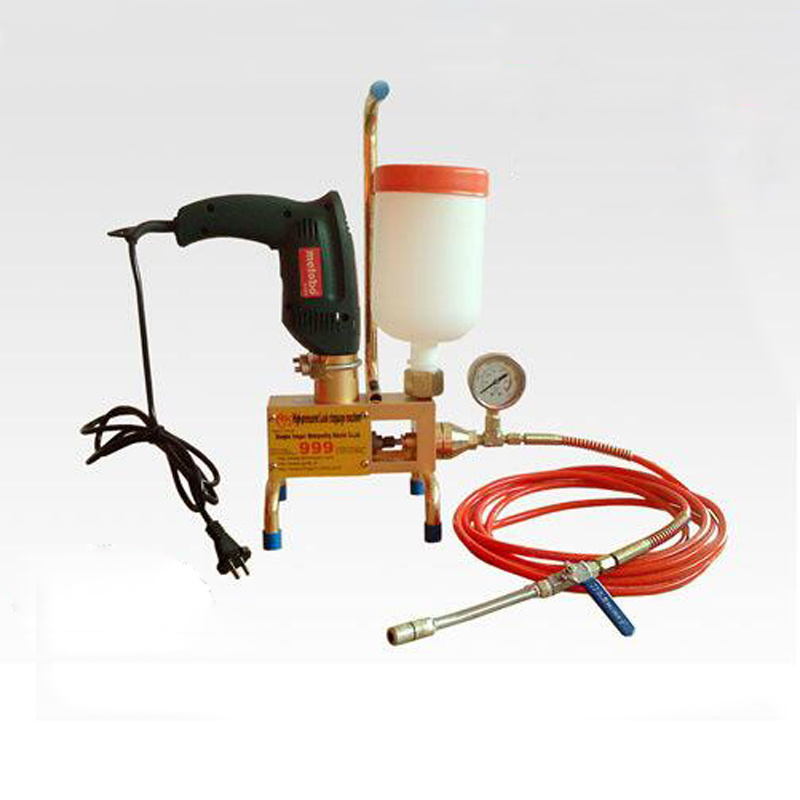

Single Liquid Electric Cement Grouting Spray Coating MachineGB-999 leak stoppage grouting machine is a professional machine used for fabric high pressure chemical grouting, which works with single chemical grouting material. It can produce high pressure itself. When there are leakage-stop constructions on engineering include architecture, underground, water conservancy, environment protection, civicism, subway, tunnel, culvert, crack reinforcement, it is the preferred equipment.
| Usage | Grouting |
| Pwoer | 560W/220V |
| Weight | 8 KG |
| Applicable materials | PU foam agent, Epoxy resin. |
| Polyurethane, acrylic resin |
| Max output pressure | 13500 pis |
| Restart pressure | 10000 pis |
| Safe range of switch valve | Less than 18000 pis |
| Safe range of high-pressure hose | Less than 15000psi |
Machinery Accessories:
Drill :1 set 550W
High pressure hose:1 pc 5M
Shut-off value:1 set
repairing kit:1 set
Seal set:1 set
T type wrench:1 set
Rubber pad:10 pcs
Zerk:1 pc
Filter:1 pc
Material cup:1 set
Application of grouting machine:
1. A variety of buildings and underground concrete cracks, expansion joints, construction joints, structural joints sealed plugging.
2. Geological drilling engineering drilling wall plugging reinforcement.
3. Water conservancy and Hydropower Project reservoir dam grouting, plugging cracks in the tunnel water, waterproof, impervious dam reinforced concrete cracks.
4. High rise buildings and railroad, Highway Roadbed Stabilization.
5. Coal mining and other mining engineering of tunnel water plugging, roof breaking layer reinforcement.
6. Bridge foundation reinforcement and the bridge body crack of reinforcement.
7. Deformed Reinforcement of buildings, concrete structures such as the Water Tower, pool crevice reinforcement and prevent subsidence.
8. Soil improvement, soil surface protection and stability reinforcement
