Single Row Diamond Cup Wheel for Concrete
| Price: |
US $ 5-15/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
HKL808 |
| Types: |
Surface Grinding Wheel |
| Working Style: |
Surface Grinding |
| Inner Hole: |
22,23mm |
| Usage: |
Concrete |
| Grain Size: |
Coarse, Medium, Fine |
| Application: |
Used on Angle Grinder and Floor Grind |
Product Description
Diamond Cup Wheel for Granite PolishingMetal bond diamonds have high strength, excellent wear resistance, and a low friction coefficient. Metal bond diamonds high grinding efficiency and low grinding force generates less heat in the grinding process. This can decrease or avoid burns and cracks on the surface of the work piece, and decrease the equipment's wear and energy consumption. The high wear resistance can lead to good grinding quality and high grinding precision. Metal bond diamonds long lifespan and long dressing period can greatly increase the work efficiency, and improve the worker's' labor environment while decreasing the product's labor intensity.BRIEF INTRODUCTIONDiamond grinding wheels are mainly used for grinding and polishing stone products.such as Granite ,Marble, Sandstone, Limestone, etc.Also suitable for Grinding Concrete. Ideal for smoothing and shaping as well as stock removal.FEATURES 1) Diameter: 100/115/125/150/180mm, other sizes upon request
2) Grit: Coarse/medium/fine
3) Thread/ Connection: M12, M14, M16, 5/8-11, 22.23mm etc
4) Base & Matrix Material: aluminum or steel
5) Technology: Welding or Sintered
6) Type: Single row, Double rows, Turbo, T type etc ADVANTAGES1) Durable metal and diamond compound
2) Effective in the process of grinding and polishing concrete floor
3) Different colors and sizes as requested.
4) Competitive price and superior quality.
APPLICATION RANGE
For grinding concrete, stone rocks etc.
Typical Products:Diameter
(mm) | Diameter
(inch) | Size of Segment
(mm)
LXWXH | No. of Segment | Arbor
(inch) | Grit
# | Technical Hole Dia. |
| 100 | 4 | 33×8×5 | 7 | 7/8 | 30/40 | 13 |
| 115 | 4.5 | 33×8×5 | 8 | 7/8 | 30/40 | 14 |
| 125 | 5 | 32×8×5 | 9 | 7/8 | 30/40 | 15 |
| 180 | 7 | 36×8×6 | 12 | 7/8 | 30/40 | 18 |
| 100 | 4 | 33×8×5 | 9 | 7/8 | 30/40 | 10 |
REMARK:OTHER SPECS ARE AVAILABLE UPON REQUEST.
Procedure

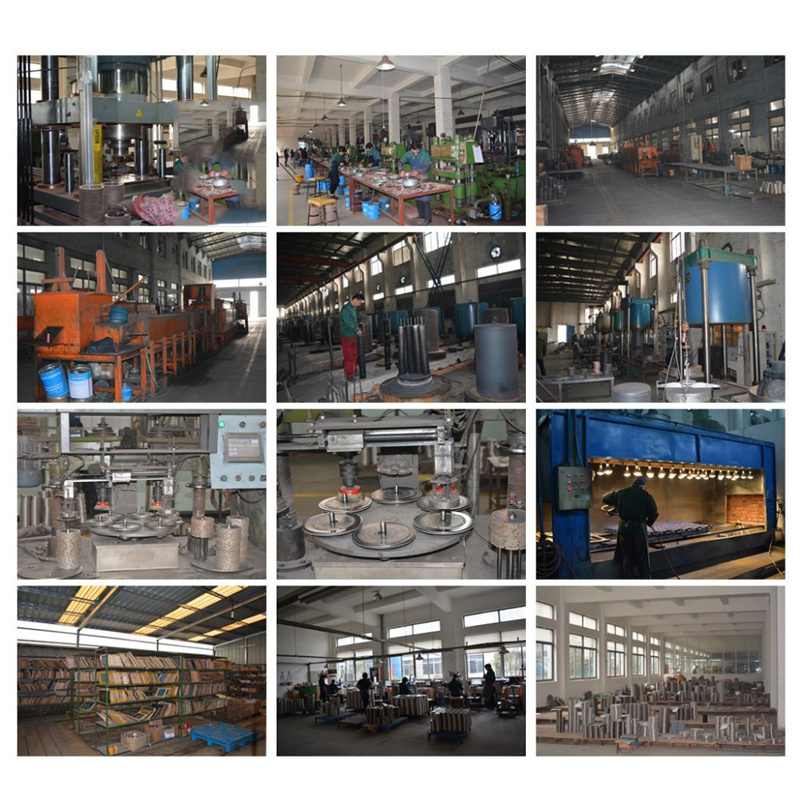

HENKOOLEE TRADING LIMITED mainly engaged in exporting machinery & consumable products of ceramic tile produce process. We have an expert team, who can be consultant for new ceramic plant design, machinery technology modification of existed production line, all of them have more than 10 years experience in this ceramic field.
Since 2008 till today, we are doing business mostly with Indian ceramic factories, during this period, we keep choosing best suppliers of China for our Indian friends, however, every ceramic factory has the difference, we take the responsibility to look for the proper supplier for clients need. Fortunately, our clients satisfy the machinery manufacturers we suggested in these years, so mostly these manufacturers became fixed suppliers, and due to this reason, clients became our good friends gradually, the cooperation between our three parties goes very well.
Our company aim: Quality is the first, based on solving problems for clients as our friends, try our best to do top service and low down the produce cost. In the future, we will stick to our aim, adhere the principle of doing all work sincerely & seriously. Let's forge ahead, business scale is continually expanding!
