| Price: | US $ 1.5-3/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | 51226M |
|---|---|
| Weight: | 2.9kg |

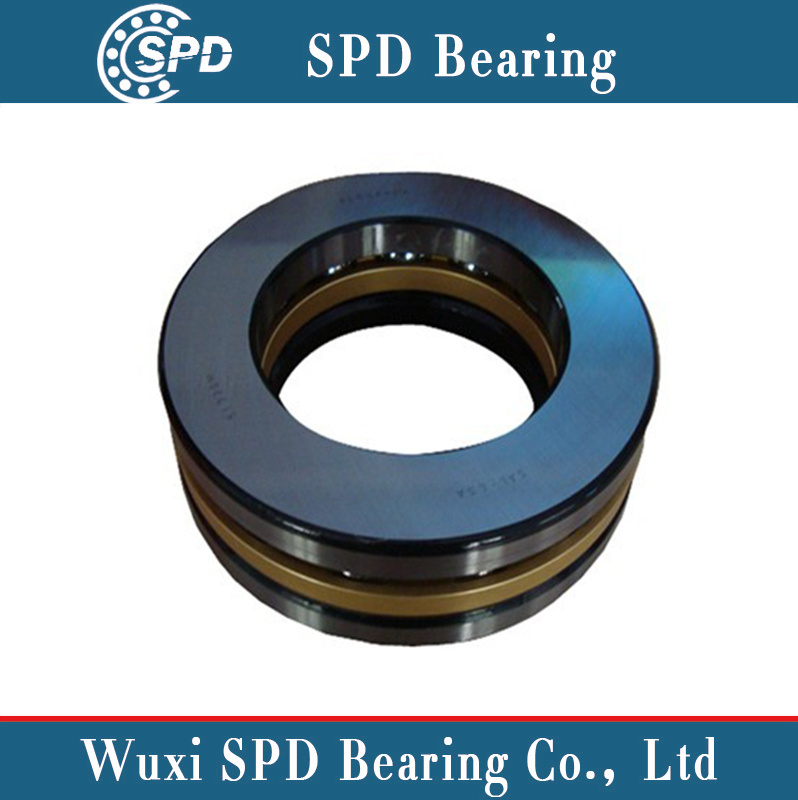

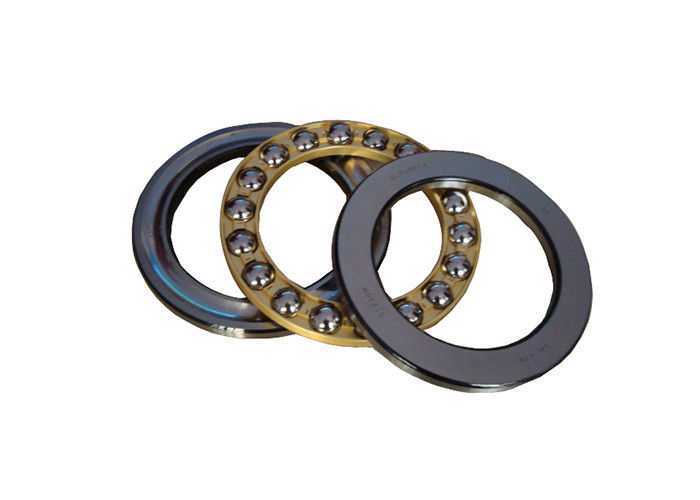

Thrust ball bearing consists of two precision chrome steel washers (ring) and a ball complement spaced by bronze retainer. They can be supplied with or without radius ball grooves in the rings. Thrust bearings are used under purely axial loads. Thrust ball bearings can handle loads in the axial direction only. Bearing rings mounted on the shaft are called shaft washers, and those mounted in the housing are called housing washers. Both washers contain raceways for the balls. Thrust ball bearings are available as both single and bi-directional types. The bi-directional thrust bearing incorporates a third washer and an additional set of balls. This center washer is located in the axial direction by a shaft shoulder and sleeve. Care must be taken in handling to prevent damage to the separable rings and ball assemblies.
Products specifiction
| Model Number | 51226 51226M 51226E |
| Brand Name | SPD or OEM |
| Dimension | 130*190*45mm |
| Weight | 2.9Kg |
| Load | Dynamic Cr:132.30kN |
| Static Cor:393.60kN | |
| Limiting Speed | Grease: 1700rpm |
| Oil:1200rpm | |
| Type | Thrust Ball Bearing |
| Seals Type | OPEN |
| Material | Chrome Steel ,Carbon Steel, Stainless Steel |
| Cage material | Brass/Metal/Nylon |
| Clearance | C0,C2,C3,C4,C5 |
| Vibration | Z1V1,Z2V2 and Z3V3 |
| Precision Level | P0,P6,P5,P4,P2(ABEC1, ABEC3, ABEC5, ABEC7, ABEC9) |
| Number of Row | Single Row/Double Row |
| Guarantee | One year. |
| Certifications | ISO 9001:2008 |
| Package | Box, Carton, Wooden Case, Plastic Tube or Per buyers requirement . |
| Place of Origin | China (Mainland) |
| MOQ | 10PCS |
| Service | (1) Prompt Delivery |
| (2) OEM | |
| (3) Buyer Label accepted | |
| (4) Follow up and maintenance | |
| Payment Term | TT or L/C or Western Union |
| Port | Shanghai/Shenzhen |
Automotive Steering; Fluid control valve; Machine table
Related Model
| Model No. | d/mm | D/mm | H/mm | Weight / Kg |
| 51200 | 10 | 26 | 11 | 0.0293 |
| 51201 | 12 | 28 | 11 | 0.0324 |
| 51202 | 15 | 32 | 12 | 0.0444 |
| 51203 | 17 | 35 | 12 | 0.0506 |
| 51204 | 20 | 40 | 14 | 0.0733 |
| 51205 | 25 | 47 | 15 | 0.109 |
| 51206 | 30 | 52 | 16 | 0.138 |
| 51207 | 35 | 62 | 18 | 0.22 |
| 51208 | 40 | 6 | 19 | 0.27 |
| 51209 | 45 | 73 | 20 | 0.32 |
| 51210 | 50 | 78 | 22 | 0.39 |
| 51211 | 55 | 90 | 25 | 0.619 |
| 51212 | 60 | 95 | 26 | 0.69 |
| 51213 | 65 | 100 | 27 | 0.75 |
| 51214 | 70 | 105 | 27 | 0.79 |
| 51215 | 75 | 110 | 27 | 0.815 |
| 51216 | 80 | 115 | 28 | 0.925 |
| 51217 | 85 | 125 | 31 | 1.3 |
| 51218 | 90 | 135 | 35 | 1.77 |
| 51220 | 100 | 150 | 38 | 2.4 |
| 51222 | 110 | 160 | 38 | 2.6 |
| 51224 | 120 | 170 | 39 | 2.9 |
| 51226 | 130 | 190 | 45 | 4.32 |
| 51228 | 140 | 200 | 46 | 4.6 |
| 51230 | 150 | 215 | 50 | 6.1 |
| 51232 | 160 | 225 | 51 | 6.55 |
A1:Good quality. ISO9001:2008 certificate to ensure the quality.
A2: Sample is free (except large bearings),and postage should be paid by buyer. But postage can be refund after order is confirmed.
A3: We have our own brand in China with brand SPD
A3: We supply OEM service and after sales service
A4: For the bearings,we have 1 years warranty. If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q5: Is there any cheap shipping cost to import to our country?
A5: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q6: Can we get support if we have our own market position?
A6: Please inform us your detailed information about your market ,we will discuss and propose helpful suggestion for you and to find the best solution for you.
