| Prod Model: |
DB-8 |
| Core Thickness: |
2.2/2.4mm/2.6/2.8/3.0/3.6 |
| Usage: |
Marble/ Limestone/ Other Soft Stone Cutting |
| Main Diameter Size: |
300-600mm |
| Brand: |
Jdk |
| Delivery Time: |
7-10days |
| Shipment: |
by Express/by Air/by Sea |
| OEM&ODM: |
Yes |
| Customized: |
Customized |
| Export Area: |
Global |
| Type: |
Silent/Non Silent |
Product Description

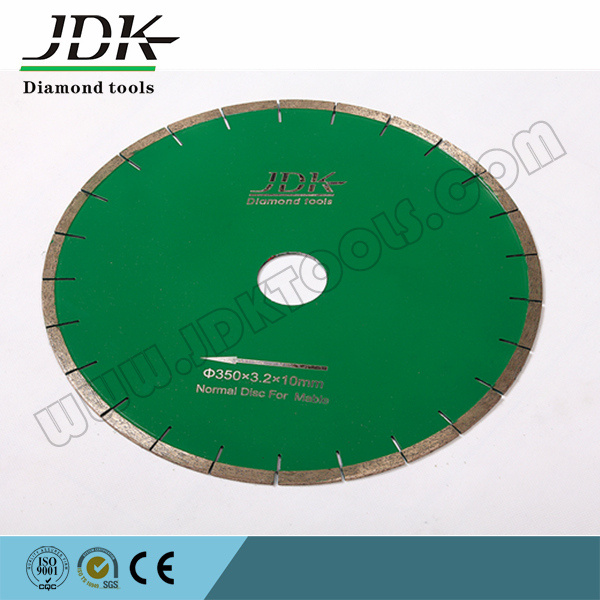

Hot Sell Diamond Saw Blade for Marble Cutting:
| "Fan" Segment Blade (Product Code:JDK-FM) |
| Features: |
| 1.Uniqure "fan" type segment design has good continuity,effectively reduce the distance between teeth. |
| 2Further strengthen the effect of trimming,reduce the loss of stone |
| 3.With high working performance,the blade would not chip or break slates while cutting |
| Product Name | Specification | Core Thickness | Segment Dimension | Segment Number | Application | Note |
| JDK-FM | Φ300 | 2.2/2.4 | (40)43/41x3.2x8(10) | 22 | Marble/Limestone and other soft stone | Silent or Non Silent |
| Φ350 | 2.2/2.4 | (40)43/41x3.2x8(10) | 25 |
| Φ400 | 2.6/2.8 | (40)43/41x3.6x8(10) | 29 |
| Φ450 | 2.8/3.0 | 40x4x8(10) | 32 |
| Φ500 | 3.0 | 40x4x8(10) | 36 |
| Φ600 | 3.6 | 40x5.5x8(10) | 42 |
Other Specifications Are Available Upon Request
Our Feature:Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM
Our advantage:1. Manufacturer with more than 15 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.
Payment:T/T, Western Union, L/C, Cash
Delivery day:For samples, shipped within 3 days after receiving the deposit,
For regular order, around 3-7 days, depends on the quantity of your order.
Packaging:The inner packaging is carton box .The outer packaging is carton box Or woodencase.(If by air ,carton box will reduce the weight, if by sea, we suggest woodenbox for waterproof.
Shipment:<45kg, express service is recommonded
>45kg, air or sea is a better choice 45kgs
Quanzhou JDK Diamond Tools Co., Ltd. is one professional manufacturer of diamond tools in China, specially for the stone working industry. The main products are stone cutting Diamond Saw Blades, Kinds of Diamond Segments, Diamond Abrasives, etc...For over 12 years development with the support of JDK's Customers, suppliers and Staffs, now JDK is supplying big range stone cutting, Grinding & Polishing tools to the world.
JDK was established in 1995, initially JDK was producing and selling diamond tools products to China domestic market. Since 2000 year JDK is aiming at the world market and started to design and produce superior performance diamond tools to meet kinds of requirements of customers from all over the world. with these years export experiences now JDK is exporting his diamond tools products to over 30 countries which is in Europe, Middle East, Asia, America, etc...
JDK's experienced Engineer and R&D team are providing customers quality stone tools for cutting, grinding, polishing, milling, drilling, such as diamond saw blade, diamond segments, Diamond Wire Saw, Diamond abrasives, Flexible Polishing Pads, Grinding Cup Wheels, Core Drill Bits, ...
Always, JDK's target: Offer you most satisfied products and service, developing together.
