| Prod Model: |
WSHET-G1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machinery: |
Hand Engraving Machine |
| Tech: |
Sintered |
| Shapes: |
Conical, Flat, Ball, Grooves, etc |
| Shank Size: |
6mm |
| Diamond Length: |
10-40mm |
| Delivery Time: |
Within 3days |
| Usage: |
Abrasive and Carving, Stones Engraving |
| Kind: |
CNC Engraving Machine |
| Manufacturing Arts: |
Vacuum Sintered |
Product Description

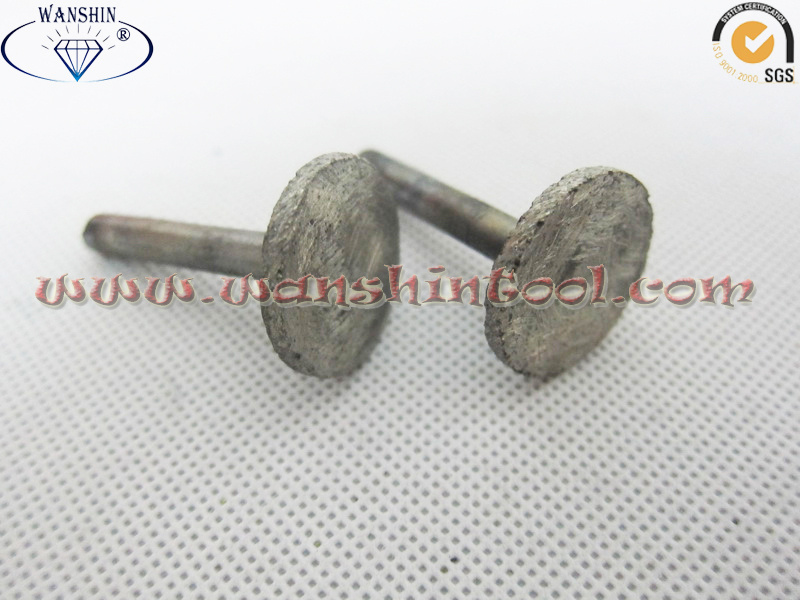

1. Sintered diamond grinding head.
2. It is sharper, higher efficiency, not deformation and precise engraving. So, it is better for engraving marble, bluestone, sandstone etc. It is better selected for engraving relieves, goodfor engraving large characters, too.
If it is the first time that you use our engraving bits for the first time, please contact us to get suggestions which are good skill for engraving in different kinds of stones and different engraving ways. For this, we will provide you the most professional tools collocation programs. If you have any questions with stone engraving, please contact us and send your small piece stones to us. Professional laboratory fortesting and engraving stone, marble, granite, and others hard materials. We could find a better precept for using our bits and right parameters of engraving machine.
We are the professional manufacturer of this engraving tool, our quality is widely accepted in both domestic and overseas markets, welcome to inquire our engraving mills, you can get the best quality engraving tools with the best prices.
Type | Model | Shank(mm) | Segment
diameter(mm) | Segment
length | Shank
length(mm) | Overall
length(mm) |
| Flat | S1 | 6 | 6 | 15 | 50 | 65 |
| S2 | 8 | 8 | 20 | 50 | 70 |
| S3 | 10 | 10 | 20 | 50 | 70 |
| S4 | 10 | 10 | 30 | 50 | 80 |
| S5 | 12 | 12 | 20 | 50 | 70 |
| Ball | S6 | 6 | 6 | 15 | 50 | 65 |
| S7 | 8 | 8 | 20 | 50 | 70 |
| Conical | S8 | 6 | 3 | 20 | 50 | 70 |
| S9 | 8 | 3 | 25 | 50 | 75 |
| S10 | 8 | 4 | 25 | 50 | 75 |
| S11 | 8 | 6 | 25 | 50 | 75 |
| S12 | 10 | 3 | 30 | 50 | 80 |
| S13 | 10 | 6 | 30 | 50 | 80 |
| S14 | 10 | 8 | 30 | 50 | 80 |
| S15 | 10 | 6 | 40 | 50 | 90 |
| Flat | S16 | 8 | 8 | 20 | 90 | 110 |
| S17 | 10 | 10 | 20 | 90 | 110 |
| S18 | 10 | 10 | 20 | 120 | 140 |
| Conical | S19 | 8 | 4 | 25 | 50 | 75 |
| S20 | 10 | 6 | 30 | 90 | 140 |
Wanshin Diamond Tool Co., Ltd is a professional manufacturer and exporter of various types of diamond tools. Our company is located in the city of Nan' An_the biggest stone base in China.
With over 20 years experience in the researching and manufacturing of stone tools, over 5 years in the vacuum brazed diamond tools, our products are widely accepted by many customers all over the world. Our main products include the following series:
1. Cutting tools: Diamond saw blade, diamond segments, diamond gang saw, diamond wire saws, diamond drill bits, construction cutting saw blades, etc;
2. Vacuum Brazed Diamond Tools: Such as vacuum brazed drill bits for tiles, porcelain, ceramics;
3. Stone Engraving Tools
4. Polishing&Grinding Tools: Such as diamond polishing pads, diamond cup wheels, metal grinding discs, resin grinding discs, concrete floor polishing pads, etc;
5. Electroplated Diamond Tools: Such as wet drill bits, CBN plated diamond wheels, grinding pins, etc
All of our products are inspected under a strict quality control system before it goes to customers' Hands.
Now our products are exported USA, UK, Germany, Australia, Iran, Peru, Mexico, Brazil, South Africa, Cyprus, Egypt, Poland, etc.
Our principle is helping you get the best solutions for your limitations in the processing of stones and many other materials. We sincerely welcome to you to join us, we can supply you the constantly good quality products, the best after sale service.
