Sjsz 65/132 Conical Twin Screw for Plastic PVC/UPVC Pipe/Tube/Hose Extrusion/Extruder Making Machinery
| Price: |
US $ 33000-35000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
SJZ65/132 |
| High Capacity: |
800kg/H Capacity |
| Haul Off: |
Servo Motor |
| Inverter: |
Schneider |
| Contacter: |
Schneider |
| Cutter: |
Dust Free |
| Screw: |
Bimetallic |
| Product Type: |
PVC Pipe |
| Automation: |
Automatic |
| Computerized: |
Non-Computerized |
| Certification: |
ISO9001:2008 |
Product Description
Application of Pipe:
PVC Plastic Pipe Extrusion Extruder Machine is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.
Characterizer of MT extruder: Capacity increased (20% higher),
High standard (Bimetallic & PLC Intelligence),
Reliable quality (vertical gearbox by SKF bearing) Equipmnet List :

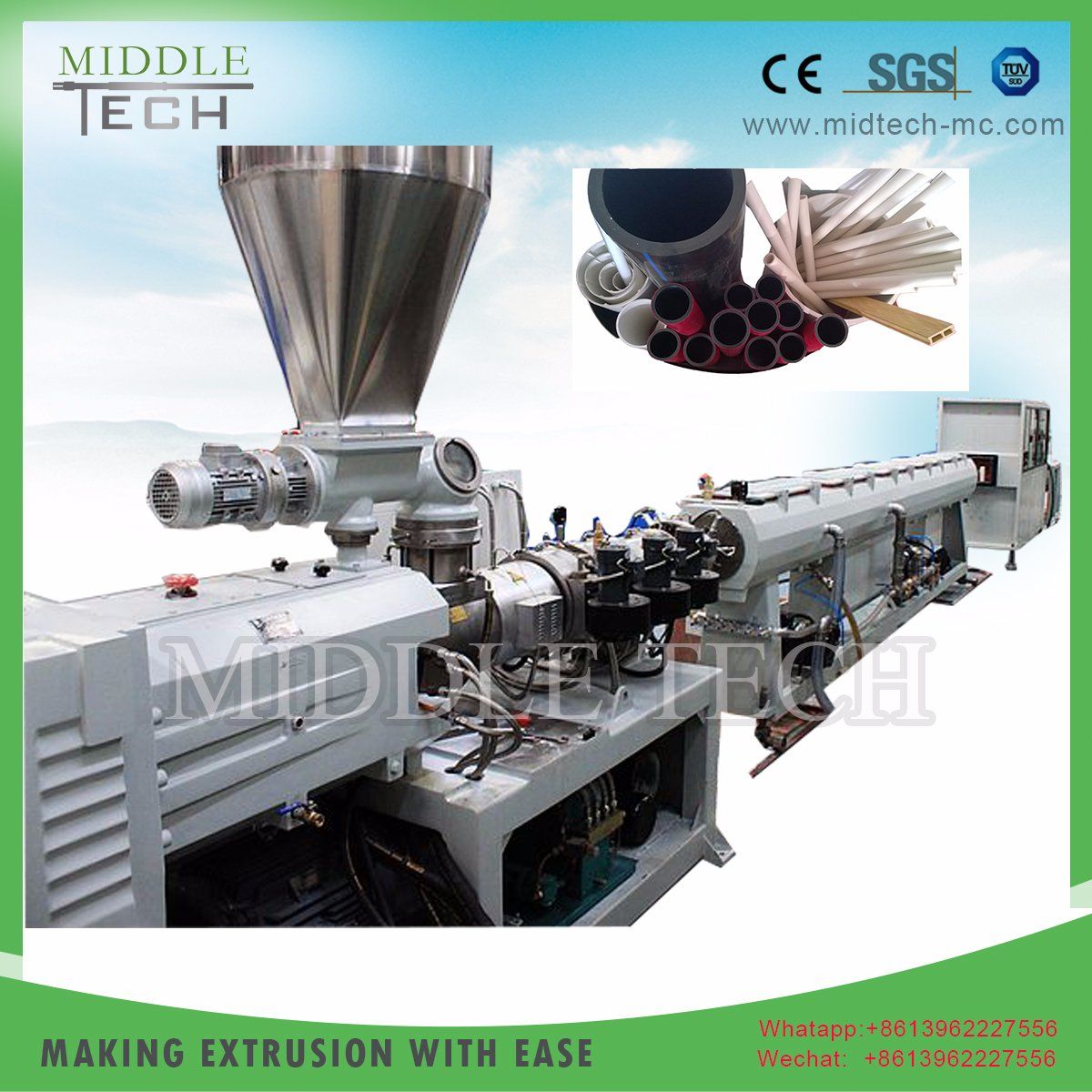

PVC pipe extruder machine line : consists mainly of

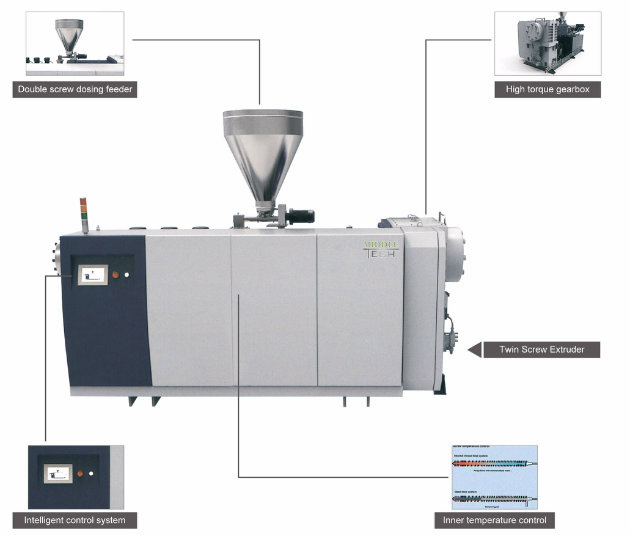

Twin screw conical (parallel) extruder,

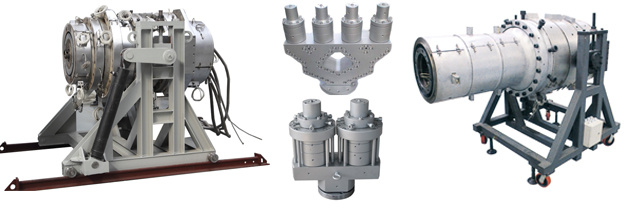

Mould

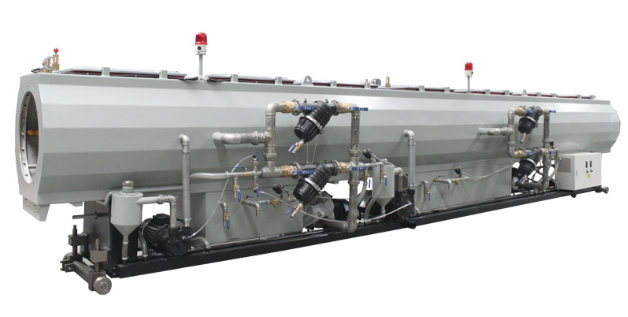

Vacuum calibrating tank,

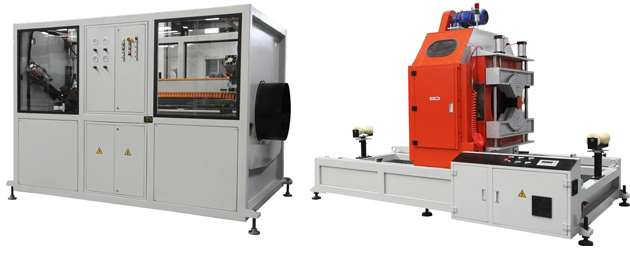

Haul-off unit &Cutting unit,
Feature of Machine:
1. Applied with imported A/C inverter.
2. Famous brand of vacuum pump and driving motor
3. Hal-off Machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc.
4. Saw cutting or planet cutting can be applied
5. it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high.
If you are interest in our machine, that would be our honor to provide information for you.
Main parameter of PVC pipe production line extruder machine| Extruder model | SJZ-51/105 | SJZ-55/110 | SJSZ-65/132 | SJSZ-80/156 | SJSZ-92/188 |
| Driving motor (kw) | 15 | 37 | 37 | 55 | 90 |
| Pipe diameter range(mm) | 16-40 | 20-110 | 50-200 | 200-400 | 400-630 |
| Water pump | 3kw | 4kw | 5.5kw | 5.5kw X 2pcs | 7.5kw X 2pcs |
| Vacuum pump | 2.2kw X 2pcs | 4kw | 4kw | 4kw X 2pcs | 7.5kw 5.5kw X 2pcs |
| Caliber Length(mm) | 5000 | 6000 | 6000 | 8000 | 6000, 3000 |
| Water cooling tank | No | No | 5000 | 6000 | 100000 |
| Hauling motor | 0.75kw 4pcs | 2.2kw | 3.7kw | 7.5kw | 18.5kw |
| Hauling belt | 4pcs | 2pcs | 2pcs | 4pcs | 6pcs |
| Cutting motor | 1.1kw 2pcs | 2.2kw | 3.7kw | 3.7kw | 3.7kw |
| Inverter brand | ABB | ABB | ABB | ABB | ABB |
| Contactor brand | Schneider | Schneider | Schneider | Schneider | Schneider |
If you need any support, please don't hesitate to contact us on 0086-13962227556.
Middle Tech Industry Co., Ltd-- the leading manufacture for plastic extrusion technology in China.
We established in 2009 which occupied more than 5000sqm modernized workshop and 30 stuffs including more than 10 rich-experience engineers specially for the engineer teams and after-sell service team. With the step of internationalization, we have gain a high reputation by cooperate with more frontier, such as Batternfeld.
We inherit develop target: "manufacture+innovation+dedicate"; And our belief: "Creating sustainable value for customer ". We concentrate on provide turn-key solution and provide services through our typical products and services; Meanwhile professional service teams insure more stabilize operations.
Now We pride that our footprint spread all over China and world around: We have exported our product to more than 40 countries and 100 groups customers, like USA, Brasil, Nigeria, UAE, Spain, etc. And our after sell services center have been setup in Nigeria, Brasil and UAE.
We provide various constant solutions and customized products on:
