| Prod Model: |
SK-40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Sk-40 |
| Type: |
Percussion Hammer |
| Brand: |
SMT |
Product Description
We have all types for pneumatic vibrator.Pls tell us which type do you need when you placed the order!!!

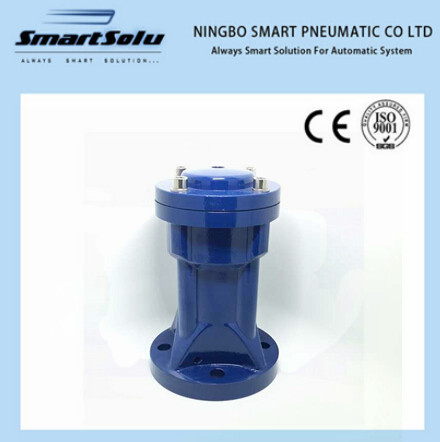

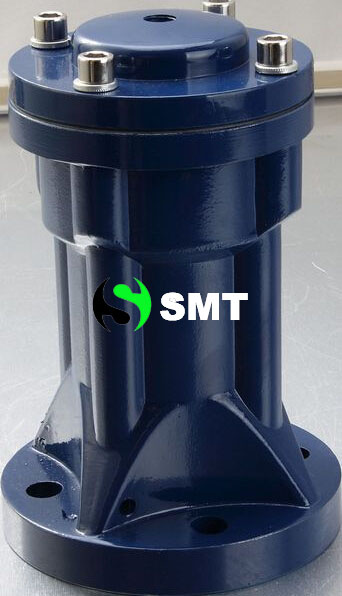

Type:SK Series pneumatic percussion hammer
GT Series pneumatic gear vibrator
K Series pneumatic ball vibrator
R Series roller vibrator
SK series for Industry
1. Product DescriptionPneumatic Percussion Hammer is widely used in material separating, material conveying, hopper exhausting, powder falling
Supporting, material tamping and so on. It is an advanced, innovative and unique device of facilitating powder falling. This product
Can automatically prevent the adhesion, blocking and bridging during powder conveying in pipeline, hopper and storage bin, thus
Reducing the damage and deformation to walls of equipment. This product is extensively applied in chemical, fertilizer, food,
Pesticides, medicine, ceramics, glass, cement, fuel and other powder processing industries.
2. Product Features1) Massive magnetic impact, good effect in powder falling
2) Pressure > 3kgf/cm2, less air used
3) Low running cost, good performance of energy-saving
4) Simple structure, easy to dismantle
5) Reliable quality, low failure rate.
6) Percussion interval can be adjusted
7) Various of specification and types

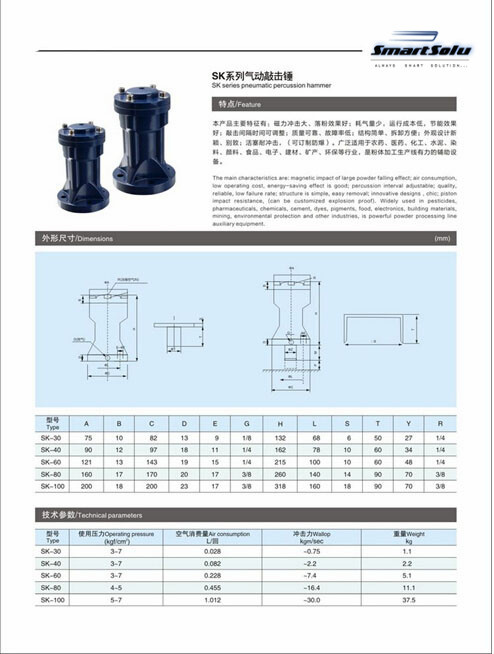

| Technical parameters |
| Type | Operating Pressure(kgf/cm²) | Air consumption(/min) | Wallop
(kgm/sec) | Weight
(Kg) |
| SK-30 | 3-7 | 0.028 | ~0.75 | 1.1 |
| SK-40 | 3-7 | 0.082 | ~2.2 | 2.2 |
| SK-60 | 3-7 | 0.228 | ~7.4 | 5.1 |
| SK-80 | 4-5 | 0.455 | ~16.4 | 11.1 |
| SK-100 | 5-7 | 1.012 | ~30.0 | 37.5 |
