SL62 Galvanized Reinforcement Concrete Steel Wire Mesh
| Price: |
US $ 12-15/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
HARVEST |
| Weave Style: |
Plain Weave |
| Wire Diameter: |
8.55mm |
| Hole Shape: |
Square |
| Application: |
Cages |
| Material Type: |
Stainless Steel Wire |
| Certification: |
ISO9001 |
Product Description

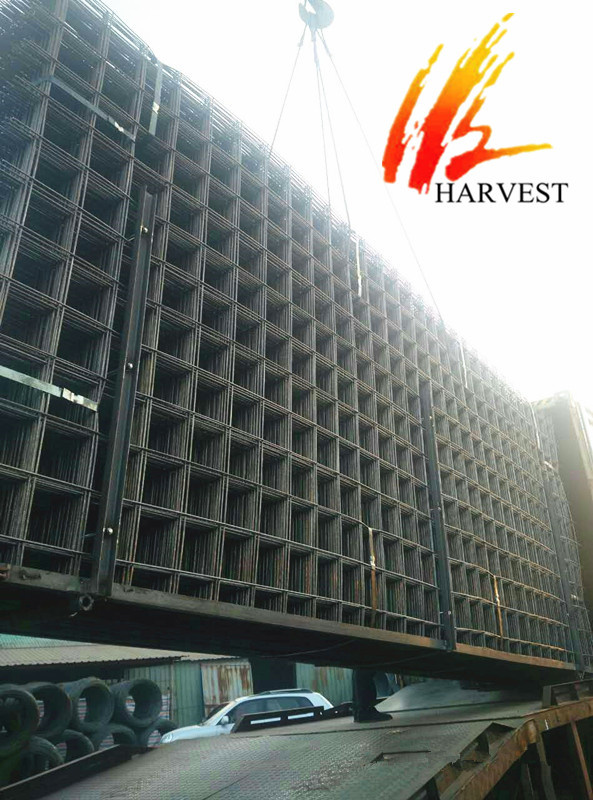

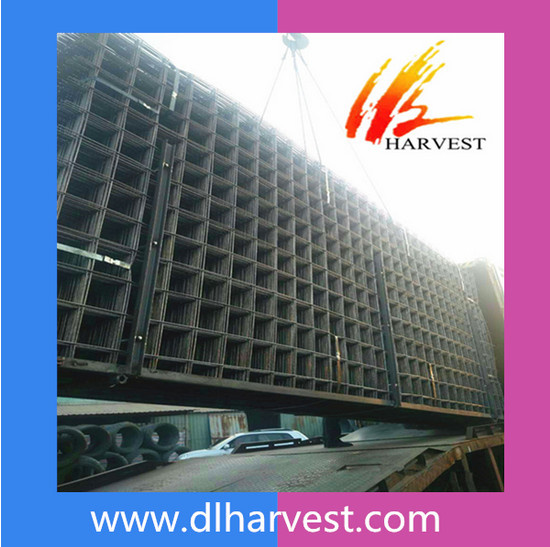

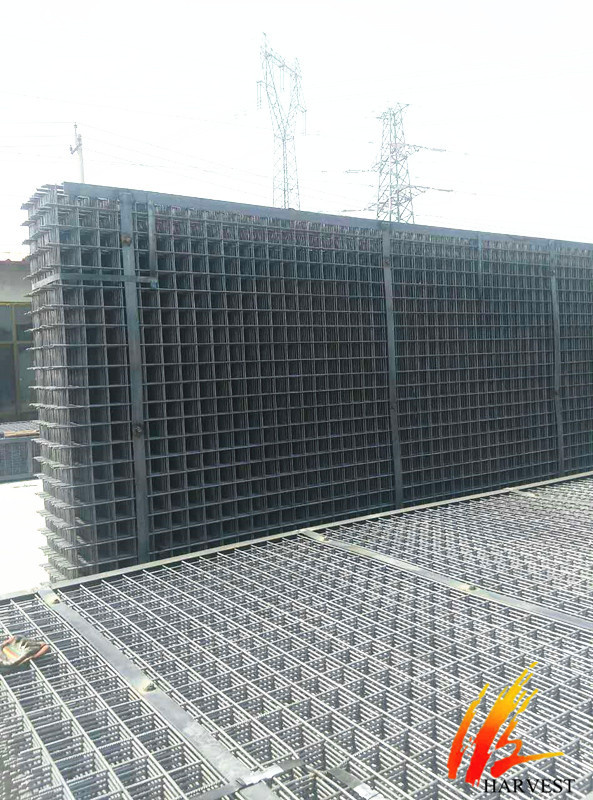

SL-62 welded reinforcing mesh in sheet form-RIBBED AND UNCOATED welded wire mesh
Product Description of welded wire mesh
| TYPE | DIA. | MESH | | SIZE | | WEIGHT |
| | 4.00MM | 200X200MM | | 2.2MX5.8M | | 12.6KG |
| SL52 | 4.75MM | 200X200MM | | 2.2MX5.8M | | 16.7KG |
| | 5.00MM | 200X200MM | | 2.2MX5.8M | | 19.2KG |
| SL62 | 6.00MM | 200X200MM | | 2.2MX5.8M | | 26.9KG |
| SL72 | 6.75MM | 200X200MM | | 2.2MX5.8M | | 34.2KG |
| | 7.50MM | 200X200MM | | 2.2MX5.8M | | 43.1KG |
| SL82 | 7.60MM | 200X200MM | | 2.2MX5.8M | | 43.5KG |
| | 7.00MM | 200X200MM | | 2.2MX5.8M | | 35.8KG |
| | 6.30MM | 200X200MM | | 2.2MX5.8M | | 29.5KG |
| | 7.10MM | 200X200MM | | 2.2MX5.8M | | 38.0KG |
| | 8.00MM | 200X200MM | | 2.2MX5.8M | | 48.5KG |
| F92 | 8.55MM | 200X200MM | | 2.2MX5.8M | | 54.9KG |
| F102 | 9.50MM | 200X200MM | | 2.2MX5.8M | | 69.5KG |
Dalian HARVEST Metal Fibres Co., Ltd., Jointly invested by HARVEST Trading Co., Ltd. Dalian, China and Dramicom, France, produces various types of low carbon steel and stainless steel fibres for refractory and concrete, satisfying applications either from civil construction or refractory industry. Applying specially designed facilities, and its own laboratory of update equipments, HARVEST Metal Fibres Co., Ltd is capable not only at producing steel fibres precisely to the standard of AISI, JIS, the National relevant standards, but also can carry out strict quality control through out the process.
Dalian HARVEST Metal Fibres Co., Ltd., is gratified in the steel fibres quality satisfaction to the clients in Japan, Europe, North America, Australia, and in the domestic market as well.
Steel fibers currently produced cover the following type:
1. Melt extracted fibers (ML-)
Regular applied desihnation: AISI 430, 446, 304, 310 etc
Nominal diameter * length: 0.5*12/20/25/30/35mm
2. Slit sheet fibers(S-)
Regular applied desihnation: JIS SUS430, low carbon steel sheet
Nominal diameter * length: 0.5*6/10/20/25/30/35/50mm
Different forms selectable: Straight, waved, straight pressed, etc
3. Cold drawn wire fibers(W-)
Regular applied desihnation: AISI 304, 310, or low carbon steel wires cold drawn
Nominal diameter * length: 0.4*6/10/15/20/25/30/35/50mm
0.5*6/10/15/20/25/30/35/50mm
0.6*6/10/15/20/25/30/35/50mm
Different forms selectable: End hooked, waved, s raight, etc
