Slewing Bearing for Belt Type Cloth Machine

Name: Slewing Bearing for Belt Type Cloth Machine
Brand: tool-buy.com
SKU: 728668785
Availability: InStock
Rating: 4.4 (106 reviews)

Price:	US $ 100-5000/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Xuzhou Fenghe Slewing Bearing Co., Ltd.

Showroom Product Company Profile

Prod Model:	130.32.1120
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Machinery Parts

Product Description

Own 20, 000m² Production facility and 10, 000m² Forging workshop.
Heat treated six times throughout production.

Model No.: 130.32.1120
Brand: Fenghe

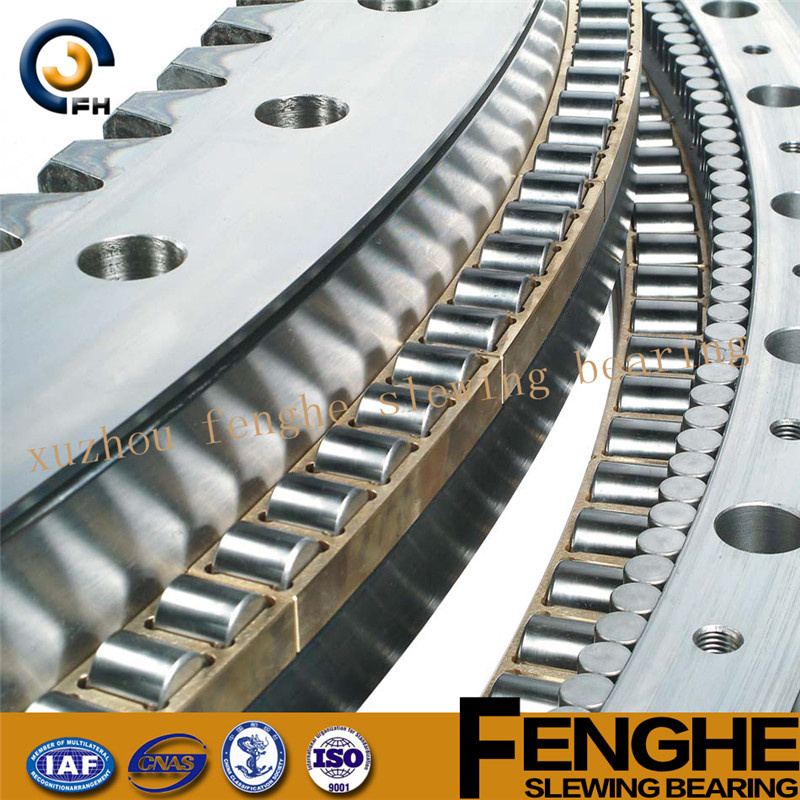

No. Of rows: Three rows
Inner structure: Roller
Gear option: None Gear
No. Of mounting holes: 40
Inside diameter: 1284mm
Outside diameter: 956mm
Thickness: 182mm
Weight: 820kg

Other details:
Rich experience
Excellent engineers
High quality bearing
Competitive price
Prompt delivery and best services
Brand: Feng He
Dimeter range: 200mm-7000mm
Material: 50Mn, 42CrMo
Seals type: Rubber gasket, iron or high temperature seal
OEM: Available
Certification: ISO9001: 2008/ISO14001: 2004/OHSAS 18001: 2007
Packing details: Sea worthy packing in wooden case loaded in container

Application Fields:
Wind Power Field
Metallurgical Machinery
Light Industry
Heavy Equipments
Port/Marine Machinery
Military Products.
Construction Machinery Mining
Steel Works Equipment
Sewage Treatment Plant
Agricultural Machinery

		Dimensions			Fixing Holes						Structure Size			Gear data		External gear data		Internal gear data
Code	Curva	D (mm)	d (mm)	H (mm)	D1 (mm)	D2 (mm)	dn1 dn2(mm)	dm1 dm2(mm)	L (mm)	n	n1	H1(mm)	h (mm)	b (mm)	m (mm)	da (mm)	z	da (mm)	z
13.25.500	1	634	366	148	598	402	18	M16	32	24	4	138	32	80	5 6	664 664.8	130 108	337 338.4	68 57
13.25.560	2	694	426	148	658	462	18	M16	32	24	4	138	32	80	5 6	724 724.8	142 118	397 398.4	80 67
13.25.630	3	764	496	148	728	532	18	M16	32	28	4	138	32	80	6 8	808.8 806.4	132 98	458.4 459.2	77 58
13.25.710	4	844	576	148	808	612	18	M16	32	28	4	138	32	80	6 8	886.8 886.4	145 108	536.4 539.2	90 68
13.25.800	5	964	636	182	920	680	22	M20	40	36	4	172	40	120	8 10	1006.4 1008	123 98	595.2 594	75 60
13.32.900	6	1064	736	182	1020	780	22	M20	40	36	4	172	40	120	8 10	1102.4 1108	135 108	691.2 694	87 70
13.32.1000	7	1164	836	182	1120	880	22	M20	40	40	5	172	40	120	10 12	1218 1221.6	119 99	784 784.8	79 66
13.32.1120	8	1284	956	182	1240	1000	22	M20	40	40	5	172	40	120	10 12	1338 1341.6	131 109	904 904.8	91 76
13.40.1250	9	1445	1055	220	1393	1107	26	M24	48	45	5	210	50	150	12 14	1509.6 1509.2	123 105	988.8 985.6	83 71
13.40.1400	10	1595	1205	220	1543	1257	26	M24	48	45	5	210	50	150	12 14	1665.6 1663.2	136 116	1144.8 1139.6	96 82
13.40.1600	11	1795	1405	220	1743	1457	26	M24	48	48	6	210	50	150	14 16	1873.2 1868.8	131 114	1335.6 1334.4	96 84
13.40.1800	12	1995	1605	220	1943	1657	26	M24	48	48	6	210	50	150	14 16	2069.2 2076.8	145 127	1531.6 1526.4	110 96
13.45.2000	13	2221	1779	231	2155	1845	33	M30	60	60	6	219	54	160	16 18	2300.8 2300.4	141 125	1702.4 1699.2	107 95
13.45.2240	14	2461	2019	231	2395	2085	33	M30	60	60	6	219	54	160	16 18	2556.8 2552.4	157 139	1926.4 1933.2	121 108
13.45.2500	15	2721	2279	231	2655	2345	33	M30	60	72	8	219	54	160	18 20	2822.4 2816	154 138	2185.2 2188	122 110
13.45.2800	16	3021	2579	231	2955	2645	33	M30	60	72	8	219	54	160	18 20	3110.4 3116	170 153	2491.2 2488	139 125
13.50.3150	17	3432	2868	270	3342	2958	45	M42	84	72	8	258	65	180	20 22	3536 3537.6	174 158	2768 2758.8	139 126
13.50.3550	18	3832	3268	270	3742	3358	45	M42	84	72	8	258	65	180	20 22	3936 3933.6	194 176	3168 3154.8	159 144
13.50.4000	19	4282	3718	270	4192	3808	45	M42	84	80	8	258	65	180	22 25	4395.6 4395	197 173	3616.8 3610	165 145
13.50.4500	20	4782	4218	270	4692	4308	45	M42	84	80	8	258	65	180	22 25	4901.6 4895	220 193	4122.8 4110	188 165

Thanks for giving us a chance to introduce ourselves:

XuZhou FengHe Slewing Bearing Co., Ltd. Established in 2004 with registered capital of 20 million yuan to facilitate its self-support export, which has been engaged in producing and designing slewing bearing for the past 30 years. It covers an area of 38016 square meters, among which, the modernized construction area of production plant is nearly 20000 square meters, and forging workshop is nearly 10000 square meters.

The company specializes in Six types slewing bearings, including Single-row ball type (Series 01, series HS, and series Q), double-row ball type (series 02), three-row roller type (series 13), single-row cross roller type (series 11), double-line ball type (series 07) and ball-roller combined type. Our products are widely used in engineering machinery, building machinery, metallurgical and mining machinery, shipping port machinery, environmental protection machinery, light industry machinery, petroleum chemical machinery, engineering vehicle, war industry equipments and so on. The model of the products covers various standards and nonstandard specifications from 150mm to 5000mm.

The products of our company have been already registered with the trade mark of "Fenghe". The series of products produced by our company have passed the quality inspection identification of the national special type mechanical part quality testing and played a leading role in the industry. Our company is rewarded as "an enterprise which strictly abides by contracts and keeps promise" and "a enterprise with high quality". At the same time, we have already passed through production part approval procedure (PPAP) training. Our company passed ISO9001: 2008 quality system certification work in 2012, then passed ISO14001: 2004 and OHSAS 18001: 2007 in 2013. We are one of the main slewing bearing manufacturers in China. The relevant products have already passed product testing and certification of Chinese Classification Society (CCS).

The company's products are sold to all parts of our country and are exported to 42 countries all over the world such as U. S. A., Britain, France, Malaysia, Singapore, Germany, Japan, Brazil, Russia, Czech, Finland, Holland, Sweden, Irish, Turkey, the United Arab Emirates, Canada, Spain, which have won extensive acceptance and recognition from users.
