Sliding Panel Saw 4200mm, Big Sale.
| Price: |
US $ 2000-4000SET |
| Min Order: |
1SET |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
RTJ45A |
| Cutting Capacity Of Scoring Saw: |
3200mm |
| Saw Blade Tilting Angel: |
90°-45° |
| Max Diameter Of Main Blade: |
400mm |
| Main Blade Diameter: |
30mm |
| Type: |
Table Panel Saw |
| Layout: |
Vertical |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Certification: |
SGS |
Product Description

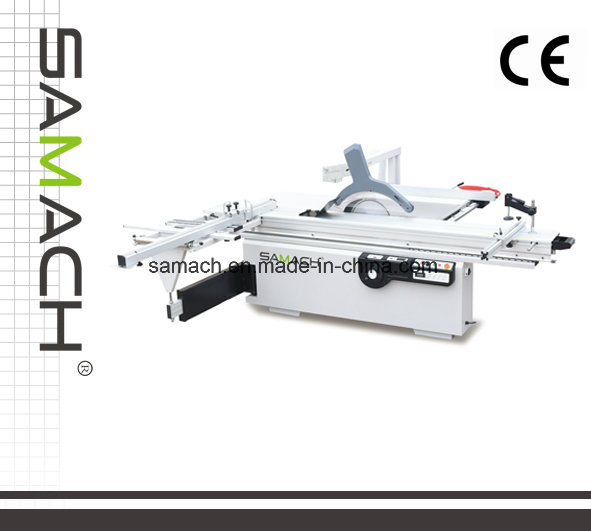

Panel Saw (RTJ45A) 3200mm Length Saw Blade 400mm 5.5kw Motor Sliding Panel Saw

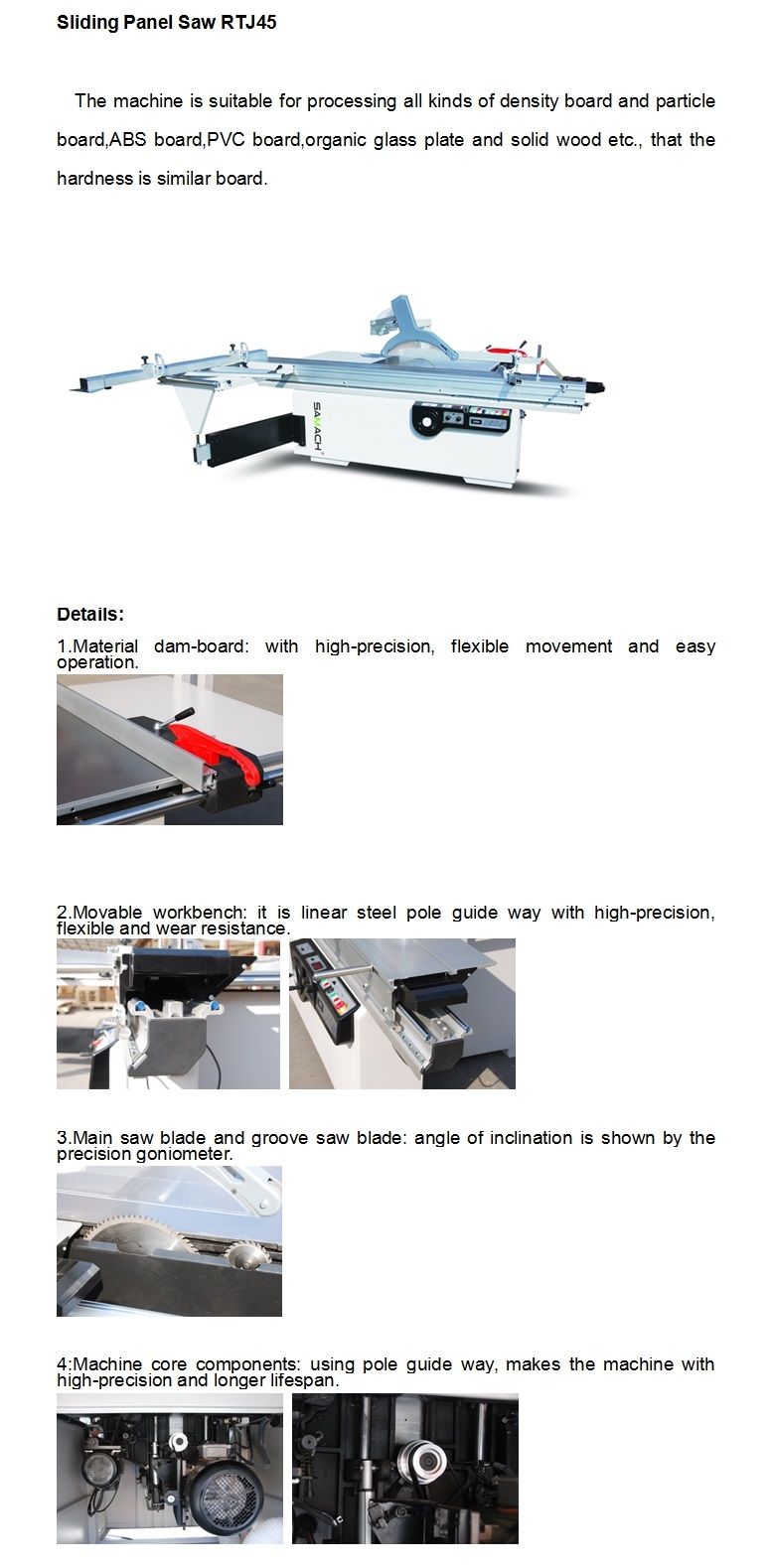

The machine is suitable for processing all kinds of density board and particle board,ABS board,PVC board,
organic glass plate and solid wood etc., that the hardness is similar board.
Details:
1.Material dam-board: with high-precision, flexible movement and easy operation.
2.Movable workbench: it is linear steel pole guide way with high-precision, flexible and wear resistance.
3.Main saw blade and groove saw blade: angle of inclination is shown by the precision goniometer.
4.Machine core components: using pole guide way, makes the machine with high-precision and longer lifespan.

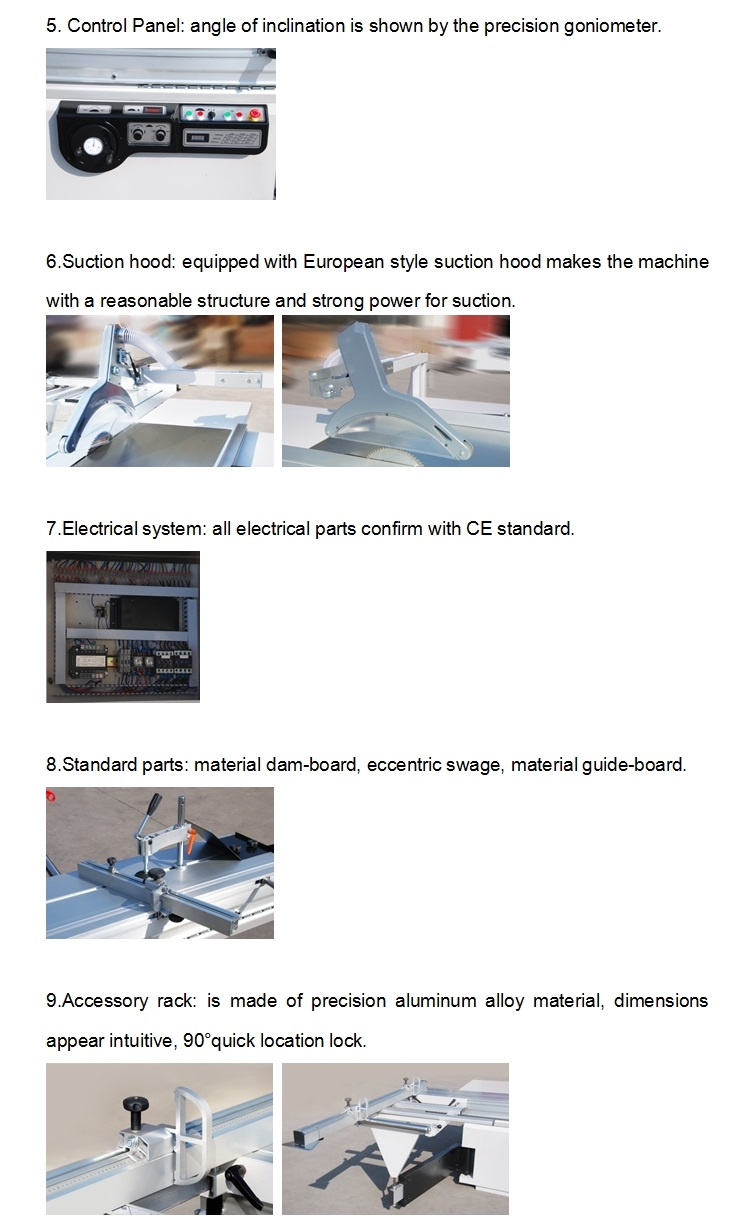

5. Control Panel: angle of inclination is shown by the precision goniometer.
6.Suction hood: equipped with European style suction hood makes the machine with a reasonable structure and strong power for suction.
7.Electrical system: all electrical parts confirm with CE standard.
8.Standard parts: material dam-board, eccentric swage, material guide-board.
9.Accessory rack: is made of precision aluminum alloy material, dimensions appear intuitive, 90°quick location lock.
Parameters: | Model | RTJ45 |
| Cutting capacity of scoring saw | 3000mm |
| Cutting width of right sawing | 1240mm |
| Saw blade tilting angel | 90°-45° |
| Max diameter of main blade | 400mm |
| Main blade diameter | 30mm |
| Scoring saw blade diameter | 120mm |
| Scoring saw blade mandrel diameter | 20mm |
| Main blade(Scoring saw blade) speed | 3000/4000\5000(5600)r.p.m |
| Blade unit outlet diameter | 120mm |
| Air suction quantity | 1300m3/h |
| Worktable height | 910mm |
| Sliding table width | 378mm |
| Cutting height | 130mm/92mm |
| Worktable size | 1100X635 |
| Main motor | 5.5KW |
| Scoring saw motor | 0.75(1)KW(HP) |
| Machine weight | 775kg |
| Overall dimensions(mm) | 3400*3700*1500 |
| Package size(mm) | 2195*1150*1070
Sliding panel table:
3300X435X280 |
