| Prod Model: |
MJ2325E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Power: |
3HP |
| Motor Spindle Rotation: |
2800rpm/50Hz;/3400rpm/60Hz |
| Saw Blade Size: |
254× 25.4mm |
| Dimension(L*W*H): |
88X70X105cm |
| Weight: |
222kgs |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
Precision |
| Certification: |
ISO |
Product Description
FOB Price: US $ 1, 100 - 1, 500 / Set
Min. Order Quantity: 5 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Type: Table Panel Saw
Use: Woodworking
Style: Horizontal
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: MJ2325E
Usage: Woodworking
Voltage: 230V
Power(W): 3HP
Dimension(L*W*H): 88x70x105cm
Weight: 222kgs
Certification: CE
Warranty: 1year
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: PACKING: IN COMPREG CASES Net / Gross weight Dimensions Main compreg case 222/257kg 88X70X105cm Auxilliay compreg case 25X40kg 161X32X25cm Quantity per 20'/40' container 38/76sets
Delivery Detail: 30-45days
Specifications
Categories: Panel Saw
Product number: MJ2325E

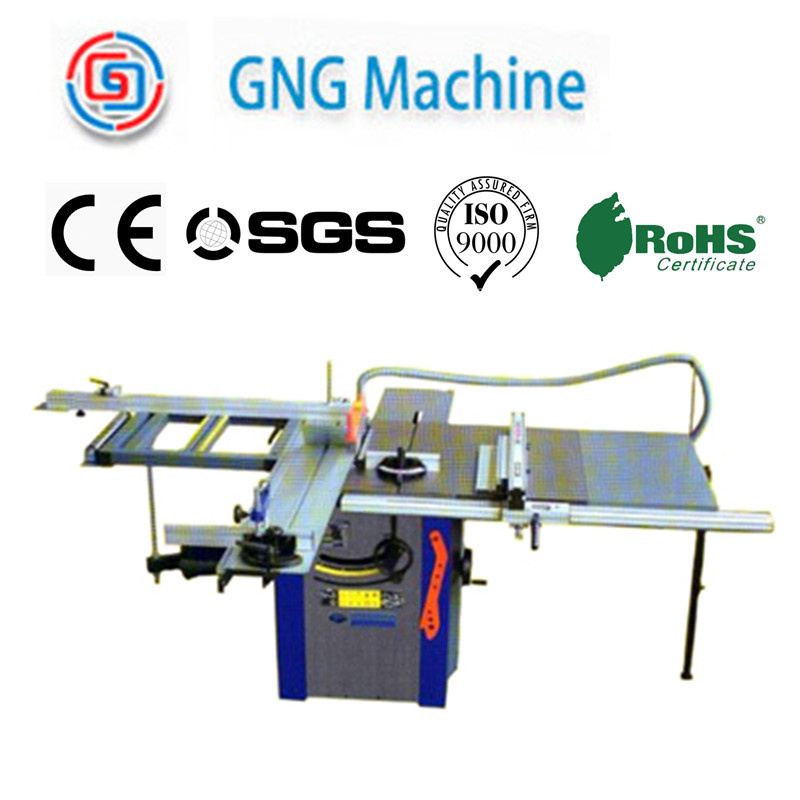

Product name: Sliding table panel saw MJ2325E
Sliding table panel saw MJ2325E
TECHNICAL SPECIFICATIONS
| Model | MJ2325E(10" ) | MJ2330E(12" ) |
| Motor Power | 3HP | 4HP |
| Motor Spindle Rotation | 2800RPM/50Hz;
3400RPM/60Hz | 2800RPM/50Hz;
3400RPM/60Hz |
| Saw Blade Size | 254× 25.4mm | 315× 30mm |
| Blade Pivot Capacity | 0-45° | 0-45° |
| Main Table Size | 560× 800mm | 600× 800mm |
| Extension Table Size(2pcs) | 305× 800mm | 440× 800mm |
| Rear Extension Table Size | 600× 530mm | 600× 530mm |
| Sliding Table Size | 500× 400mm | 500× 400mm |
| Cutting Capacity @ 0° | 75mm | 100mm |
| Cutting Capacity @ 45° | 60mm | 75mm |
| Dust Extension Outlet | 100mm | 100mm |
Qingdao G&G Machinery Co., Ltd. is doing business with machinery importers from all over the world. We have exported many kinds of machinery and tools for many years.
Our products are Engineer lathes, MIni Lathe, CNC lathe, CNC CENTER, Log Splitter, Concrete MIxer Turning Tools, Wood Chuck., Drill presses, Wood working machinery, wood cutting band saws, metal-cutting machinery, engineer lathes, mini lathes, transportation and power machinery, wheel barrows, Planers & thicknessers, dust collectors, Metal cutting band saws, Multi-function mixers, bench vice. The above-mentioned products are all made in China. We welcome all the friends from all over the world to visit our company for trade talks.
Main Business:
As a professional machinery manufacture and exporter, we provide many kinds of machines, such as metal lathe, milling /Milling machine, Log Splitter, Concrete Mixer, Wood working machinery, Wood Turning Tools and wood chuck, wood cutting band saws, metal-cutting machinery, engineer lathes, mini lathes, transportation and power machinery, wheel barrows, Planers & thicknessers, dust collectors, Metal cutting band saws, Multi-function mixers, bench vice.
