| Prod Model: |
JM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
5~650kn |
| Rope Guider: |
Included |
| Hydraulic Brake: |
Included |
| ISO 9001: 2008: |
Passed |
| Voltage Lower Protection Function: |
Included |
| ISO 14001: 2004: |
Passed |
| Limite Switch: |
Included |
| Electric System: |
Siemens |
| Current Overload Protection System: |
Included |
| Custom Services: |
Available |
| Type: |
Electric Winch |
| Driven Type: |
AC |
| Carrying Capacity: |
Weight Level |
| Tonnage: |
30T |
| Running Mode: |
Stationary |
| Feature: |
Explosion-Proof |
| Standard: |
Nonstandard |
Product Description

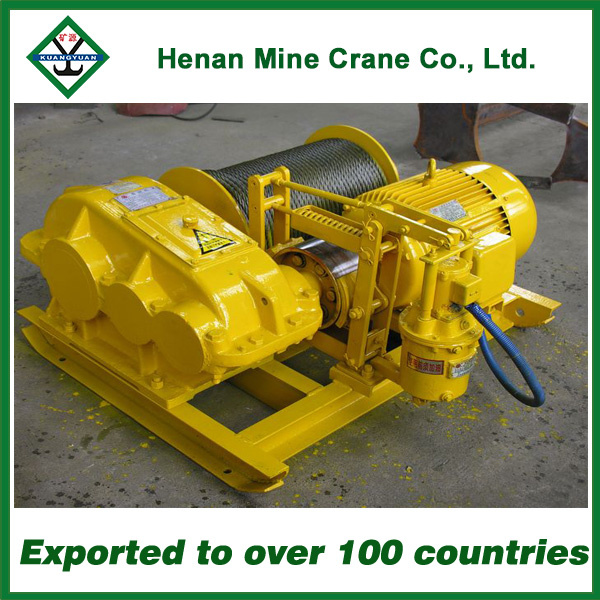

JM model wire rope electric winch, most of time, follow-operated by people on the ground, also can operate in the room, or operate with wireless type with far way, except exclusive-use, also can match-use with electric trolley and plain trolley, geared trolley, these trolleys with simple structure, light weight, easy to load and unload, can use like this forever, but also can be used temporarily,
It is widely used in port, workshop, warehouse, construction and many kinds producing-line, so is necessary equipment for lifting goods, raising labor efficiency, improving working conditions.
JK model wire rope electric winch has fast hoisting speed, it is used for hoisting and unloading the weight materials, such as all kinds of large and middle concrete construction of steel, installation and disassembly of mechanical equipment. It is suitable for construction and installation engineering of construction, mining area, factory and so on.
The standard capacity of electric winch: 1t, 1.6t, 2t, 3.2t, 5t, 6t, 8t, 10t, 12.5t, 13.5t, 16t, 20t, 25t, 32t, 50t, 65t.
The Max. Rope length reach to 1500m.
Advantage:
1. High versatility
2. Compact structure
3. Small volume, lightweight, convenience in using and transferring
4. Driving stably
5. Very light noise
6. With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.
7. Adjustable lifting or pulling speed for different usage environment.
8. This kind of electric wire rope winch can be applied to the lifting or pulling operating in construction water conservancy, forestry, mining and quay places etc
About us:
1. We are in Crane Hometown of China, could supply you the best quality crane, grab bucket and electromagnet with high technique, and the price is the best.
2. We could supply you all kinds of industry cranes from 0.25tons to 900tons, pass GB/T 19001-2000 idt ISO 9001: 2000, GB/T 24001-2004 idt ISO 14001: 2004, GB/T 28001-2001, OHSAS 18001: 1999, CE, GOST and so on.
About our electric winch
* We have 22 years of production history. We have cooperated with many famous company and project, such as 2w ton crane for Raffles Dockyard, Three Gorges Dam(First hydropower station in China), Xiluodu Hydropower Station(Second largest in China), The Second Bridge of Yellow River, Beijing-Shanghai High-Speed Railway, China railway 7th bureau and so on!
* Our electric winches have passed CE, GOST, GB/T 19001-2008 idt ISO 9001: 2008 and so on. We have export our product to many countries and get well feedback and many new orders again from them.
Basic parameter
Type |
Rated load
(KN) |
Rated speed
(M/MIN) |
rope capacity
(M) |
Rope diameter
(MM) |
Motor power
(KW) |
JM1 |
10 |
15 |
100 |
9.3 |
3 |
JM2 |
20 |
16 |
150 |
13 |
7.5 |
JM3.2 |
32 |
9.5 |
150 |
15.5 |
7.5 |
JM5 |
50 |
10 |
270 |
21.5 |
11 |
JM6 |
60 |
9.5 |
270 |
24 |
15 |
JM8 |
80 |
8 |
250 |
26 |
15 |
JM10 |
100 |
8 |
170 |
30 |
22 |
JM16 |
160 |
10 |
500 |
37 |
37 |
JM20 |
200 |
10 |
600 |
43 |
45 |
JM25 |
250 |
9 |
700 |
48 |
55 |
JM32 |
320 |
9 |
700 |
56 |
75 |
JM50 |
500 |
9 |
800 |
65 |
90 |
JM65 |
650 |
10.5 |
3600 |
64 |
160 |
JK1 |
10 |
22 |
100 |
9.3 |
4 |
JK 1.6 |
16 |
24 |
150 |
12.5 |
5.5 |
JIK2 |
20 |
24 |
150 |
13 |
7.5 |
JK3.2 |
32 |
25 |
290 |
15.5 |
15 |
JK5 |
50 |
30 |
300 |
21.5 |
30 |
JK8 |
80 |
25 |
160 |
26 |
45 |
JK10 |
100 |
30 |
300 |
30 |
55 |
