| Price: | US $ 500-2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | LA110 |
|---|---|
| Frequency Response: | 60Hz~18kHz(+-3dB) 50Hz~20kHz(-10dB) |
| Nominal Impedance: | Hf/Lf: 16ohm |
| Maximum Spl: | Hf: 131/137dB Lf:128/134dB |
| Power Rating(AES): | Hf/Lf: 80W/350W |
| Driver Number: | Lf: 1X10 Woofer; Hf: 1X3 Compression Driver |
| Sensitivity(@1W/1m): | Hf:112dB(2kz~16kz); Lf:103dB(500Hz~2kHz) |
| Weight: | 22.5kg |
| Speaker Cables: | 1-2+...Lf, 3-4+...Hf |
| Nominal Coverage(16dB): | 90 Degree(H) 10 Degree(V)Adjustable |
| Connectors: | 2xwp4 Connectors |
| Noise: | <95dB |
| Hi-Fi: | Hi-Fi |
| Operation Mode: | Wire / Remote Control |
| Speaker System: | Optional Combination |
| Speaker Material: | Wood |
| Application: | Club/Bar/Live Music Venus/Concert/Music Hall |
| Certification: | SGS |
| THD: | 0.005%-0.01% |
| Monitor: | None |

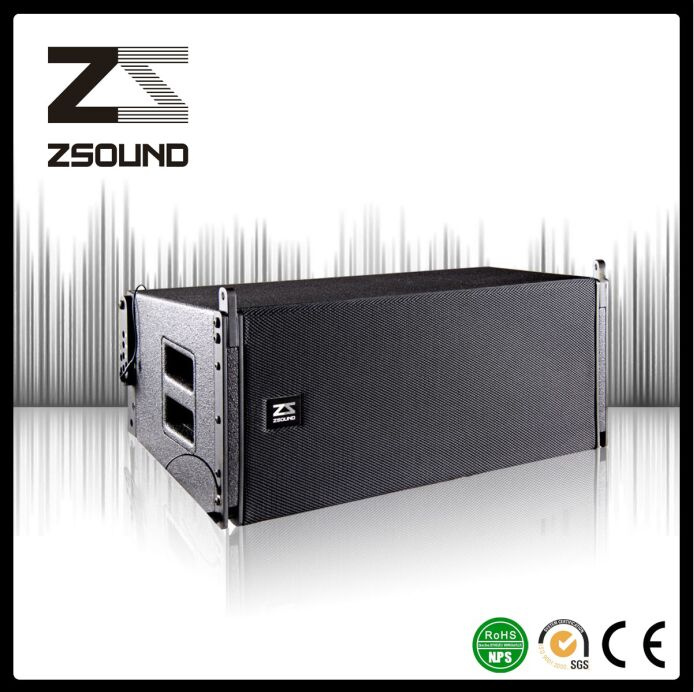

LA110 line array is a mini two way system, which provides 60Hz-18KHz frequency response, with flat frequency and phase response. One 75mm neodymium compression driver matches one 10" neodymium low-frequency driver to generate ultrahigh headroom, effectively decrease the weight of the enclosure, and obviously improve the ratio of SPL and Volume. LA110 utilizes one 350W, 10 inch paper cone neodymium LF driver in Low& Mid frequency part. A exclusively designed Mid-frequency Phase Plug installed in front of LF driver, effectively prevent the interference caused by MF comb filter, and optimize MF directivity. In HF part, one 75mm neodymium compression driver is combined with a plane wave transducer to generate accordant wave front. High frequency component driver, waveguide and one exponential horn. The compact LA110 can achieve max 137dB SPL output.
ZSOUND LA110 is a trapezoidal enclosure designed to make the two cabinets as close a possible, so as to reduce the cluster's invalid vocal gap and minimize the vertical side lobe. Each enclosure is adjustable form angle 0 to 5 degree, 1 degree per step, as well as 7.5 degree and 10 degree, totally 8 angles. Whilst 16 enclosures are handing together, the rigging kids provide 7:1 safety factor. The enclosure is made by multi-laminate plywood, with panel board in size 18mm and other side parts in size 15mm. It is finished by black textured water paint with high resistance.
LA110 System Advantage:
1). Small enclosure, light, only 25kg/pcs, with high SPL and Volume ratio; maximum headroom
2). Transmit 50Meter long distance, smooth voice on 12K frequency;
2). Neodymium high-sensitivity driver which is deal with and tested by 200 degree high temperature treatment.
3). Small bi-amp system, 16ohm nominal impedance, save amplifier
4). the plywood was import from Russia, Just go ahead use outdoor
5). Our handle cup is the same as LA, D&B. All of our spare parts are used Penn Elcom Company.
6). Share of China Market ≥6000pcs, While international market ≥3000pcs

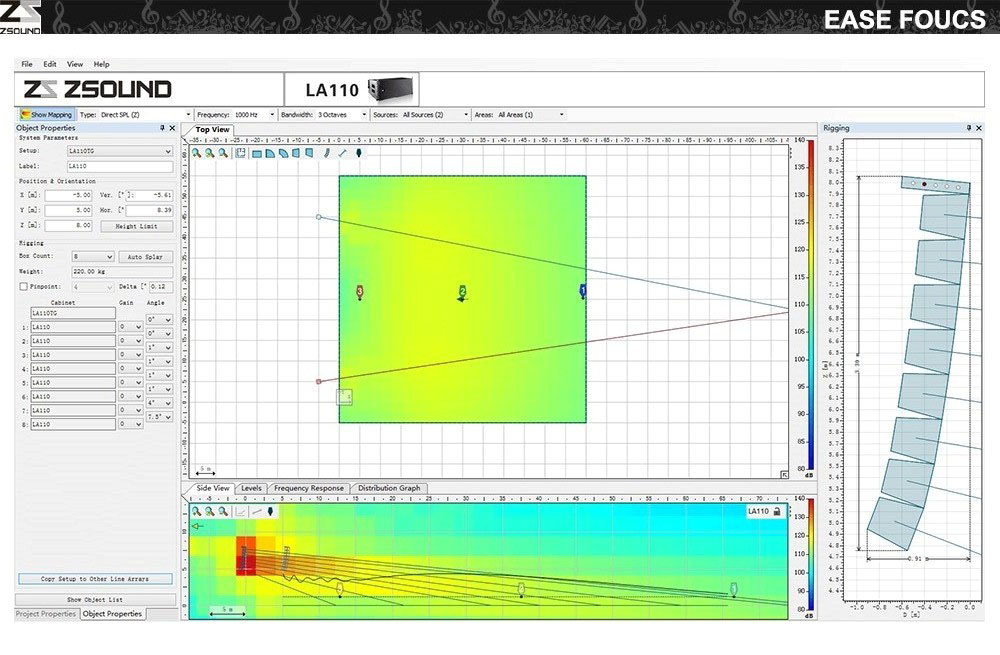

7). We use SMAART7, 3D directionality test, and CLIO electroacoustic measuring system, audio precision test,And all the data is open. We also have our own EASEFOCUS data and GLL picture for our LA110 system.
Features:
Small bi-amp system;
Neodymium high-sensitivity driver, maximum headroom;
small enclosure,light,high SPL and Volume ratio.
Specification:
| TECHNICAL SPECIFICATION | |
| Frequency Response: | 60Hz~18kHz(+-3dB) 50Hz~20kHz(-10dB) |
| Nominal Coverage: | 90°(H)10°(V)adjustable |
| Sensitivity (@1w/1m): | Hf:112dB(2Kz~16Kz) Lf:103dB(500Hz~2KHz) |
| Power Rating (AES): | Hf/Lf: 80W/350W |
| Nominal Impedance: | Hf/Lf: 16ohm |
| Maximum SPL: | HF: 131/137dB Lf:128/134dB |
| Drivers Number: | LF: 1x10 woofer; HF: 1x3 compression driver |
| PHYSICAL DATA | |
| Dimension (H*W*D): | 308(H)x580(W)x390(D)mm |
| Weights: | 22.5kg |
| Connectors: | 2*WP4 connectors |
| Speaker Cables: | 1-2+...Lf, 3-4+...Hf |
| Materials: | 15mm,18mm birch multi-plywood |
| Finish: | Black water paint |
| Grille: | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging: | 0,1 ,2,3,4,5,7.5 degree adjustable |
Applications:
Zsound Advantage:

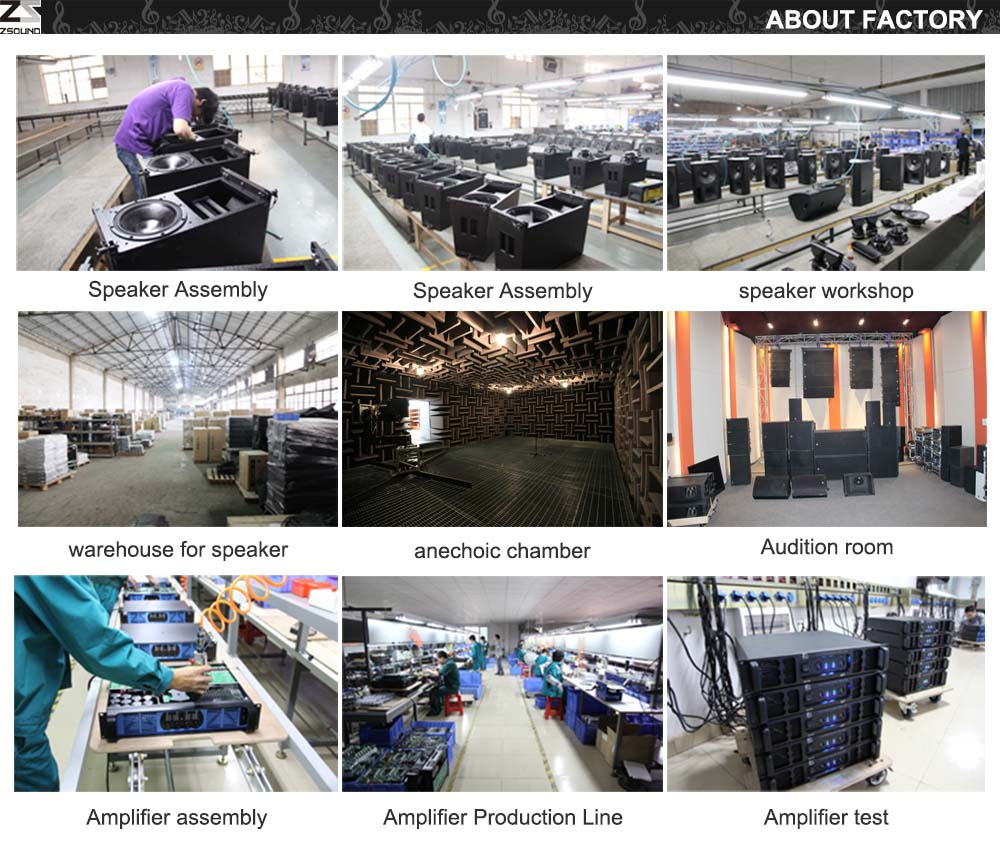

1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001.
4) Monthly Production Capacity: 2000pcs.
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers.
7) Convenient Transportation: 1 hour to Guangzhou Baiyun International Airport.
8) 24 hours on line service.
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock. 10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accepted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information. At the same time, please rest assured that your information is also safe here.
