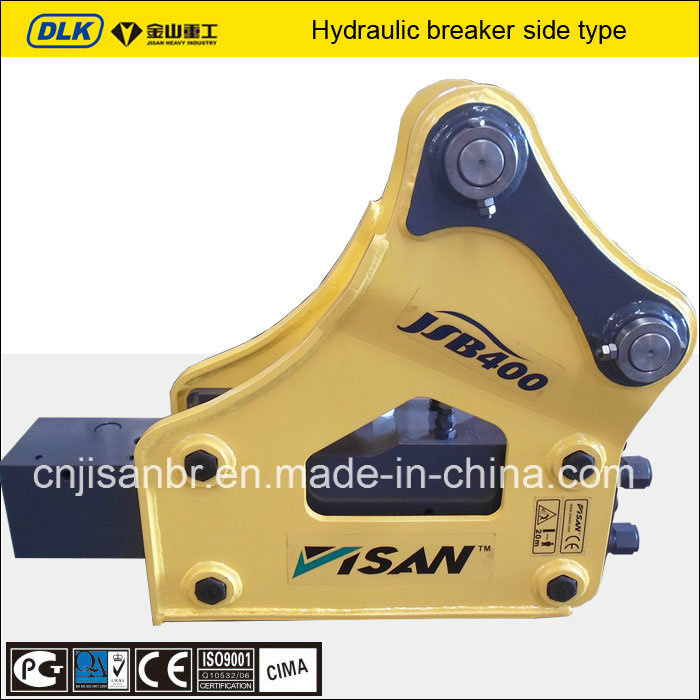

Small Hydraulic Concrete Breaker/ 3-5.5-100tons Excavator Hammer
| Price: |
US $ 8000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
JSB400S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Excavator Hammer |
| Color: |
Yellow Red Optional |
| Suitable Excavator: |
3-5.5 Tons |
| Chisel Diameter: |
68 Mm |
| OEM: |
Available for Concrete Breaker |
| Impact Rate: |
200-350 Bpm |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description
JSB400S hydraulic concrete breaker is compatible with various brand of excavators in 3-5.5 tons include: DOOSAN, Volvo, CAT, SNAY, HYUNDAI R, BOBCAT, CAT PALLET, Volvo, KOBELCO, KATO, KUBOTA, JCB, CASE, GEHL, ZOOMLION, YUCHAI, LG etc.
We have side type breaker, box type breaker and tope type excavator for your slectionThe advantage of hydraulic concrete breaker:- Incorporate much leading edge technology in hydraulic rock breaker. (Lower oil consumption, leading heat treatment technical, lower noise, long lifespan etc)
- Suitable with a wide range of excavators.
- Versatile application including rock broken, paving road, building demolition etc.
-Top type breaker is applied to special operation that in large elevation angle.
- Box type breaker namely silent breaker, which is sued in special project that noise is limited.
- One-stop service.
- Easy use and easy maintenance.
- Accumulator is added to all breaker models, for less hydraulic vibration in
System.The key parameter of hydraulic concrete breaker show you as follows:| THE SPECIFICATIONS OF SIDE TYPE BREAKER |
| Item\Model | Unit | JSB100S | JSB200S | JSB300S | JSB400S | JSB600S | JSB800S | JSB900S |
| Suitable Excavator | ton | 0.8-2.0 | 1.2-3.0 | 2.0-4.0 | 3.0-5.5 | 4.0-7.0 | 7.0-14.0 | 11.0-16.0 |
| Chisel Diameter | mm | 40 | 45 | 53 | 68/70 | 75 | 85 | 100 |
| Total Weight | kg | 70 | 80 | 165 | 254 | 264 | 486 | 853 |
| Overall Length | mm | 920 | 1100 | 1190 | 1347 | 1528 | 1920 | 2260 |
| Operating Pressure | kg/cm 2 | 90-120 | 90-120 | 90-120 | 110-140 | 110-160 | 120-170 | 150-170 |
| Required Oil Flow | L/min | 15-25 | 15-25 | 25-50 | 25-45 | 30-45 | 45-85 | 80-120 |
| Impact rate | bpm | 800-1400 | 700-1200 | 600-1100 | 500-900 | 500-800 | 400-700 | 400-700 |
| Hose Diameter | inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 |
| THE SPECIFICATIONS OF SIDE TYPE BREAKER |
| Item\Model | Unit | JSB1200S | JSB1600S | JSB1900S | JSB2800S | JSB3500S | JSB4500S | JSB5000S |
| Suitable Excavator | ton | 15-18 | 19-26 | 19-26 | 27-38 | 28-40 | 36-45 | 40-55 |
| Chisel Diameter | mm | 120 | 1350 | 140 | 150 | 155 | 165 | 175 |
| Total Weight | kg | 1300 | 1679 | 1898 | 2455 | 2650 | 3753 | 3910 |
| Overall Length | mm | 2530 | 2695 | 2810 | 2895 | 3152 | 3310 | 3400 |
| Operating Pressure | kg/cm 2 | 150-170 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 |
| Required Oil Flow | L/min | 90-120 | 120-160 | 130-170 | 150-190 | 170-220 | 200-300 | 210-290 |
| Impact rate | bpm | 400-700 | 400-700 | 400-600 | 350-500 | 250-400 | 250-350 | 200-350 |
| Hose Diameter | inch | 1 | 1 | 1 | 1 | 1 . 25 | 1 . 25 | 1 . 25 |
