| Prod Model: |
RY-CL801 |
| Type: |
RFID Card |
| Material: |
Alloy |
| Style: |
Modern |
| Remote Control: |
Without Remote Control |
| Power Type: |
DC |
| Data Storage Types: |
Online |
| Certification: |
FCC |
| Color: |
Golden |
| Usage: |
Gym SPA School Office |
| Surface Treatment: |
Painting |

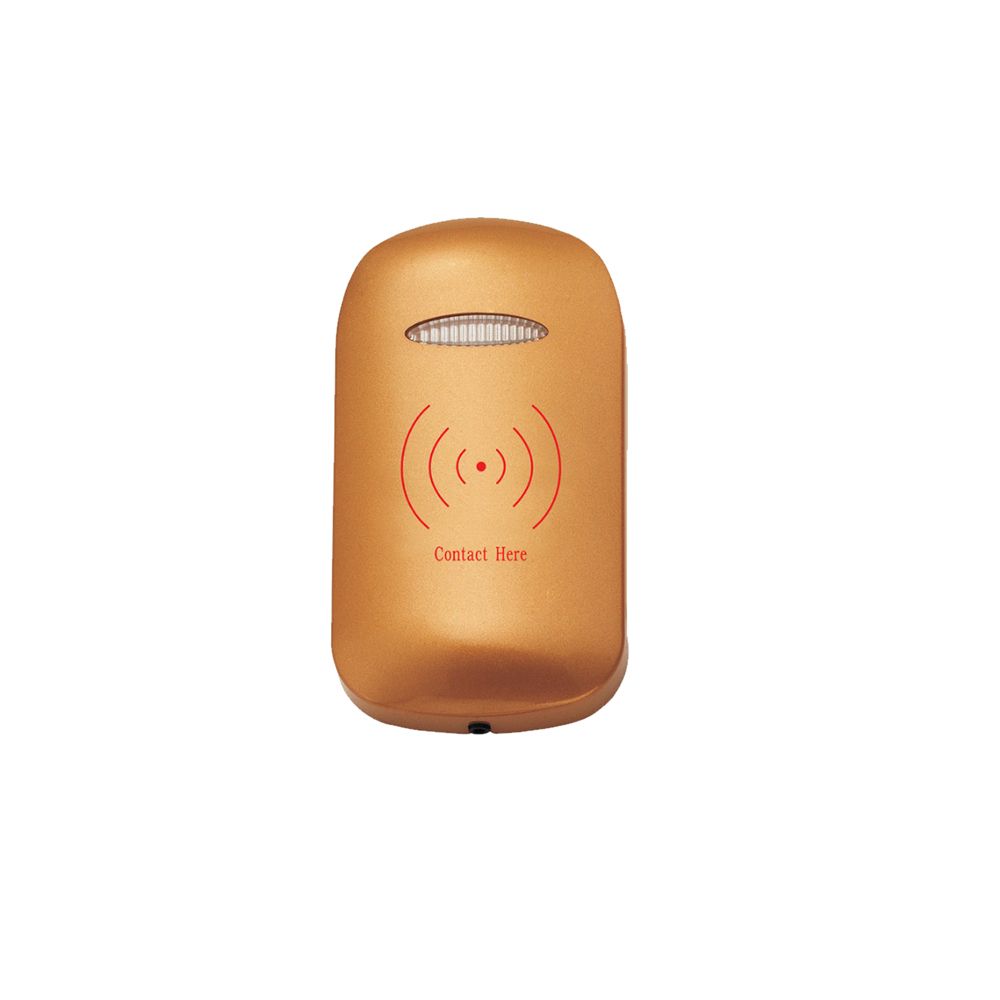

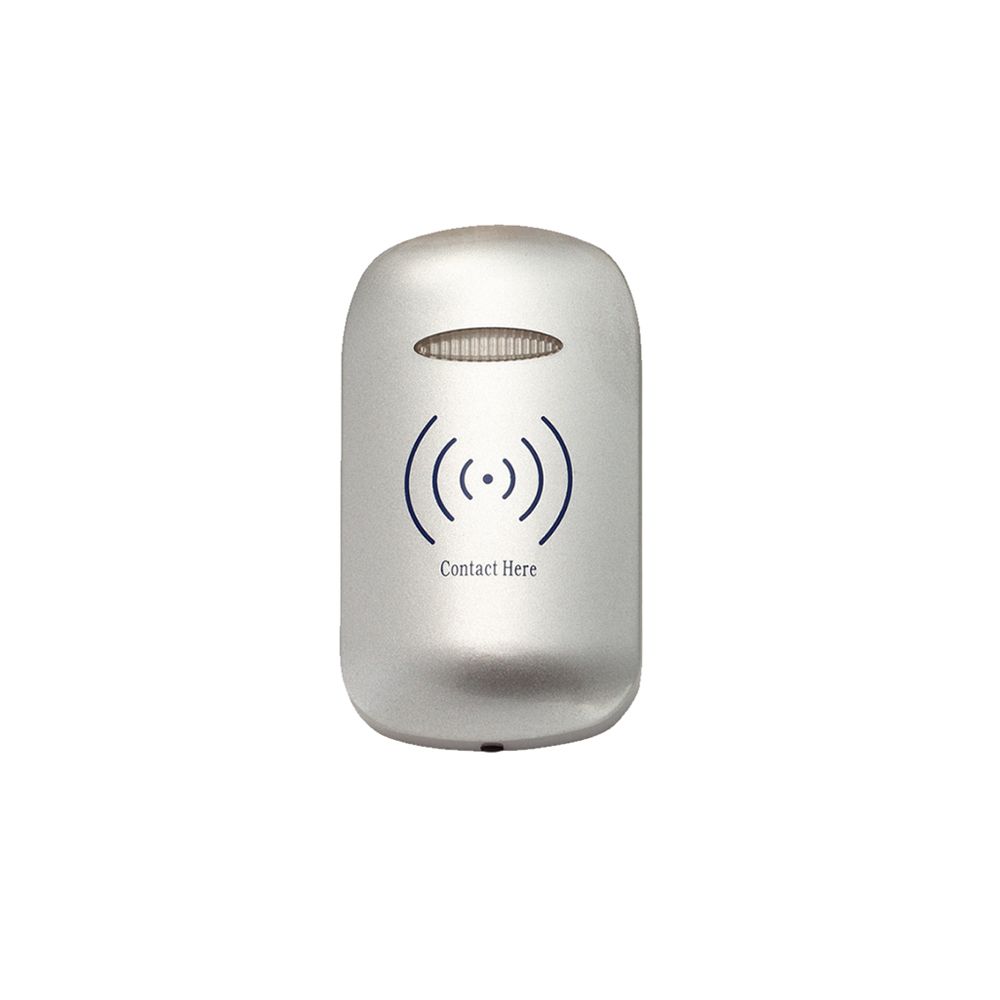

Product Description
Product details:
| Model | RY-CL801 |
| Material | Zinc Alloy |
| Lock body material | Plastic |
| Unlock | RFID Wristlet key |
| Working distance | 45mm Max |
| Power supply | DC 6V( AA1.5V*4) alkaline battery |
| Battery life | 10000 times/ under low voltage warning, it can open door 150 times at least |
| Working temperature | -25ºC~+65ºC |
| Working humidity | 5%~95%RH |
| Static power consumption | 3uA Max |
| Dynamic power consumption | About 250 mA |
| Low voltage alarm | 4.8V |
Main Features:
1. Complete RFID Cabinet Locking system (Independent or software control optional)
2. Powered by 4pcs AA alkaline batteries,When low power, it will alarm.
Free external power supply in case no power / power off!
3. Master card key to program new user key and help management! User key can delete if lost.
Product information
1. Automatic alarm if the door is not properly locked
2. Alarm if opened illicit (antipry)
3. Automatic alarm if low tension happened (≤4.0V)
4. Beautiful alarm effect
5. Flexibility movement transmits; prevent the outside force to destroy the internal structure of lock, safe and reliable.
6. I-button card with watch-type belt, easy to take, waterproof, and anticorrosion
Gate Thickness
1. 5730type lock door thickness: 6mm ≤t≤25mm
2. other type lock door thickness: t≥3mm
3. Interspaces between door panel and doorframe lateral suture:1.0mm≤L≤3mm
4. Door scroll (Hinge) can turn in agility and equality.

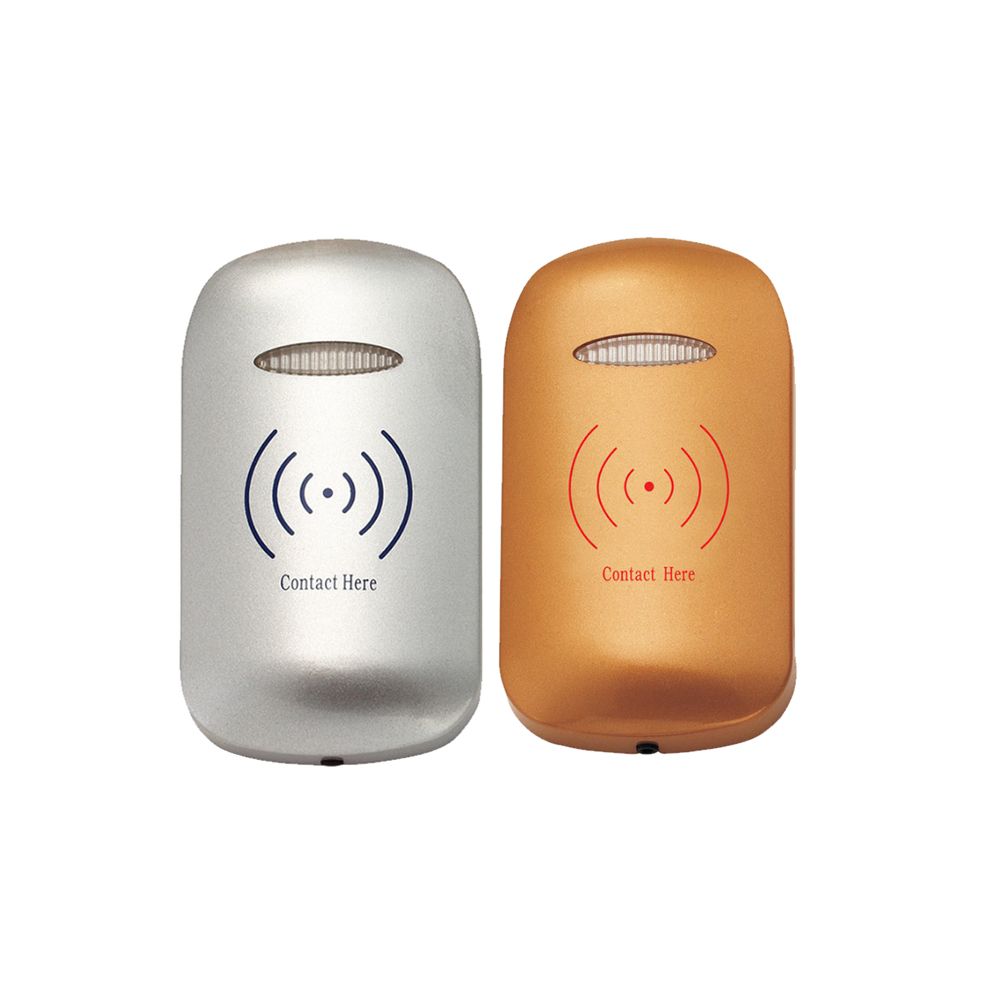

Pic for products:

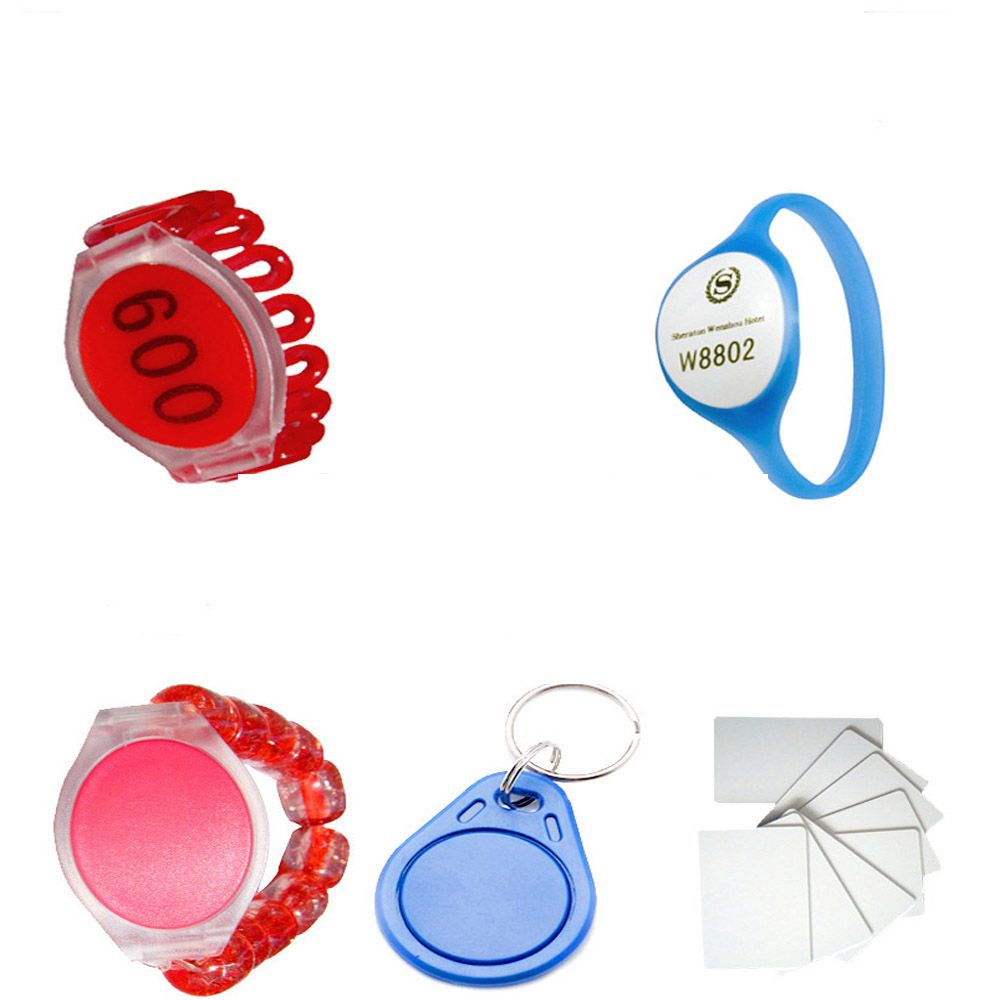

Keys Options:
Shipping/Payment/Delivery time:
Q.Master key available?
It can program master key to unlock all locks.For bulk order, we will send some free master key to you!
Q.Is custom logo on available?
We can print your logo And number on Wristband free! Print logo on logo need some payment
Q:How about the lead-time?
Samples in stock, bulk order, 3-5 working days depends on the quantity
Q:What kind of key frequency to be used for the lock?
It is 125KHz RFID key by default, 13.56Mhz for optional! When you order please let me know!
Q:How about the warranty?
1 year warranty, supply technical supports all life time
