| Prod Model: |
G7 |
| Certificate: |
Ce FCC RoHS |
| Resolution: |
2MP |
| Special Features: |
Low Illumination |
| Lens: |
3.6mm |
| Warranty: |
2 Years |
| Keyword: |
Import CCTV Camera CCTV |
| Keyword2: |
CCTV Camera |
| Keyword3: |
CCTV |
| Technology: |
Infrared |
| Type: |
CCTV Camera |
| Sensor: |
CMOS |
| HDMI Format: |
1080P |
| Certification: |
RoHS |
| Feature: |
Mini Size |
| Effective Distance: |
10-30m |
| Sensor Size: |
1/3 inch |
| Remote Control: |
Without Remote Control |
| Style: |
Pan |
| Horizontal Resolution: |
1080P |
| Kind: |
Fixed Focus Control |
Product Description

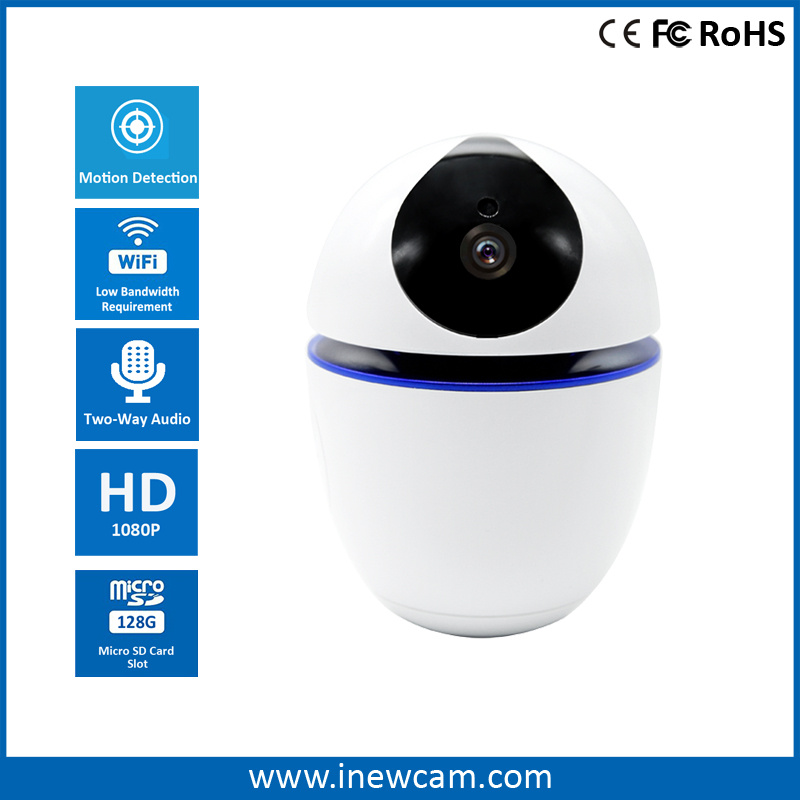

1080P Wireless Smart Home Security IP Camera for baby/pets | Video Compression | Operating System | H.264 Compression Format |
| video | Image Sensor | 2.0MP CMOS Sensor |
| Core Chipset | Hi3518Ev200 Chipset |
| Resolution | 1920*1080p, 1280*720p |
| Resolution Variable | 1080p(1920*1080),720p(1280*720),
VGA(640*360),QVGA(320*160) |
| Frame Rates | 1080P@15fps, 720P@25fps |
| Min Illumination | Color:1.5Lux;W/B:0Lux with IR LED on |
| IR Distance | IR cut filter auto switch on, night vision 10meters |
| CMOS Feature | Support AWB, AGC, BLC |
| Lens/Viewing Angel | >=110° |
| System Feature | Security | Administation for account and password |
| Mobile phone moniter | Support megapixelHD mobile phone moniter,
both for IOS and Android |
| Local Storage | Support external 128GB Micro SD card, 24 hours recording |
| Plug and Play | Top notch Cloudlink P2P technology, network penetration
up to 99%; Adapt to |
all kinds of complex network. Only 3 steps to install :
1. connecting power supply and network, |
| 2.Installing mobile phone software,3.Viewing CCTV images |
| Audio | Audio Compression | G.711A |
| Audio Input | 1CH built-in 38dB microphone |
| Audio Output | Built in speaker(8Ω1W) |
| PTZ Control | Pan&Tilt | Horizontal 340° |
| Recording Management | Recording Mode | Manual recording, timing recording and alarm recording |
| Video Storage | TF card(Max support 128G) |
| Network | Ethernet | 10Mbps/100Mbps RJ45 |
| Protocols | TCP/IP,HTTP,TCP,UDP,SMTP,DHCP,DNS,
DDNS,NTP,UPnP,P2P,etc |
| Wi-Fi | Wi-Fi802.11b/g/n 2.4G wireless network |
| Alarm | Motion Detection | Support |
| Alarm Action | Capture Photo and send emails |
| System Requirement | System Configuration | Android2.3 and above |
| General | Material | Cartoon robot/engineering plastics |
| Working Environment | Indoor |
| Power Supply | DC5V 2A, or with 2 rechargeable battery(3.7v 14500 ) |
| Working Temperature | (- 10 -50°C) |
| Working Humidity | 95%RH |
| Dimensions | 97mm*97mm*129mm(Length*Width*Height) |
| Weight | <500g |
| Package Dimensions | |
| Standard Accessory | Power adaptor;Stand;User guide |
| Intallation Method | Install by stand or flat on the table |
About us
Hunan Gaozhi Science and Technology Co., Limited is a High technology company with registered capital of 4 million USD, offers satisfactory ODM,OEM service in Security & Surveillance Field.
1. R&D Team
With 80 R&D engineers, key members are from Huawei. Gaozhi persists in technology innovation and invests about 10% of annual sales revenue in R&D. New products come out continuously with new feature& good performance.
2. Main products
AHD Camera and DVR, HVR, 720P, 960P,1080P...
POE IP Camera and NVR, 2MP, 4MP, 6MP,8MP...
WIFI IP Camera and NVR, 2MP,4MP...
NVR Kits, WIFI NVR Kits
Smart Home WIFI Cameras, 720P, 1080P... (key features: auto tracking, plug and play, motion detection...)
Smart camera kits and doorbell...
3. Primary Advantage
* Excellent & stable quality approved by famous distributor
* Big capital-supported by government
* Strong R&D team, customized service
4. Delivery time
Sample order: 1-3 days
Mass production: 2-4 weeks
5. Certifications
Comes with CE, ROHS, FCC and RED certification.
6. APP & Software
PC software is SmartClient and phone APP is StreamView,
they are developed by ourself and free, welcome to download it.
7. Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
8. Warranty
2 years free repair warranty. For the confirmed defective products, will send free replacement in the next shipment.
9. OEM/ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package.
10. Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m-20m
C. 6mm lens : 30m-50 m
(We have 2.8-12 mm auto-Focus camera for long distance & special condition.)
Gaozhi Technology is a high-tech innovative company with strong government support. It aims to be a trusted provider of full range of security products and smart home solutions in global market.
With 80 experienced R&D engineers in hardware and software, team members of our R&D department are all from top universities in China. Taking fulll of outstanding tech advantages from the experienced universities, we have various security product lines covering from engineering, home to outlets. In the smart home filed, we launched the unique "Security Shield" with high protected-privacy.
Gaozhi persists in technology innovation and much competitive in ODM/OEM service with very low MOQ and one-stop easy of mind service. Top famous brand appointed us as long-term OEM factory due to the very stable system & reliable quality. All of our products are compliant with CE, FCC and RoHS standards.
We provide a full range of 2MP/4MP/6MP POE IP cameras, 1080P WiFi Kits, POE NVR and DVR. Also we are launching unique new products, like smart camera kits and doorbell to change people's life. It enable a deeper connection with the world and the loved ones.
Vision
Create a smarter and safer world to make life easier by our innovative solutions
Our products will be an essential part of our life in the near future.
