| Prod Model: |
DL-6E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Media: |
Water ,Steam ,Clean Air |
| Working Type: |
2/2 Direct Action |
| Pattern: |
Normally Close |
| Orifice: |
2.5-2.7mm |
| Connection Ports: |
G1/4 |
| Working Pressure: |
0-25bar |
| Max Pressure: |
30bar |
| Working Temp.: |
0-180 Degree |
| Rated Voltage: |
DC/AC 24 - 240V |
| Protection Class: |
IP65 |
| Connection Form: |
Thread |
| Type: |
Direct Acting |
| Valve Structure: |
Direct-Acting Piston Structure |
| Application: |
Water Industrial Usage |
| Power Supply: |
AC/DC |
Product Description

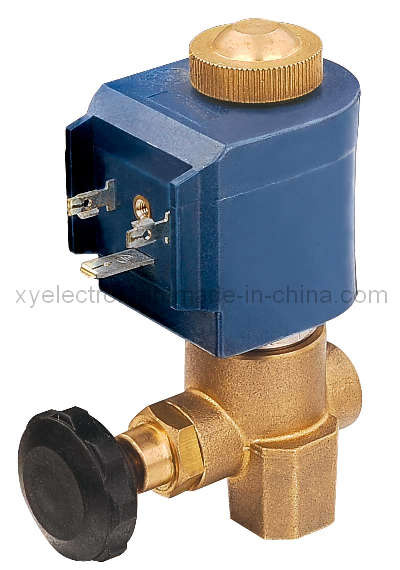

Solenoid Steam Valve for Ironing Machine (DL-6E)Installed on the Ironing equipments independent;
Fully made of heat resistant H class material;
Steam flow rate can be adjustable,easy to operate;
Electrical parts good water-proof;
Insert pipe,female-male thread,adjustable and angle adjustable type for choose;
Parameters| Model | DL-6E |
| Media | Water/Steam/Clean Air |
| Working type | 2/2 Direct action |
| Pattern | Normally close |
| Orifice | 2.5mm |
| Connection port | G1/4" |
| Working pressure | 0-2.5Mpa |
| Max.pressure | 3Mpa |
| Working temp. | 0.1ºC~180ºC |
| Related voltage | 24~240V DC/AC +/-10% |
| Power | AC28VA/DC20W |
| Insulation class | H Class |
| Protection class | IP65 |
| Valve body Material Brass | Brass |
| Seal material | PTFE/FKM |

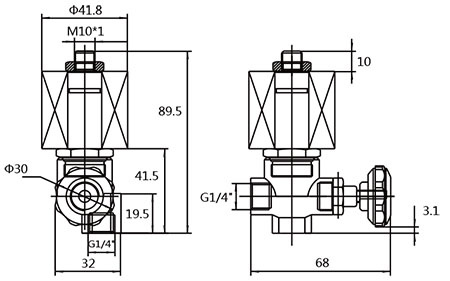

Drawing
Xingyu Electron (Ningbo) Co Ltd is one of the key enterprises in Chinese pneumatic and valve industry,We specialize in development,manufacturing,marketing and service of pneumatic actuator,angle seat valves,solenoid valves,solenoid coils and DIN connectors;
"Not to be the biggest,but to be the strongest" is our business goal and ideal,let us make best efforts for a better future.
XingyuRfs is one of the leading manufacturers of solenoids and solenoid valves in China. XingyuRfs is a private limited Company, it was founded in 1991, after 26years' hard working, now XingyuRfs has grown into a group, business include: Solenoids, solenoid valves, pneumatic actuators, angle seat valves, sensors and so on. XingyuRfs solenoids, valves, actuators, sensors are widely used in automotive, automation, textile industry, pneumatic, hydraulic, air and water treatment systems and so on.
XingyuRfs is a ISO9001: 2008 & TS16949 approved company. Not only advanced equipments, there are advanced management & experienced R&D team in XingyuRfs. These ensure the high and stable quality of the products.

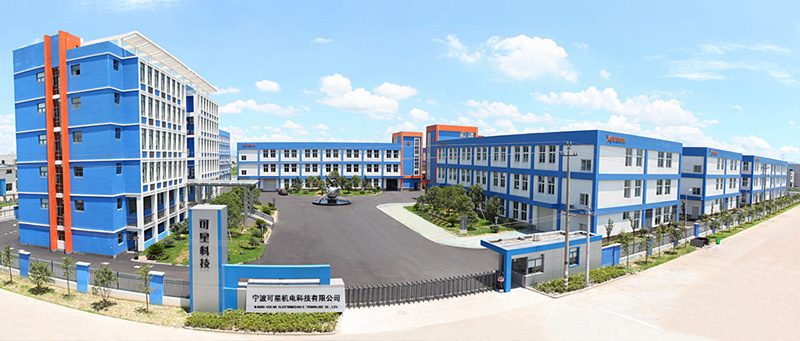

XingyuRfs is located in Fenghua district, Ningbo city, China. XingyuRfs has 37000 square meter workshops and about 350 employees. In 2016, XingyuRfs annual output value is about 23 million US dollars, half of exports and half of domestic sales. More and more famous brands come to cooperate with us, for example: Festo, IMI, ASCO and so on.
Win-win is our aim, let's make progress together.
