| Prod Model: |
1-20 mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Preda |
| Material: |
Carbide |
| Diameter: |
1-20mm |
| Overall Length: |
50-150mm |
| Type: |
Customized Spade Drills |
| Precision: |
High Precision |
| Machine Type: |
CNC Milling Machine |
| Flutes: |
4f |
| Hra: |
91.2-93.8 |
| Coating: |
Uncoated or Altin, Tian, Tialn |
| Process Usage: |
CNC Non-Conventional Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description
Product Description
Specifications
1.Solid cabride Customized Spade drill tools uncoated
2.HRC:50-70
3.High efficiency, long-lived
4.Precision drilling
5.Shank can process upon customer-made

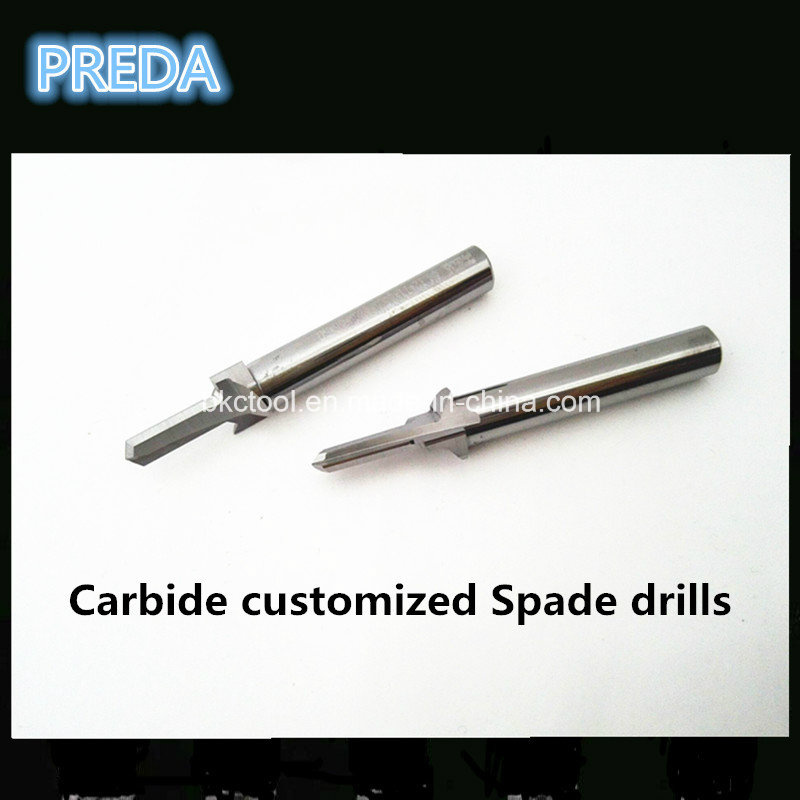

Solid cabride Customized Spade drill tools uncoated
1».Speciafications
Chemical Composition: 6%-12%Co-WC
Physical and Machinal properties: Density: 14.45-14.90g/cm3 Hardness: 92-93 HRA Flexural Strength: 2500-3400N/mm2
Organizational Structure: WC mean grain size: 0.6-1.0um
Corresponds to International Standards: K10, K05-K15, K20-K30, K20-K40
Suitable for: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steel, plastic materials, fiberglass, carbon fiber and other non-metallic. It can be used the materials HRC 50-70, high steel, high precision, long-lived.
2».Quality assure
All our products not only using the well-known raw materials manufacturing from home and aboard, but also we have a series of production and processing equipments and precision testing equipment to guaranteed quality.
1.Raw Materials
Overseas
GUHRING material imported from Germany.
Kennametal material imported from America.
TAEGUTEC material imported from Korea.
Domestic
The domestic material we purchased from Zhuzhou, Nanchang and Zigong the well-known brands. CB material imported fromTaiwan.
2.Processing Equipment
WALTER grinding machine imported from Germany.
ANCA grinding machine imported from Australia.
Specifications |
| Z(Teeth) | d1(mm) | d(mm) | I(mm) | I1(mm) | I2(mm) |
| 4.0 | 4.0 | 4 | 75 | 20 | 30 |
| 4.0 | 4.5 | 5 | 75 | 20 | 30 |
| 6.0 | 5.0 | 5 | 100 | 30 | 40 |
| 6.0 | 5.5 | 6 | 100 | 30 | 40 |
| 6.0 | 6.0 | 6 | 100 | 30 | 40 |
| 6.0 | 6.5 | 8 | 100 | 30 | 40 |
| 6.0 | 7.0 | 8 | 100 | 30 | 40 |
| 6.0 | 8.0 | 8 | 100 | 30 | 40 |
| 6.0 | 9.0 | 10 | 100 | 30 | 40 |
| 6.0 | 10.0 | 10 | 100 | 30 | 40 |
| 6.0 | 11.0 | 12 | 150 | 50 | 50 |
| 6.0 | 12.0 | 12 | 150 | 50 | 50 |
| 6.0 | 13.0 | 14 | 150 | 50 | 50 |
| 8.0 | 14.0 | 14 | 150 | 50 | 50 |
| 8.0 | 15.0 | 16 | 150 | 50 | 50 |
| 8.0 | 16.0 | 16 | 150 | 50 | 50 |
| 8.0 | 17.0 | 18 | 150 | 50 | 50 |
| 8.0 | 18.0 | 18 | 200 | 60 | 60 |
| 8.0 | 19.0 | 20 | 200 | 60 | 60 |
| 8.0 | 20.0 | 20 | 200 | 60 | 60 |
