Solid Carbide Spiral Point Round Die Machine Taps and Dies with Internal Swarf Passage

Prod Model:	S1602-1605
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	1-25mm
Type:	Taps and Dies
Overall Length:	35-150mm
Usage:	Metal
Precision:	High Precision
Machine Type:	Motorize
Flutes:	2/3/4/6/8 Flutes
Suitable For:	Aliminum, Steel, Stainless Steel.
Type Of Tap:	Machine Tap with Internal Swarf Passage
Type Of Die:	Square Die
Material:	Tungsten Steel
Standard:	Metric
Application:	Manual
Pieces:	1

Product Description

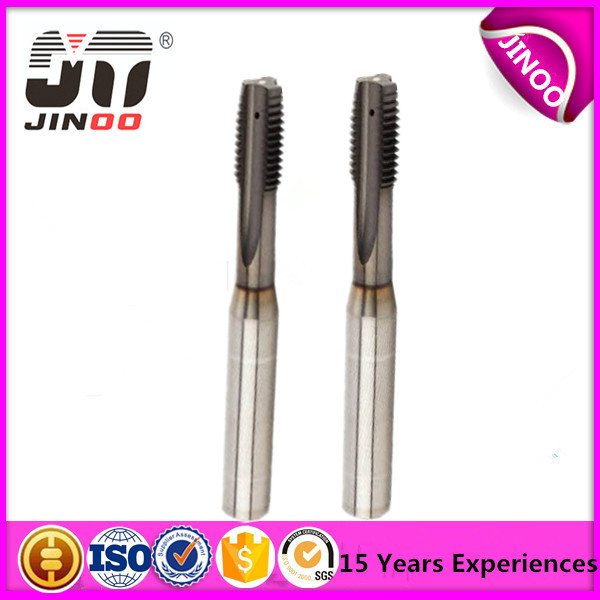

Solid carbide spiral point round die machine taps and dies with internal swarf passage



1. Our advantages:
1. Solid carbide lasting long life in hardened steels, Grain size carbide, high toughness, high -wearing feature.
2. Reduce the rudding coefficient & save the processing time, Specializing in high speed cutting of CNC milling machine.
3. Wide range of application: Suitable for copper, castiron, carbon steel, stainlees steel, Non-ferrous material and Heat-treated steel processing.
4. The shank and helix angle can be customized according to customers' requirements.

2. Speciafication & Preformance:
1. Chemical composition: 10%-12%Co-WC
2. Physical and machinal properties:
Density: 14.10-14.45g/cm3
Hardness: 91.5-92.5HRA
Flexaral strength: 3500-4000N/mm2
3. Organizational structure: WC mean Grain size: 0.5-0.6 um

4. ISO: K20-K40

3. Quality Assure

1. Best materials:

Our materials are the oriental materials at China and World.
China:

Zhuzhou, Nanchang, Zi gong, CB of Taiwan.
World:
Teagutec of Korea
Kennametal of America.
Guhring of Germany

2. The processing equipments:
1. Walter CNC machine from Germany

2. ANVA CNC machine from Australia

3. Strict Test:
Strict test is carried out on every procceduce during the whole course of the production. Each product inspected by precision inspected machine.

Advanced equipments:
1. Guhring detecting instrument from Germany.
2. Mitutoyo detecting instrument from Japan.
3. PARLEC tool presetter from America.
4. Passed ISO 9001: 2000 the quality authentication.



5. PACKING
1. One piece in a platic pipe. 10 pieces in a group.
2. Use the air bubble paper to encase the plastic pipe
3. Put the goods encased with air bubble paper in the carton

4. Other packing will be accpet accord your needs.


6. Delivery
According to the quantity. We are located in Changzhou city of Jiansu China. 5 km away formChangzhou Airport and 200 km away form Shanghai. The transportation is very convenient.

Solid carbide spiral point round die machine taps and dies with internal swarf passage



7. About us
We are the professional manufacturer of solid carbide tools. We have our own brand-JINOO. Our high quality and good service get many customer's high comments. All our staffs try our best to serve customers with high quality products and excellent after-sales service. Our purpose is that all the quality control and satisfying every customer.

By the way, we also supply non-standard end mills. If you are interested in our products, please kindly send the drawings, specification or detail size to us. We will try our best to offer you best services.


If you are interested in our products, please contact me at any time. Thanks!

With Standard Thread (Coarse)
	Dc	L	l1	l2	Ds	K	lk
M1x0.25	1	38.5	5.5	10	2.5	2	4
M1.1x0.25	1.1	38.5	5.5	10	2.5	2	4
M1.2x0.25	1.2	38.5	5.5	10	2.5	2	4
M1.4x0.3	1.4	40	7	12	2.5	2	4
M1.6x0.35	1.6	41	8	13	2.5	2	4
M1.8x0.35	1.8	41	8	13	2.5	2	4
M2x0.4	2	41	8	13.5	2.5	2	4
M2.2x0.45	2.2	44.5	9.5	15.5	2.8	2.24	5
M2.5x0.45	2.5	44.5	9.5	15.5	2.8	2.24	5
With Standard Thread (Fine)
	Dc	L	l1	l2	Ds	K	lk
M1x0.2	1	38.5	5.5	10	2.5	2	4
M1.1x0.2	1.1	38.5	5.5	10	2.5	2	4
M1.2x0.2	1.2	38.5	5.5	10	2.5	2	4
M1.4x0.2	1.4	40	7	12	2.5	2	4
M1.6x0.2	1.6	41	8	13	2.5	2	4
M1.8x0.2	1.8	41	8	13	2.5	2	4
M2x0.25	2	41	8	13.5	2.5	2	4
M2.2x0.25	2.2	44.5	9.5	15.5	2.8	2.24	5
M2.5x0.35	2.5	44.5	9.5	15.5	2.8	2.24	5
With Standard Thread (Coarse)
	Dc	L	l	Ds	K	lk
M3x0.5	3	48	11	2.24	1.8	4
M3.5x0.6	3.5	50	13	2.5	2	4
M4x0.7	4	53	13	3.15	2.5	5
M4.5x0.75	4.5	53	13	3.55	2.8	5
M5x0.8	5	58	16	4	3.15	6
M6x1	6	66	19	4.5	3.55	6
M7x1	7	66	19	5.6	4.5	7
M8x1.25	8	72	22	6.3	5	8
M9x1.25	9	72	22	7.1	5.6	8
M10x1.5	10	80	24	8	6.3	9
M11x1.5	11	85	25	8	6.3	9
M12x1.75	12	89	29	9	7.1	10
M14x2	14	95	30	11.2	9	12
M16x2	16	102	32	12.5	10	13
M18x2.5	18	112	37	14	11.2	14
M20x2.5	20	112	37	14	11.2	14
M22x2.5	22	118	38	16	12.5	16
M24x3	24	130	45	18	14	18
M27x3	27	135	45	20	16	20
M30x3.5	30	138	48	20	16	20
M33x3.5	33	151	51	22.4	18	22
M36x4	36	162	57	25	20	24
M39x4	39	170	60	28	22.4	26
M42x4.5	42	170	60	28	22.4	26
M45x4.5	45	187	67	31.5	25	28
M48x5	48	187	67	31.5	25	28
M52x5	52	200	70	35.5	28	31
M56x5.5	56	200	70	35.5	28	31
M60x5.5	60	221	76	40	31.5	34
M64x6	64	224	79	40	31.5	34
M68x6	68	234	79	45	35.5	38
With Standard Thread (Fine)
	Dc	L	l1	Ds	K	lk
M3x0.35	3	48	11	2.24	1.8	4
M3.5x0.35	3.5	50	13	2.5	2	4
M4x0.5	4	53	13	3.15	2.5	5
M4.5x0.5	4.5	53	13	3.55	2.8	5
M5x0.5	5	58	16	4	3.15	6
M5.5x0.5	5.5	62	17	4	3.15	6
M6x0.75	6	66	19	4.5	3.55	6
M7x0.75	7	66	19	5.6	4.5	7
M8x1	8	72	22	6.3	5	8
M9x1	9	72	22	7.1	5.6	8
M10x1.25	10	80	24	8	6.3	9
M10x1	10	80	24	8	6.3	9
M12x1.5	12	89	29	9	7.1	10
M12x1.25	12	89	29	9	7.1	10
M14x1.5	14	95	30	11.2	9	12
M14x1.25	14	95	30	11.2	9	12
M15x1.5	15	95	30	11.2	9	12
M16x1.5	16	102	32	12.5	10	13
M17x1.5	17	102	32	12.5	10	13
M18x2	18	112	37	14	11.2	14
M18x1.5	18	112	37	14	11.2	14
M20x2	20	112	37	14	11.2	14
M20x1.5	20	112	37	14	11.2	14
M22x2	22	118	38	16	12.5	16
M22x1.5	22	118	38	16	12.5	16
M24x2	24	130	45	18	14	18
M24x1.5	24	130	45	18	14	18
M25x2	25	130	45	18	14	18
M25x1.5	25	130	45	18	14	18
M27x2	27	127	37	20	16	20
M27x1.5	27	127	37	20	16	20
M28x2	28	127	37	20	16	20
M28x1.5	28	127	37	20	16	20
M30x3	30	138	48	20	16	20
M30x2	30	127	37	20	16	20
M30x1.5	30	127	37	20	16	20
M32x2	32	137	37	22.4	18	22
M32x1.5	32	137	37	22.4	18	22
M33x3	33	151	51	22.4	18	22
M33x2	33	137	37	22.4	18	22
M33x1.5	33	137	37	22.4	18	22
M35x1.5	35	144	39	25	20	24
M36x3	36	162	57	25	20	24
M36x2	36	144	39	25	20	24
M36x1.5	36	144	39	25	20	24
M39x3	39	170	60	28	22.4	26
M39x2	39	149	39	28	22.4	26
M39x1.5	39	149	39	28	22.4	26
M40x3	40	170	60	28	22.4	26
M40x2	40	149	39	28	22.4	26
M40x1.5	40	149	39	28	22.4	26
M42x4	42	170	60	28	22.4	26
M42x3	42	170	60	28	22.4	26
M42x2	42	149	39	28	22.4	26
M42x1.5	42	149	39	28	22.4	26
M45x4	45	187	67	31.5	25	28
M45x3	45	187	67	31.5	25	28
M45x2	45	165	45	31.5	25	28
M45x1.5	45	165	45	31.5	25	28
M48x4	48	187	67	31.5	25	28
M48x3	48	187	67	31.5	25	28
M48x2	48	165	45	31.5	25	28
M48x1.5	48	165	45	31.5	25	28
M50x3	50	187	67	31.5	25	28
M50x2	50	165	45	31.5	25	28
M50x1.5	50	165	45	31.5	25	28
M52x4	52	200	70	35.5	28	31
M52x3	52	200	70	35.5	28	31
M52x2	52	175	45	35.5	28	31
M52x1.5	52	175	45	35.5	28	31
M55x4	55	200	70	35.5	28	31
M55x3	55	200	70	35.5	28	31
M55x2	55	175	45	35.5	28	31
M55x1.5	55	175	45	35.5	28	31
M56x4	56	200	70	35.5	28	31
M56x3	56	200	70	35.5	28	31
M56x2	56	175	45	35.5	28	31
M56x1.5	56	175	45	35.5	28	31
M70x6	70	234	79	45	35.5	38
M72x6	72	234	79	45	35.5	38
M76x6	76	258	83	50	40	42
M80x6	80	258	83	50	40	42
M85x6	85	261	86	50	40	42
M90x6	90	261	86	50	40	42
M95x6	95	279	89	56	45	46
M100x6	100	279	89	56	45	46
