| Prod Model: |
X-JF16821-0390 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Type: |
Electric |
| Condition: |
New |
| Trial Order: |
Accept |
| Size: |
as Per Your Requests |
| HRC: |
45-60 |
| Composition: |
89% Carbide, 1%Co and 10% Others |
| Free Samples: |
Yes |
| Material: |
Carbide Alloy |
Product Description

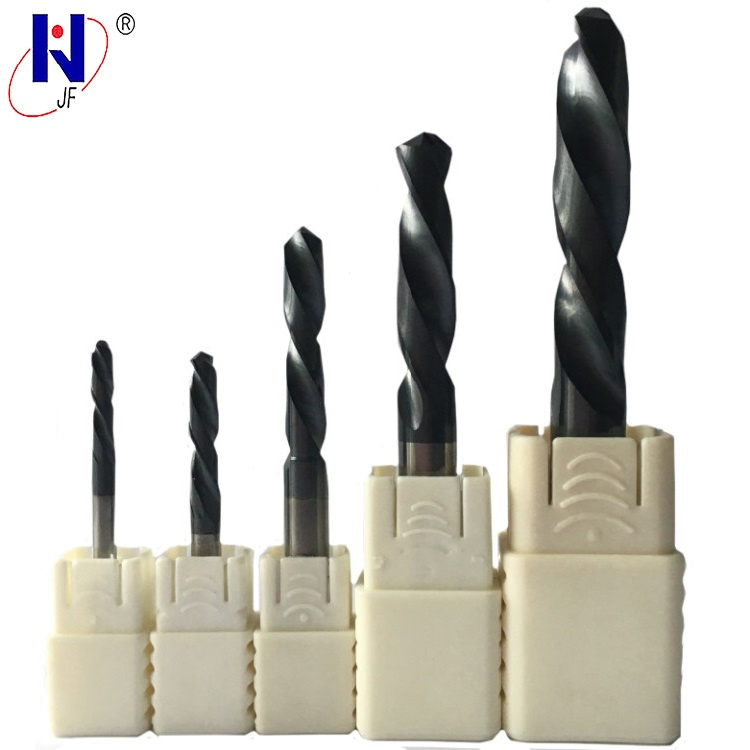

Solid Carbide Twist Drill HRC45 with TiAlN Coating
1. Specifications
- Tungsten Carbide of TIANT/TIN/TICN
- HRC45/55/60/65
- Working material for steel and high speeding cutting;
- Any your drawings design are acceptable;
2. Raw Materials
- SANDVIK of Sweden;
- Teagutec of Korean;
- Kennametal of American;
- Guhring of Germany;
- YG10X of Zhuzhou China;
- WC25F of Taiwan;
3. Our Workshop and Advanced Equipments
- Walter CNC machine from Germany;
- ANCA CNC machine from Australia;
- Guhring detecting instrument from Germany;
- MICHEAL DECHAL CNC Machine from Germany;
4. Our advantages
- Our carbide end mills are made by 5 Axi grainding machine with high toughness & high wearing precision;
- Our carbide end mills have long usage life lasting in hardened steels,
- Every product will inspected by Zoller Machine;
- Special CNC solid tools with high quality/ometitive price/good service;
5. Packages
(1)One plastic pipe pack one piece, 10 pieces per group.
(2)Use the air bubble paper to encase the plastic paper.
(3)White parts for protect the flute of cutters.
(4)Laser brand and demensions on the body of cutters, print labels.
(5)Put the goods encased with air bubble paper into the carton.
(6)Other packing will be accepted according to your needs.
6.Delivery Time
In general,within 6-12 days after received your deposits.
According to the quantity. We are located in Changzhou city of Jiansu China.5 km away formChangzhou Airport and 200 km away form Shanghai. The transportation is very convenient.
7.Applied Fields
Used for rod mill such as cement plant, electric power plant, mine, quartz sand plant, silica sand plant, sand aerated industry, coal chemical industry, gas concrete plant, etc.
8.Characteristics
A) Uniform hardness
B) No rupture
C) Even wearing
D) No bending
Note:
1. All the end mills, drills and reamers should be used depending on there workpieces, then it may be play the biggest roles.
2. Cutting tools are sharp, when usage it please careful.
code | diameter(mm) | cutting length | shank diameter | total length |
| Z024-1 | 0.5 | 6 | 0.5 | 30 |
| Z024-2 | 0.8 | 8 | 0.8 | 30 |
| Z024-3 | 1 | 10 | 1 | 30 |
| Z024-4 | 1.2 | 12 | 1.2 | 35 |
| Z024-5 | 1.5 | 16 | 1.5 | 35 |
| Z024-6 | 1.8 | 16 | 1.8 | 40 |
| Z024-7 | 2 | 18 | 2 | 40 |
| Z024-8 | 2.5 | 20 | 2.5 | 48 |
| Z024-9 | 3 | 25 | 3 | 50 |
| Z024-10 | 3.5 | 14 | 3.5 | 55 |
| Z024-11 | 4 | 16 | 4 | 55 |
| Z024-12 | 4.5 | 18 | 4.5 | 55 |
| Z024-13 | 5 | 20 | 5 | 66 |
| Z024-14 | 5.5 | 22 | 5.5 | 66 |
| Z024-15 | 6 | 24 | 6 | 66 |
| Z024-16 | 6.5 | 26 | 6.5 | 66 |
| Z024-17 | 7 | 28 | 7 | 66 |
| Z024-18 | 7.5 | 30 | 7.5 | 77 |
| Z024-19 | 8 | 32 | 8 | 77 |
| Z024-20 | 8.5 | 34 | 8.5 | 77 |
| Z024-21 | 9 | 36 | 9 | 77 |
| Z024-22 | 9.5 | 38 | 9.5 | 77 |
| Z024-23 | 10 | 40 | 10 | 88 |
| Z024-24 | 10.5 | 42 | 10.5 | 88 |
| Z024-25 | 11 | 44 | 11 | 88 |
| Z024-26 | 11.5 | 46 | 11.5 | 88 |
| Z024-27 | 12 | 48 | 12 | 88 |
| Z024-28 | 12.5 | 50 | 12.5 | 95 |
| Z024-29 | 13 | 52 | 13 | 95 |
| Z024-30 | 13.5 | 54 | 13.5 | 95 |
| Z024-31 | 14 | 56 | 14 | 95 |
| Z024-32 | 14.5 | 58 | 14.5 | 95 |
| Z024-33 | 15 | 60 | 15 | 105 |
| Z024-34 | 15.5 | 62 | 15.5 | 105 |
| Z024-35 | 16 | 64 | 16 | 105 |
| Z024-36 | 16.5 | 66 | 16.5 | 105 |
| Z024-37 | 17 | 68 | 17 | 105 |
| Z024-38 | 17.5 | 70 | 17.5 | 115 |
| Z024-39 | 18 | 72 | 18 | 115 |
| Z024-40 | 18.5 | 74 | 18.5 | 115 |
| Z024-41 | 19 | 76 | 19 | 115 |
| Z024-42 | 19.5 | 78 | 19.5 | 115 |
| Z024-43 | 20 | 80 | 20 | 120 |
