| Prod Model: |
MJ164 |
| Name: |
Single Blade Rip Saw |
| Brand: |
Hicas |
| Voltage: |
380V, 3phase, 50Hz |
| Application: |
Cutting Wood |
| Key Word: |
Rip Saw |
| Dimension: |
2300*1800*1600 mm |
| Power: |
12.5kw |
| Weight: |
1740kg |
| Warranty: |
1 Year |
| Package: |
Plywood Box |
| Type: |
Rip Saw |
| Layout: |
Vertical |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description

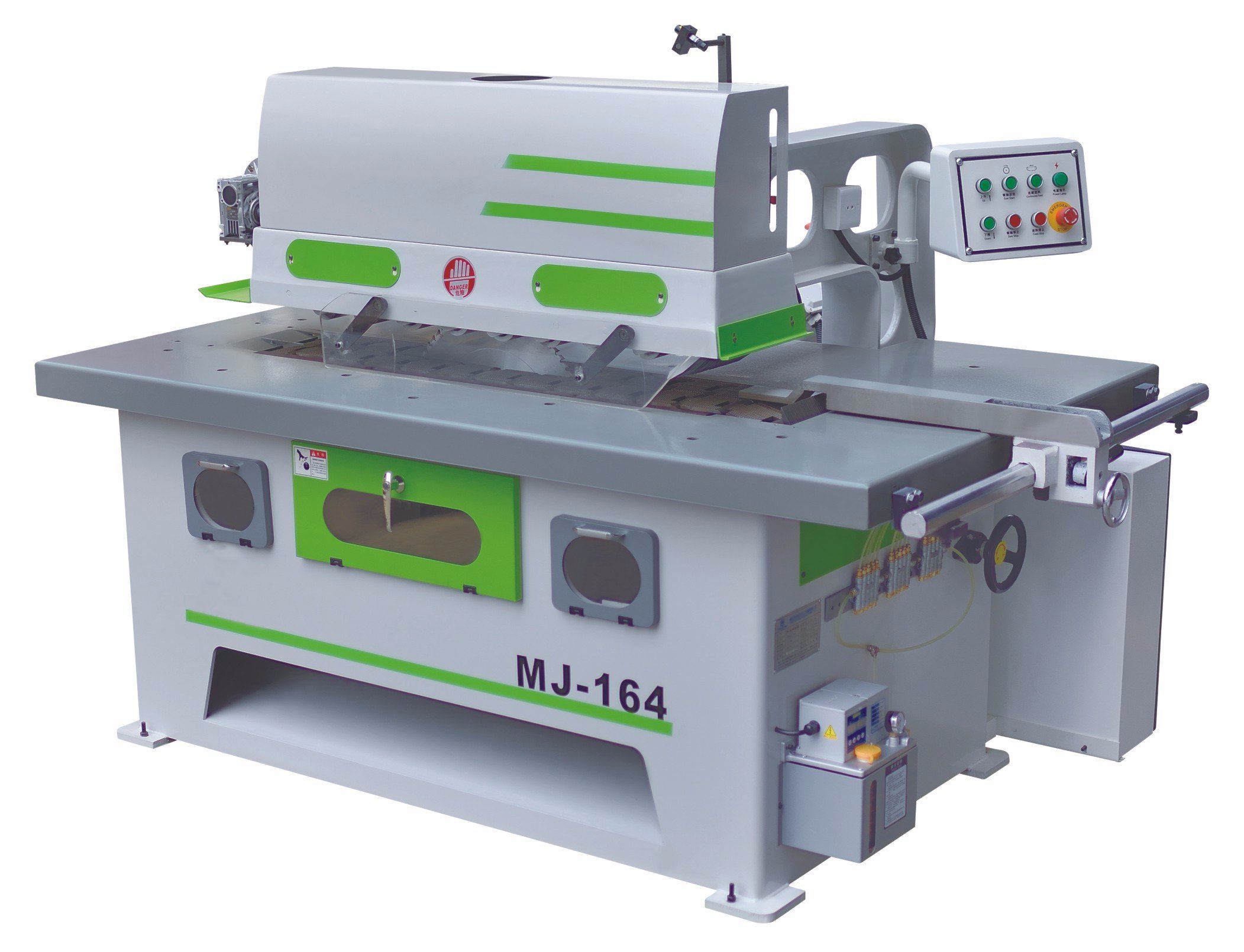

Rip saw line cutting machine and edge trimming
main features:
1.It's widely used to cut thin wood chips in high precision.
2.Whole cast iron machine frame keeps the working stable.
3.Top control panel with digital indicator, render the operation easy & ensure the working accuracy.
4.With sliding rip fence, so the users could manage and adjust the working width as the processing requirement.
| Model | MJ-164 |
| Saw blade diameter | 455-400mm |
| Max working thickness | 110mm |
| Sawing width | 660mm |
| Spindle speed | 3000r/min |
| Spindle diameter | 50.8mm |
| Feeding speed | 11-26m/min |
| Feeding power | 1.5kw |
| Main motor power | 11kw |
| Total power | 12.5kw |
| Working table size | 2000*1160mm |
| Overall dimensions | 2300*1800*1600 |
| Weight | 1740kg |
FAQ
1) Is this machine have laser line? Yes, Standard machine include Infrared alignment device.
2) This machine can change different power volt? Yes, Standard volt is 380V 3 phase 50HZ, if you need different power volt, we can customized special volt motor, but it is different price.
3) what's the layout of the saw blade? This type is single blade and the blade shaft is below the worktable.
