Special Double Head Bolt Machine and Tapping Thread Double End Screw
| Price: |
US $ 0.01-1/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100000/Piece |
| Pay Type: |
T/T |
| Prod Model: |
double head bolt |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Carbon Steel |
| Connection: |
Common Bolt |
| Head Style: |
Round |
| Grade: |
12.9 |
| Type: |
Double Head |
| Standard: |
Non Standard Bolts |
| Application: |
Automotive |
| Finish: |
Plain |
Product Description

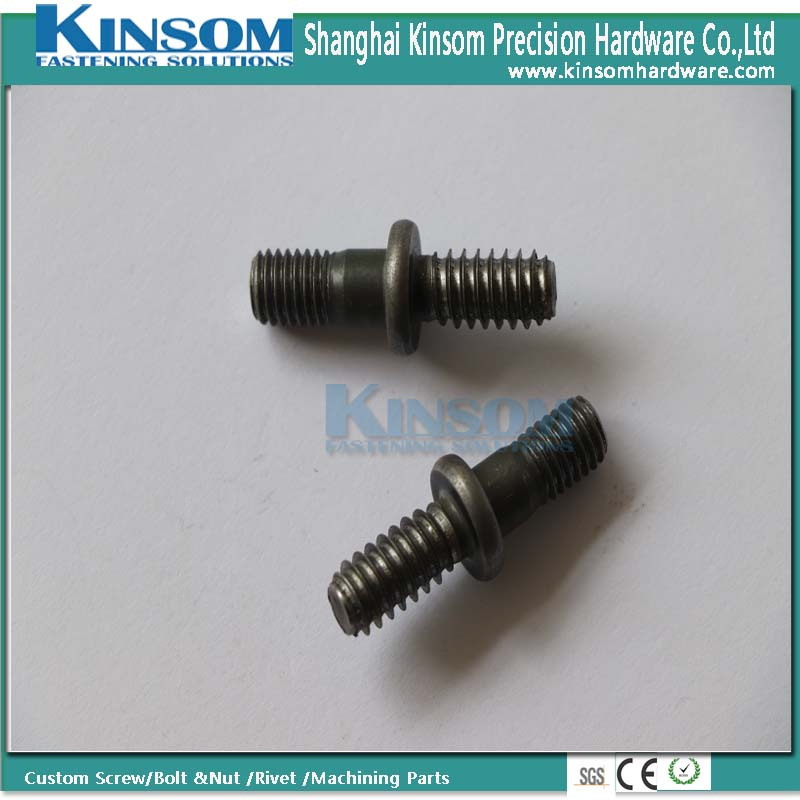

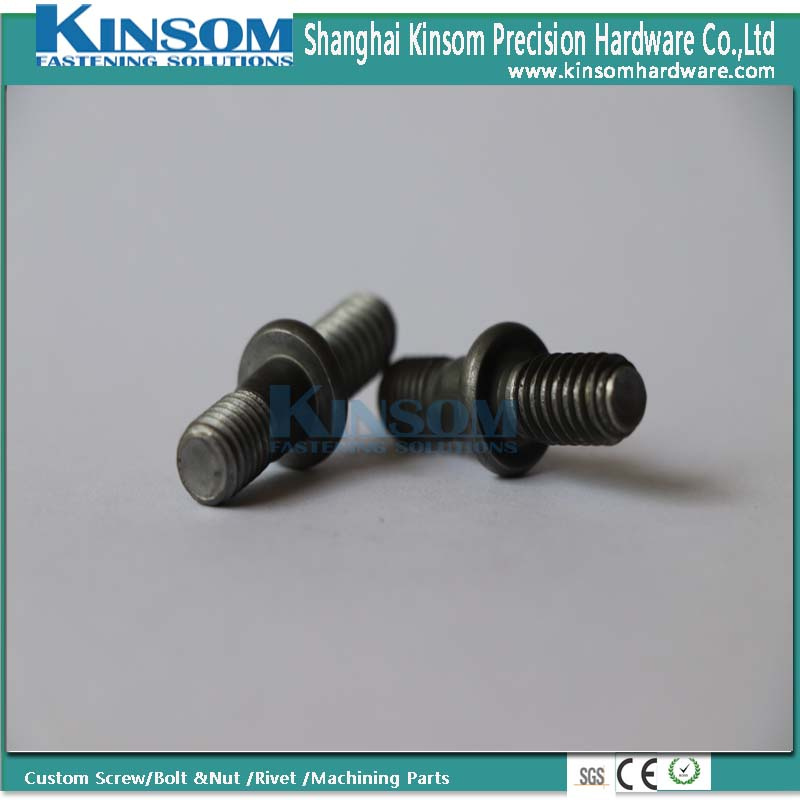

Items double end screw /bolt used in automotive industrySpecification:- Carbon steel AISI 10B21
- Non standard screws auto parts
- Cold forging process for manufacturing
- Size :M6*30
- Thread type: double thread for machine & tapping screw
- Finish: Dacromet /Phosphated/ aluminum organic type S439 to ford specification
- Color : Grey
- Marked: KS or by your needs
- Heat treatment: Class 8.8 as per ISO 898-1
- Hydrogen embrittlement
- Carburizing depth:0.08MM Min
- SST: 400hrs without red rust
- Torque breakage TORX male E4
- Industry: building construction ,wood and others
- Size and Material can be customized by your specific needs.
What we can do: All the following details can be customized by your specific need. OEM service is welcomed. |
| Product Name | double end screw /bolt used in automotive industry |
| Material | Stainless steel 304 `316 ,carton steel 45# 22A 10B21,alloy steel,aluminum5052 6063F22,brass ,Titanium/Ti Alloy And so on |
| Hardness | 4.8-12.9 grade |
| Type of Shank | Full thread/ parital thread |
| Drivers | slotted,six-lobe,pozi driver,square,triangle,8 point,phillips |
| Type of Head | flat,oval,truss,PF.round ,button,pan(JIS,ANSI),fillister,square |
| Surface Treatment | Zinc,nickel,gold brass,black/black oxide etc |
| Shank Diameter | M1.7-M30 customized by your need |
| Overall Length | 6-120MM |
| Salt Spray Test | 24hr-1000hr |
| Head Diameter | according to the size |
| Application | The product is used for fixing thing in one place,it is also apply to material transmission, large drill bit. |
| Package Description | 25kg/carton;Can Pallet.Or according to customers' requests. |
Product:
Shanghai Kinsom Precision Hardware Co., Ltd Offering a large variety of fastener, screw bolt and nut, rivets special types, we can manufacture numerous styles of custom fasteners based upon client specifications. And, we can also manufacture products to numerous custom grades.
Serving a wide array of industries from machine and curtain wall to construction and electronics, our custom cold forging fasteners can be used for a varieties of applications, including bridges, building, Air condition, washing machine, tools and automotive industry.
Offering the capability to work with a large number of materials such as aluminum carbon steel brass and stainless steel, we can heat treat and finish treat our custom fasteners to match our customer's unique requirements.
Providing multiple finishing options ranging from nickel, brass, and zinc plated to chrome, color coated, and galvanized, our fasteners can be built to meet either JIS ISO ANSI DIN or GB standards. Attaining high industry standards, welcome to click our website or contact with us to learn more about our premium customizable fasteners.
