| Price: | US $ 1/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | 22210 22210K |
|---|---|
| Precision Rating: | P6 P5 P4 P2 |
| Seals Type: | Open |
| OEM Service: | Accept |
| Clearance: | C2,C3,C4,C5,C6 |
| Retainer Design: | Ca/Cc/Cak/E/MB/K30 |
| Vibration Level Codes: | V4, V3, V2, V1 |
| Noise Level: | Z1,Z2,Z3,Z4 |
| Cage's Material: | Ca Brass |
| Guarantee: | One Year |
| Rolling Body: | Roller Bearings |
| The Number Of Rows: | Double |
| Outer Dimension: | Small and Medium-Sized (',60-115mm) |
| Material: | Bearing Steel |
| Load Direction: | Radial Bearing |
| Separated: | Separated |
| Packaging Details: | 1)Neutral package & wooden package 2)Carton package+pallet 3)Wooden package+pallet 4)Accroding to the customer's requirments customized packaging |
| Delivery Detail: | within 7~20 working days after receiving payment |
product description

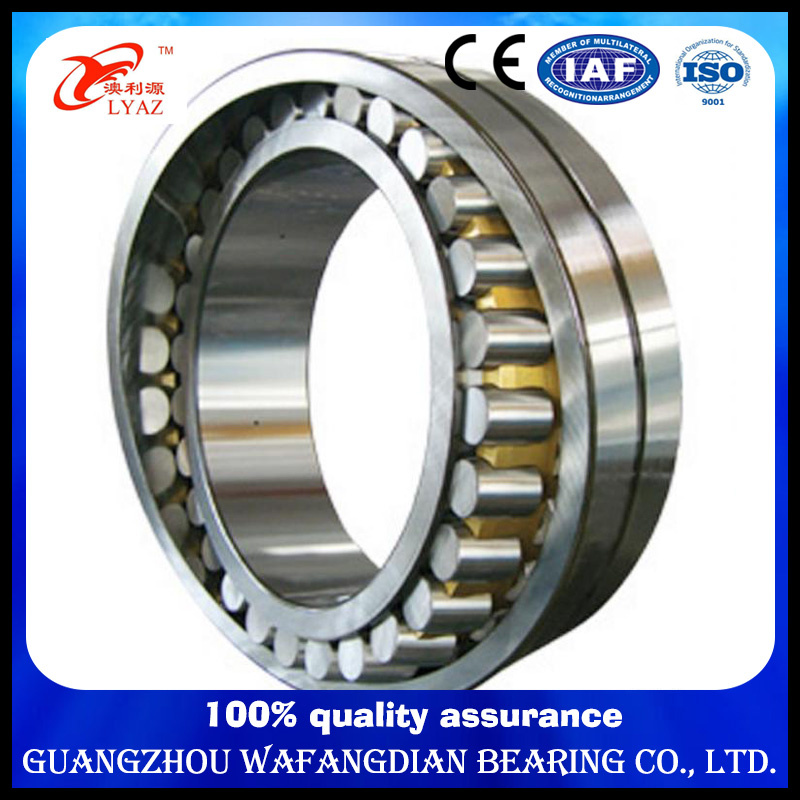

Type | spherical roller bearing |
Material | Chrome Steel GCR15 |
Model Number | 22210 22210K |
Brand | LYAZ NSK NTN KOYO |
Cage | copper Cage |
Precision Grade | P0 P6 P5 P4 P2 |
Seal Type | ZZ 2RS OPEN |
Service | OEM Customized Services |
Feature | Low Noise. Long Life .high |
Application | Auto, tractor ,machine tool, electric machine, water pump, agricultural machinery and textile machinery |
Stock series
Spherical roller bearings |
23022 series | 23022 23024 23026 23028 23030 23032 23034 23036 23038 23040 23044 23048 23052 23056 23060 23064 23068 23072 23076 23080 23084 23088 23092 23096 |
24024 series | 24024 24026 24028 24030 24032 24034 24036 24038 24040 24044 24048 24052 24056 24060 24064 24068 24072 | |
23218 series | 23218 23220 23222 23224 23226 23228 23230 23232 23234 23236 23238 23240 23244 23248 23252 23256 23260 23264 23280 23284 23296 | |
22208 series | 22208 22209 22210 22211 22212 22213 22214 22215 22216 22217 22218 22219 22220 22222 22224 22226 22228 22230 22232 22234 22236 22238 22240 22244 22248 22252 22256 22260 | |
22308 series | 22308 22309 22310 22311 22312 22313 22314 22315 22316 22317 22318 22319 22320 22322 22324 22326 22328 22330 22332 22334 22336 22338 22340 22344 22348 22352 22356 22372 22380 |
Technical parameters:
| Structure | l Aligning cylindrical bore roller bearing l Tapered bore spherical roller bearings lShaker special spherical roller bearings l Truck bearings lSingle row self-aligning roller bearings lDouble sealed spherical roller bearings (with steel sheet seals enhanced films, wear-resistant when used oil) | |||||||||||||||||
| Size range | LYAZ-aligning roller bearing bearing basic dimensions are listed in the data table size, Diameter size range: 20mm ~1020mm diameter size range: 52mm ~ 1980mm Width range: 18mm ~ 500 mm Product parameters and model suffix | |||||||||||||||||
| features | Whether under the inner wall and the use of cage can be divided into CA-and CC-type E-type and four MB type. CA-type self-aligning roller bearing inner ring with two small ribs across the middle without ribs, the cage structure to claw one solid cage, usually copper or carbon steel materials, the structure, bearing large, extra large bearings be used more; CC-type self-aligning roller bearings without inner ring of large and small ribs, roller "bootstrap" for the activities of the middle ring, cage frame for the steel stamping, rolling bearings of the structure sub length increases, increase the rated load, but also has high speed and low friction loss. | |||||||||||||||||
| External form change |
| |||||||||||||||||
| Competitive Advantage | Clean bearing steel - more durable life Optimized geometry of roller raceway - better carrying capacity Rolled superior surface finish - less friction, lower operating temperature |
Self-aligning Spherical roller bearing Parameter:
| Principal dimensions | Basic load ratings | Fatigue load limit | Speed ratings | Mass | Designation | ||||
| dynamic | static | Reference speed | Limiting speed | ||||||
| d | D | B | C | C0 | Pu | ||||
| mm | kN | kN | r/min | kg | YNR | ||||
| 85 | 150 | 36 | 291 | 325 | 34.5 | 4000 | 5600 | 2.6 | 22217 EK |
| 85 | 150 | 36 | 291 | 325 | 34.5 | 4000 | 5600 | 2.65 | 22217 E |
| 85 | 150 | 44 | 291 | 325 | 34.5 | - | 1100 | 3 | BS2-2217-2CS/VT143 |
| 85 | 150 | 44 | 291 | 325 | 34.5 | - | 1100 | 2.9 | BS2-2217-2CSK/VT143 |
| 85 | 180 | 41 | 331 | 375 | 39 | 3800 | 5300 | 5.15 | 21317 EK |
| 85 | 180 | 41 | 331 | 375 | 39 | 3800 | 5300 | 5.2 | 21317 E |
| 85 | 180 | 60 | 577 | 620 | 61 | 2800 | 3800 | 7.65 | 22317 E |
| 85 | 180 | 60 | 577 | 620 | 61 | 2800 | 3800 | 7.5 | 22317 EK |
| 85 | 180 | 60 | 577 | 620 | 61 | 2800 | 3800 | 7.65 | 22317 EJA/VA406 |
| 85 | 180 | 60 | 577 | 620 | 61 | 2800 | 3800 | 7.65 | 22317 EJA/VA405 |
| 85 | 180 | 60 | 577 | 620 | 61 | 2800 | 3800 | 7.5 | 22317 EKJA/VA405 |
| 90 | 160 | 40 | 331 | 375 | 39 | 3800 | 5300 | 3.35 | 22218 EK |
| 90 | 160 | 40 | 331 | 375 | 39 | 3800 | 5300 | 3.4 | 22218 E |
| 90 | 160 | 48 | 331 | 375 | 39 | - | 1000 | 3.7 | BS2-2218-2CS/VT143 |
| 90 | 160 | 48 | 331 | 375 | 39 | - | 1000 | 3.6 | BS2-2218-2CSK/VT143 |
| 90 | 160 | 52 | 372 | 440 | 48 | 2800 | 3800 | 4.5 | 23218 CCK/W33 |
| 90 | 160 | 52 | 372 | 440 | 48 | 2800 | 3800 | 4.65 | 23218 CC/W33 |
| 90 | 190 | 43 | 393 | 450 | 46.5 | 3600 | 4800 | 6.1 | 21318 E |
| 90 | 190 | 43 | 393 | 450 | 46.5 | 3600 | 4800 | 6 | 21318 EK |
| 90 | 190 | 64 | 637 | 695 | 67 | 2600 | 3600 | 8.85 | 22318 EK |
| 90 | 190 | 64 | 637 | 695 | 67 | 2600 | 3600 | 9.05 | 22318 EJA/VA405 |
| 90 | 190 | 64 | 637 | 695 | 67 | 2600 | 3600 | 9.05 | 22318 E |
| 90 | 190 | 64 | 637 | 695 | 67 | 2600 | 3600 | 8.85 | 22318 EKJA/VA405 |
| 95 | 170 | 43 | 393 | 450 | 46.5 | 3600 | 4800 | 4.15 | 22219 E |
| 95 | 170 | 43 | 393 | 450 | 46.5 | 3600 | 4800 | 4.05 | 22219 EK |
| 95 | 200 | 45 | 433 | 490 | 49 | 3400 | 4500 | 6.95 | 21319 EK |
| 95 | 200 | 45 | 433 | 490 | 49 | 3400 | 4500 | 7.05 | 21319 E |
| 95 | 200 | 67 | 699 | 765 | 73.5 | 2600 | 3400 | 10.5 | 22319 E |
| 95 | 200 | 67 | 699 | 765 | 73.5 | 2600 | 3400 | 10.5 | 22319 EK |
| 95 | 200 | 67 | 699 | 765 | 73.5 | 2600 | 3400 | 10.5 | 22319 EJA/VA405 |
| 95 | 200 | 67 | 699 | 765 | 73.5 | 2600 | 3400 | 10.5 | 22319 EKJA/VA405 |
Above parameter are for reference only,other size or model you can contact us directly.
1. By Express: DHL, FEDEX, UPS, TNT, SF EXPRESS and EMS.
2. By Air: We can ship from Shandong, Guangzhou etc.
3. By Sea: We can offer you FOB Qingdao.
4. We can also send bearings to your forwarder or agent in China, who can arrange shipment for you.
Company Information
Our factory has been founded for around 30 years, We are a professional manufacturer of ball bearings and roller bearings, including deep groove ball bearing, self-aligning bearing, cylindrical roller bearing, tapered roller bearings, with our good team work and hard working of skillful staffs and our professional engineers, we got very good reputation in the world market, especially in Mid-eastern countries. Thanks for every customer's support and trust, our company hope to establish mutual benefit and development business relations with you!
If you are interested in our products deep groove ball bearing, welcome to contact us for more detailed information,
Your inquiry related to our product & price will be replied within 24hoursWell-trained & experienced staff are to answer all your inquiries.OEM & ODM projects are highly welcomed. We have strong R&M team here to help.Free samples availableThe professional Logistic Center serviceTechnical support after saleAny other reasonable requirements.
