| Prod Model: |
SV16PZ Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Hydraulic Pipe Bending Machine |
| Output: |
10-30ton |
| Bending Range: |
1/2''-6'' |
| Pressure: |
700 Bar |
| Molds Included: |
6-10 Pairs |
| Weight: |
13.1-32.6kg |
| Standard Configuration: |
Electric Pump |
| Cylinder Stroke: |
250-300mm |
| Cylinder Oil Tank Capacity: |
375-980cm3 |
| Delivery: |
20 Working Days |
| Application: |
Machinery & Hardware |
| Type For Cutting Machine: |
Hydraulic Cutting Machine |
| Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
| Type For Pipe And Tube Bending Machine: |
Horizontal Hydraulic Pipe Bender |
Product Description

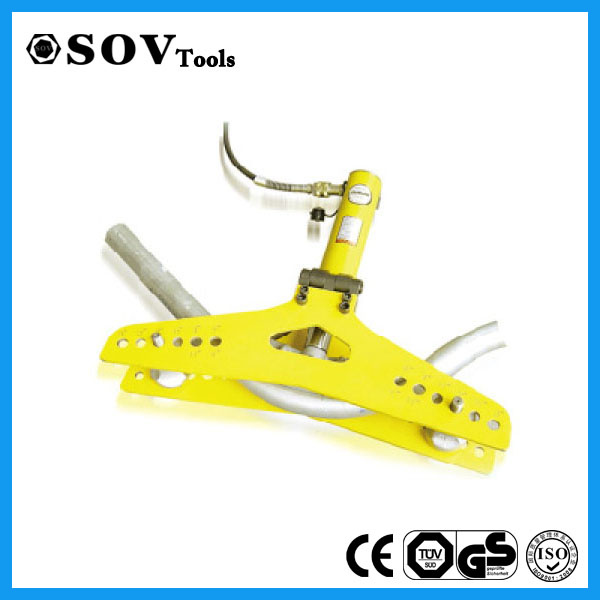

CE $ ISO Certificated Portable Integrated Hydraulic Pipe Bender
Product Features
1. Suitable for water pipes, conduit tubes, gas pipes and high-thickness steel pipes with maximum bending angle of 90 degrees;
2. One-step forming of 1/2-2 inch pipes; 2-6 inch pipes need to be moved and then bent;
3. Hard chrome plated cylinder piston rod and sprayed pipe bender;
4. Adopt aluminum alloy bending mold for portable use.
Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.
Product Specifications
| Model | Cylinder Tonnage
(ton) | Elbow Range | Molds Contained | Cylinder Stroke
(mm) | Oil Capacity
(cm³) | Standard Power Source | Pressure
(Bar) | Weight
(kg) |
| SV16PZ10 | 10 | 1/2"-2" | 6 Pairs | 250 | 375 | Electric pump | 700 | 18 |
| SV16PZ20 | 20 | 1/2"-3" | 8 Pairs | 270 | 750 | Electric pump | 700 | 40 |
| SV16PZ30 | 30 | 1/2"-6" | 10 Pairs | 300 | 980 | Electric pump | 700 | 86 |
Packaging Details
1. Outside packaging: standard export wooden packing;
2. Inner packaging: stretch Film;
3. Customized packaging acceptable.
Shipping
1. Small quantity: by international exress, such as DHL, TNT, FEDEX, UPS, etc. depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: by sea transportation. Goods will arrive in 30~45 days, according to the diatance.
Product Application
Our products are widely used all over the world, especially in Papermaking, Metallurgy, Petrification, Bridge, Construction, Electricity, Shipping, etc.
Our Service
1. 24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.
Company Information
SOV Hydraulic Technoloy (Shanghai) Co., Ltd. is a manufacturer engaged in designing and manufacturing hydraulic cylinders , synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.
