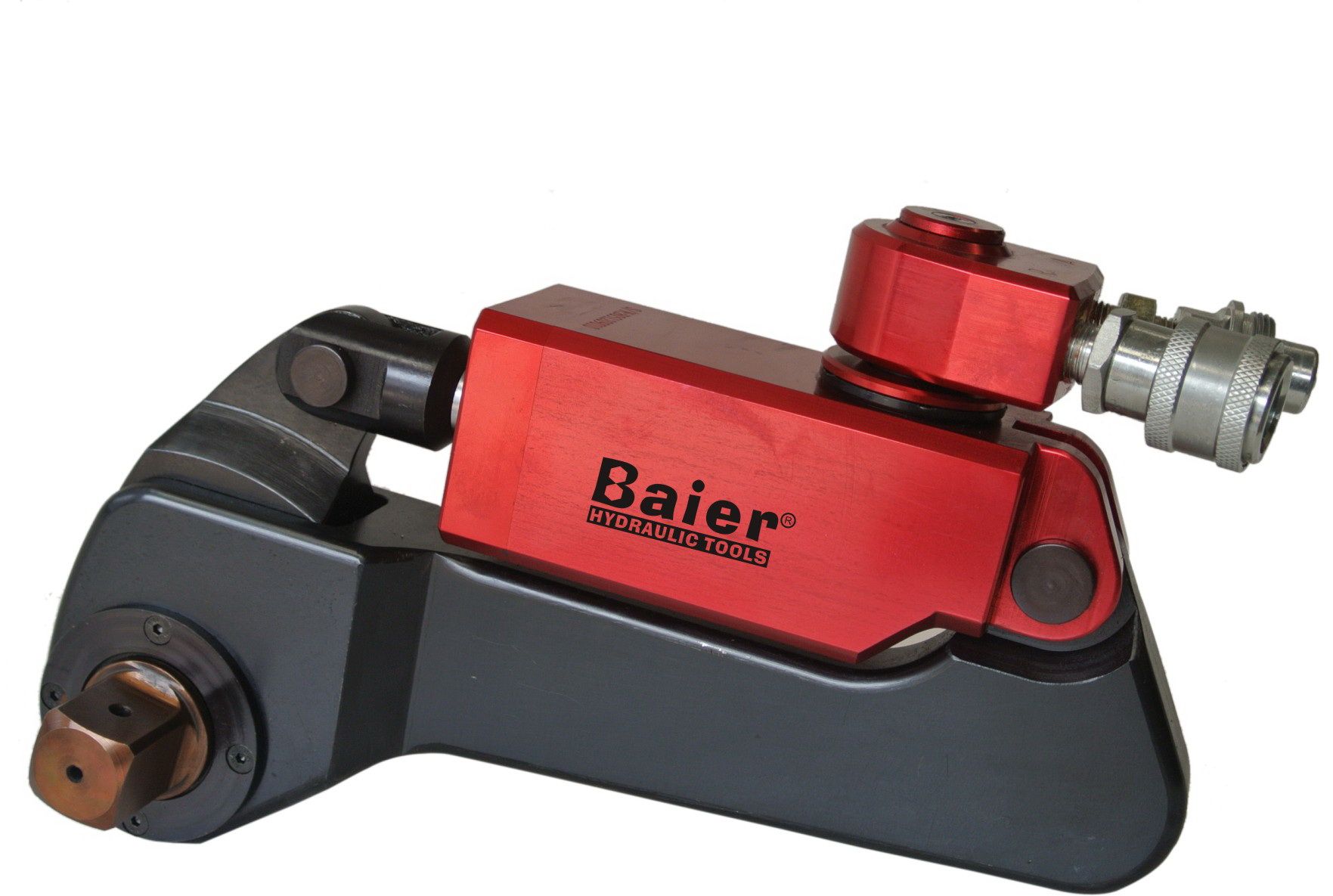

Square Drive Alloy High-Strength Hydraulic Torque Wrench
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Description
Specification:
1.Aluminum titanium alloy body, high strength, high toughness2.The newly anti loose joints.3.The maximum working pressure is 70Mpa, the accuracy can reach + 3%4.The 360 * 180 degrees or 360 * 360 DEG rotary tubing joints are available, without space restrictions5.directly work on the torque nut, more accurate, more portable6.Integrated design of extended arm , to enhance the reliability | Model | RTF02 | RTF04 | RTF08 | RTF14 | RTF30 |
| MAX Torque(Nm) | 2418 | 6476 | 11778 | 18525 | 44599 |
| MIN Torque(Nm) | 242 | 648 | 1180 | 1858 | 4462 |
| Bolt size(mm) | 19-60 | 34-80 | 41-105 | 50-117 | 110-175 |
| Weight (kg) | 2.7 | 6.6 | 11.6 | 17.2 | 41.5 |
| L(mm) | 196 | 246 | 302 | 362 | 443 |
| H1(mm) | 129 | 188 | 218 | 239 | 318 |
| H2(mm) | 105 | 146 | 179 | 203 | 286 |
| W1(mm) | 32 | 42 | 53 | 64 | 85 |
| W2(mm) | 51 | 66 | 83 | 99 | 131 |
Established in 2009, BAIER Hydraulic Power(Wuhan) Co., Ltd. is an professional leading manufacturer of hydraulic tools in China. Such as hydraulic torque wrench, hydraulic cylinders, hydraulic nut splitter, hydraulic gear pullers, hyraulic pumps, etc. Our products have been widely used in petrochemical, cement, shipbuilding, steel plant, and heavy constructions areas, etc.Besides, we have gained CE and ISO9001 certificates. Our Factory:

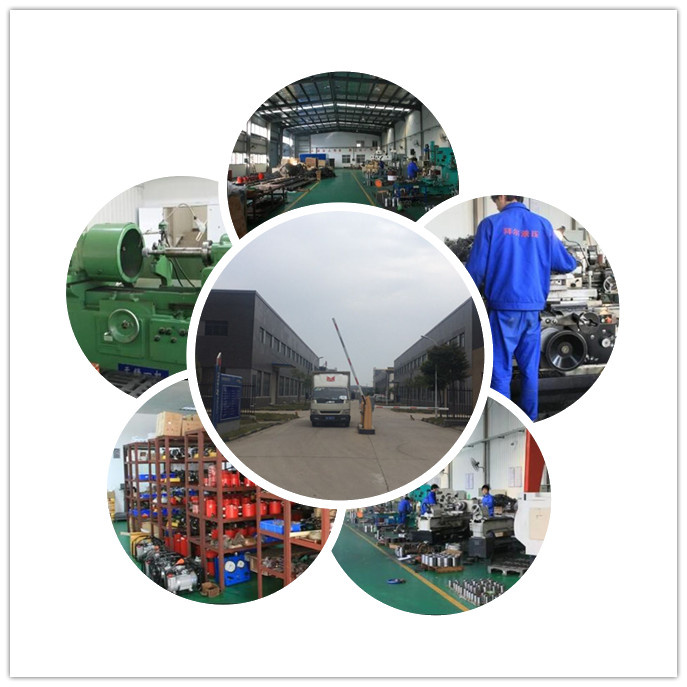

We has established an factory base covering a gross area of 8200 square meters in Qingshan District, Wuhan City, responsible for manufacturing.

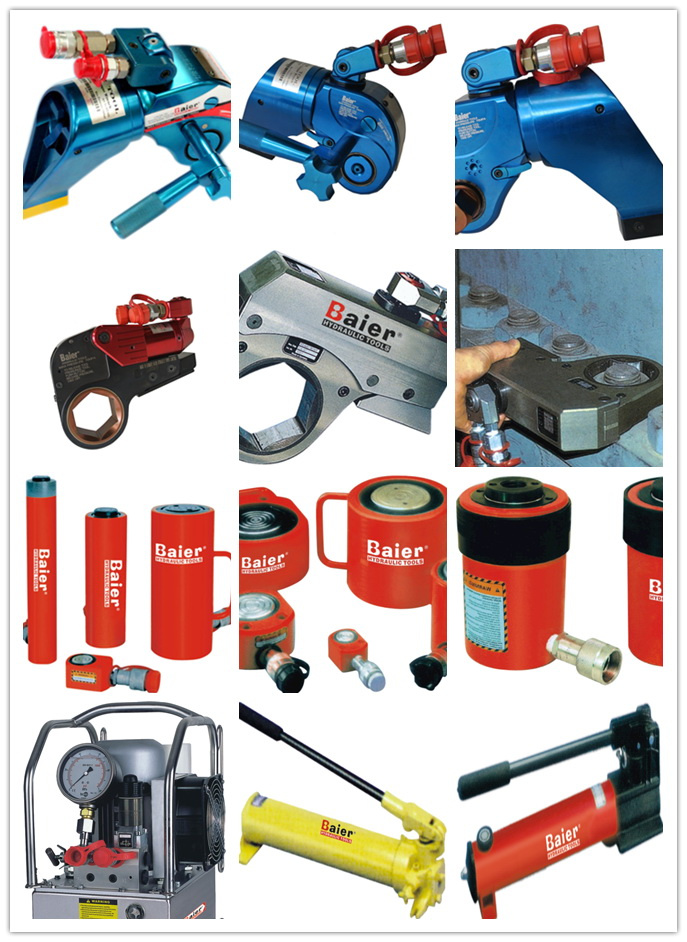

Our main product category includes:
Hydraulic cylinders and jacks
Hydraulic bolting tools such as hydraulic torque wrench
Hydraulic pumps
Hydraulic bolt tensioners, nut splitters.
Our Clients:
Our clients includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation.
Thanks for your time!
Established in 2009, BAIER Hydraulic Power(Wuhan) Co., Ltd. is an professional leading manufacturer of hydraulic tools in China. Such as hydraulic torque wrench, hydraulic cylinders, hydraulic nut splitter, hydraulic gear pullers, hyraulic pumps, etc.
Our products have been widely sold to Europe, South-east Asia and South Africa, and have got high appreciation and trust from all our customers. Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained ISO9001 certificates.
We has established a factory base covering a gross area of 8200 square meters in Qingshan District, Wuhan City. Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our factory has been approved by ISO9001: 2008. Our products have been widely used in petrochemical, cement, shipbuilding, steel plant, and heavy constructions areas, etc. Because our products are widely accepted and approved by our clients in China, we are planning to explore the oversea market by our high quality products and service.
