| Price: | US $ 7000-30000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | WRTJF6 500-250G |
|---|---|
| Type: | Rip Saw |
| Layout: | Horizontal |
| Controlling Mode: | Hydraulic Semi-automatic |
| Automatic Grade: | Automatic |
| Precision: | Precision |
| Certification: | ISO |

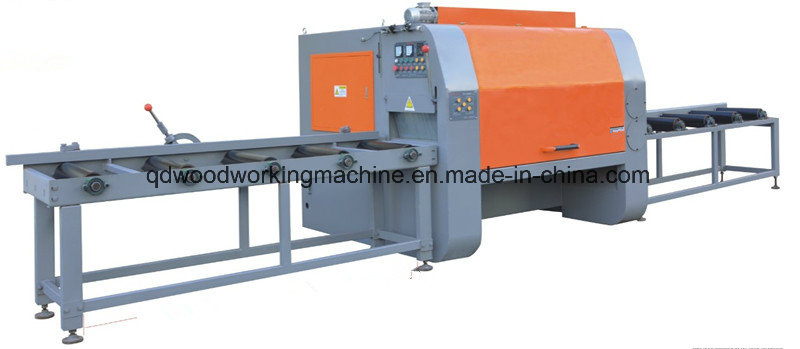

Suitable for big square timber woods processing
Main shaft :the main shaft is made of special alloy steel material ,after tempering ,chromium plated ,dynamic balance processing ,smooth operation ,high precision ,wear resistant rust .
Shaft tube :shaft tube is made of high quantity iron material ,good wear resistance ,high heat resistance ,good stability inflexible .
Bearing :choose international famous brand ,clean heating assembly ,high flexibility of the spindle ,long service life .
Case :main frame chassis using high quantity steel plate ,special welding process ,the cabinet thick stable performance .the host chassis using the world top
Saw blade :high quality imported saw blades,heat resistant ,wear resistant ,inflexible
Efficiency :50-80 cubes/day
1.The max cutting diameter can reach 600mm
2.the continuous cutting method of multi blade saw machine are faster and the efficiency is 5-6times than band saw machine .
3.the timber surface which cut by multi blade saw machine is flat and smooth ,no need planning .the timber surface cut by band saw machine is rough ,nonstandard size ,still need secondary planning ,two times sawing consumption .
4.easy operation and good management .no need experts with high salary .the entire
5.it is easy to change saw blade and cutting specification
gear reduction unit
Infrared calibration

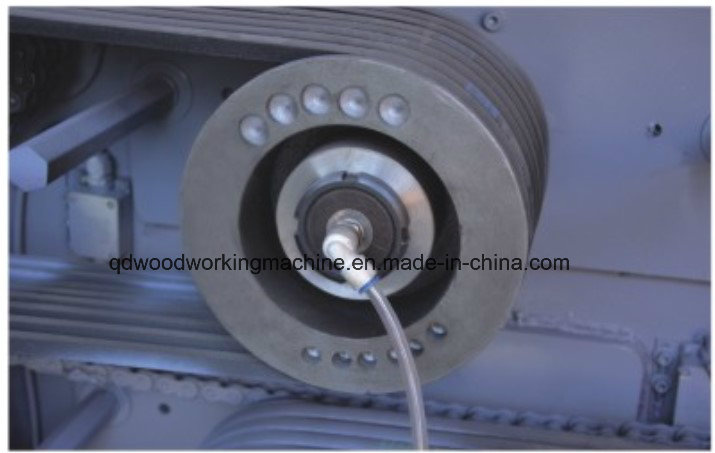

Main shaft rear water spray

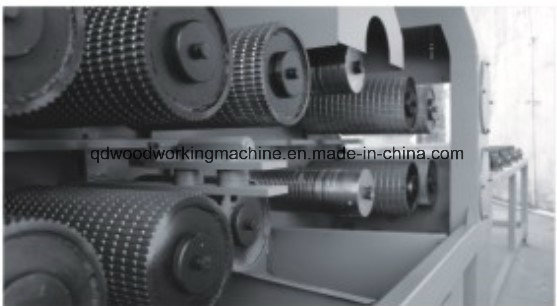

Feed roller

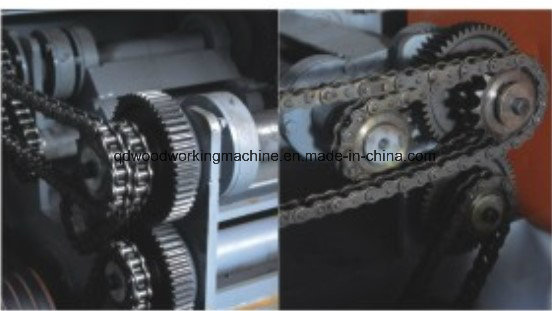

chain and gear

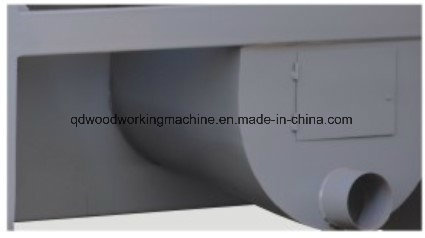

Dust collecting device
| Model | |
| Min width | 130mm |
| Max width | 500mm |
| Min height | 130mm |
| Max height | 250mm |
| Min length | 1000mm |
| Max length | 4000mm |
| Total power | 75kw+75kw |
| Feed speed | Infinitely adjustable speed |
| Overall dimension | 2262*2016*1680mm |
| Weight | 3230kg |
